ABB 1SVR730700R0200 Thermistor motor protection relay - CE
Part Number: 1SVR730700R0200
Quick Summary
ABB 1SVR730700R0200 thermistor motor protection relay provides sensor-based protection for motors in automated drive systems. This device helps reduce unplanned downtime by detecting overheating through PTC monitoring and triggering a controlled shutdown before damage occurs. It carries CE conformity, UL/CSA approvals, and UKCA declarations, along with RoHS and REACH compliance, ensuring regulatory readiness across regions. Designed for 24 V control circuits and easy DIN-rail installation, it streamlines wiring, improves reliability, and simplifies maintenance for OEMs and service teams alike. In practice, it integrates seamlessly with ABB and third-party drives, delivering safer motor operation and clearer fault reporting for better overall equipment effectiveness.
Product Information
Extended Description

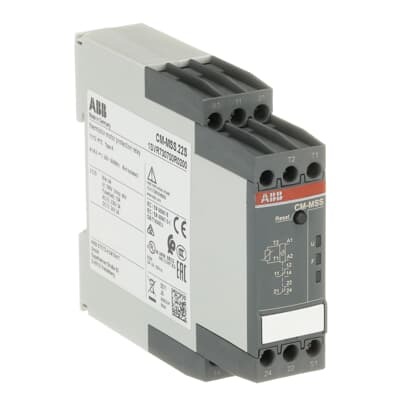

1SVR730700R0200 ABB: The CM-MSS.22S belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 24 V AC/DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The relay can be reset automatically, manually or remotely after the failure has been removed. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Country of Origin
Germany (DE)
Lead Time
56 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
EAN
4013614496714
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-MSS.22S/P and CM-MSS.23S/P with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-MSS Thermistor motor protection relays | Installation instructions - CM-MSS Thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.132 kg
Function
1 sensor circuit | Auto | manual or remote reset
Rated Control Supply Voltage (Us)
24 V AC/DC
Rated Operational Voltage
Auxiliary Circuit 250 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
2 c/o (SPDT) contacts
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Output Circuit 1 / Output Circuit 2 4 kV | Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 300 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Output Circuit 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 10 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible 1x 0.5 ... 2.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 1x 0.5 ... 4 mm² | Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
8 mm
Recommended Screw Driver
0.8 x 4 | 4.5 | Pozidriv 1
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60947-5-1 | IEC/EN 60947-8 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 1x 18-14 AWG | Flexible 2x 18-16 AWG | Rigid 1x 20-12 AWG | Rigid 2x 20-14 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
991bb91c-7b72-4a3e-bfe2-06d4dad60102 Germany (DE)
Simplified SCIP
587edf96-5c9a-4865-b9a0-c7922442eb66 Germany (DE) | 145c443d-b1bc-46ac-8d02-efa5a45ccdbe France (FR) | fd3e6849-7017-4ae8-b70d-8d6488d64373 Hungary (HU) | a2c0e89b-8cc1-4ed1-8acb-c9920272a4c4 Belgium (BE) | 91fbac72-341b-4524-a1b3-2db479df9529 Portugal (PT) | 3c9ff200-d6e6-4751-83b9-9ab26d7714cd Germany (DE) | ac6d8327-ccb6-4e90-9b11-3e63e85863a5 Sweden (SE) | 72f013c0-c347-42c2-8dd5-44d84797d0b9 France (FR) | 0e81272b-8adc-40cf-a8e6-b3316ee51f17 Spain (ES) | 629430e3-e0f8-43fd-95c2-4dcfaf6cb6ca Estonia (EE) | dabb2ed6-b9d6-4479-82ce-6212d3b69f6b Sweden (SE) | 516b31cf-e802-4bb9-9a5e-71a982a3e0f4 Poland (PL) | 1c617828-a340-4b2b-bd42-c862fdb4d95a Poland (PL) | 17610ba6-92d5-4ca4-831f-d64bba3e9f96 Norway (NO) | f421b743-52ad-40e4-8595-8f96f2abb371 Croatia (HR) | 14da33f5-72ed-4e04-aefa-82badad7705a Czech Republic (CZ) | 9db619e0-bda7-4a72-82c7-2bfe78f5f0d0 Germany (DE) | f4f25c91-ea84-475e-9e0e-64f43c17b911 Poland (PL) | c5af4d47-57e8-492e-8f59-dea76a3f20b1 Denmark (DK) | c6452b92-76e3-46e5-aecb-2a50bbe65fed Italy (IT) | 4a99599d-8250-4824-ae58-dbb675fec96f Germany (DE) | cf3e49c8-92b6-4676-b70d-f0ba790768ec Netherlands (NL) | 61282ef0-62a3-4e5c-9e1d-1a9124ea2239 Greece (GR) | 5eb83f2a-e59f-41c8-a7b9-ca530e26e357 Hungary (HU) | 7bf31848-ae57-4c8a-a036-392de82e8442 Bulgaria (BG) | 910d2c09-5244-49f8-8781-f382047ef676 Finland (FI) | c6ffeed5-2841-4645-a27f-ebb92c59efd5 Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-40837-UL
CCC Certificate
CCC Certificate - Measuring and Monitoring Relays CM-PFS.x, CM-MSS.xxx, CM-MSS, CM-ENS, CM-ENS up/down
CQC Certificate
CQC Certificate, Measuring and Monitoring Relays, CM-PFS.x, CM-PFS, CM-MSS.xyz, CM-ENS, CM-ENS up/down, Made in Germany
cULus Certificate
cULus508_20140912-E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Measuring and Monitoring Relays, CM-PFS.x, CM-PFS, CM-MSS.xyz, CM-ENS, CM-ENS up/down, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-MSS.xxx thermistor motor protection relay
Declaration of Conformity - UKCA
UK Declaration of conformity - CM-MSS.xxx thermistor motor protection relay
DNV GL Certificate
DNV GL Certificate Thermistor motor protection relays
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.155 kg
Package Level 1 EAN
4013614496714
Object Classification Code
B
ETIM 7
EC002568 - Relay for thermistor protection (PTC)
ETIM 8
EC002568 - Relay for thermistor protection (PTC)
ETIM 9
EC002568 - Relay for thermistor protection (PTC)
eClass
V11.0 : 27371503
UNSPSC
39122331
E-Number (Finland)
2712502
E-Number (Norway)
4185881
E-Number (Sweden)
3860724
Feature → Business Impact → Application: The CM-MSS.22S/1SVR730700R0200 monitors a single PTC sensor circuit and provides automatic, manual, or remote reset, reducing mean time to repair by catching overheating early and enabling proactive maintenance in critical motors. This translates to lower downtime costs and longer motor life in conveyors, presses, and packaging lines. Feature → Business Impact → Application: 24 V AC/DC control supply with 2 SPDT outputs rated to 250 V AC and 4 A supports straightforward integration with existing control circuits, minimizing rewiring and simplifying fault isolation in automated lines. Feature → Business Impact → Application: Screw terminal connections with flexible and rigid wire ranges streamline installation, improve electrical safety, and reduce commissioning time during machine retrofits or new line builds. Feature → Business Impact → Application: DIN rail mounting (TH35) and compact footprint enable space-efficient panel design, enabling scalable protection across multi-axis drives and compact machine cabinets. Feature → Business Impact → Application: Robust electrical and environmental specs—IP50 housing, -25 to +60 °C operation, 2000 m altitude without derating—ensure reliable protection in harsh manufacturing floors, reducing maintenance cycles and increasing uptime. Feature → Business Impact → Application: Comprehensive certifications and datasheets (CE, UL/CSA, UKCA, RoHS/REACH) provide audit-ready compliance and accelerated procurement for regulated industries such as food & beverage, packaging, and material handling.
