ABB 1SVR730740R0100 Temperature monitoring relay - IP50
Part Number: 1SVR730740R0100
Quick Summary
Temperature monitoring relay is a compact ABB CM-TCS.11S device for safeguarding industrial equipment with PT100 temperature sensing. Many users contend with undetected temperature excursions and complex wiring in legacy relays. The CM-TCS.11S delivers reliable overtemperature and undertemperature monitoring with adjustable thresholds and a 2-pole SPDT output, backed by CE, UL/CSA, and EN/IEC 61000-series certifications for safety and EMI resilience. Mount it on a DIN rail with screw terminals for fast, secure installation in control panels. Its compact form, 24-240 V AC/DC supply, and sealable cover option reduce panel space, simplify wiring, and support scalable, compliant temperature monitoring across process and machine applications.
Product Information
Extended Description

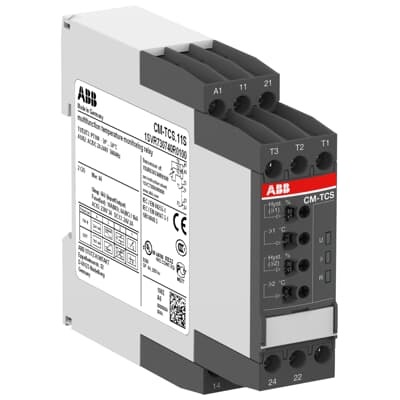

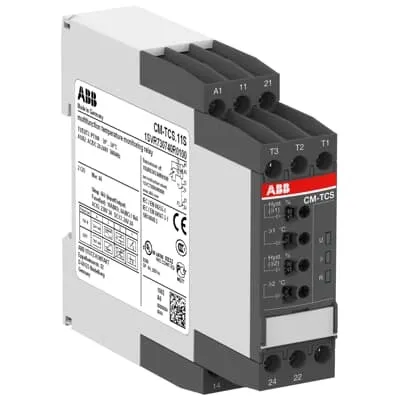

1SVR730740R0100 ABB: The CM-TCS.11S relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.11S is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.11S monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is -50..+50°C. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
EAN
4016779852715
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-TCS.xxx Temperature monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-TCS.11, CM-TCS.12, CM-TCS.13, CM-TCS.21, CM-TCS.22, and CM-TCS.23 Temperature monitoring relays | Installation instructions - CM-TCS.11, CM-TCS.12, CM-TCS.13, CM-TCS.21, CM-TCS.22, and CM-TCS.23 Temperature monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.151 kg
Function
Overtemperature monitoring | Undertemperature monitoring | Over- and undertemperature monitoring
Measuring Range
-50 ... 50 °C
Sensor Type
PT100
Rated Control Supply Voltage (Us)
24 ... 240 V AC/DC
Rated Frequency (f)
Supply Circuit 50 Hz | Supply Circuit 60 Hz | Supply Circuit DC
Output
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 4 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 4 kV | Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 300 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Measuring Circuit 300 V | Supply Circuit / Output Circuit 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 1x 0.5 ... 2.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 1x 0.5 ... 4 mm² | Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
8 mm
Recommended Screw Driver
0.8 x 4 | 4.5 | Pozidriv 1
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.60947-5-1 | IEC/EN 60255-26 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 63000 | UL 60947-5-1 | IEC/EN 60947-5-1
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 1x 18-14 AWG | Flexible 2x 18-16 AWG | Rigid 1x 20-12 AWG | Rigid 2x 20-14 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -40 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
bccff289-460c-46f4-bc64-05a95e233fd8 Germany (DE)
Simplified SCIP
9e5f76bf-7d60-4601-8c8e-f009b7647abc Germany (DE) | f3f9f4bf-0fb0-43d3-ae92-4caa0dd0153a Poland (PL) | 77d4ad7d-a769-40a5-a15b-977a87725198 Norway (NO) | 3970ab5b-3e71-483a-98a7-6d1ff303c228 Finland (FI) | 4fccd7ec-5986-42d9-b098-3a2f59da3529 Belgium (BE) | f51e504e-9400-4e78-899f-277567a0aabb Italy (IT) | 33f46781-0446-4df0-9cc8-e030cae4f942 Portugal (PT) | 6fb247a7-8469-43d4-a0ab-c6f1f29a3892 Greece (GR) | e0bed75b-9999-4f56-a1b4-55a66510fbdd Bulgaria (BG) | 57063e28-3ad9-4a89-b4b0-7515501f20d2 Sweden (SE) | 108dc52d-75ac-47d5-af2a-1f5db73d813c Poland (PL) | c776a711-d4e2-4a15-89a7-f628e56c2dac France (FR) | 59c9bfd6-a21b-4c7b-92fa-34d5cffc6682 Sweden (SE) | 86a02d85-e9e0-4a5b-808d-515ca41b22d1 Germany (DE) | e5d9a100-bfcd-45d3-9099-1e598fac0051 Estonia (EE) | 9ebb4301-879d-4a79-a373-ae719694907f Netherlands (NL) | 1bd6879c-5d81-4ff7-958e-6e89993d6719 Hungary (HU) | d44fa458-b108-4704-934c-bd8eaec2ddb5 Poland (PL) | 45c69b3f-3c24-4374-acc5-ff97bb2f5ad9 Hungary (HU) | 00c25b51-84ab-4276-8e86-ffff204af083 France (FR) | 34133499-c0b2-4846-bd53-9d16c7e80404 Croatia (HR) | eb960577-af05-4b28-b697-d464b83bd375 Czech Republic (CZ) | bcb41717-8e69-4caa-95fd-c07afd18cb78 Spain (ES) | 69482607-bffb-4e00-885b-d3b017c41ffb Germany (DE) | 9ea51e36-aab6-4c01-abd6-c916ccf4b460 Denmark (DK) | b763729e-faf5-4ead-aac6-030bb408b418 Germany (DE) | 25d41399-d339-47ae-9fc5-4a11ecb2e3d3 Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CCC Certificate
CCC Certificate - Temperature monitoring relays CM-TCS.xxxx and CM-TCN.xxx
CQC Certificate
CQC Certificate, Relays, CM-SRS.., CM-SFS.., CM-ESS..,CM-EFS.., CM-TCS.., Made in Germany
cULus Certificate
cULus60947-5-1_20170922-E140448
Declaration of Conformity - CCC
CCC Certificate, Relays, CM-SRS.., CM-SFS.., CM-ESS..,CM-EFS.., CM-TCS.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-TCS.xxx Temperature monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-TCS.xxx Temperature monitoring relays
DNV GL Certificate
DNV GL Certificate - CM-TCS.xxx Temperature monitoring relays with screw or push-in terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.176 kg
Package Level 1 EAN
4016779852715
Object Classification Code
B
ETIM 7
EC001446 - Temperature monitoring relay
ETIM 8
EC001446 - Temperature monitoring relay
ETIM 9
EC001446 - Temperature monitoring relay
eClass
V11.0 : 27371810
UNSPSC
39122331
E-Number (Finland)
2712322
E-Number (Norway)
4187808
E-Number (Sweden)
3860663
