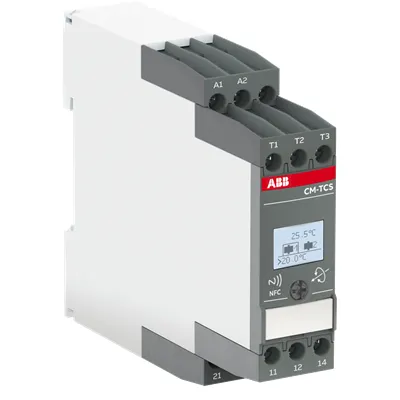

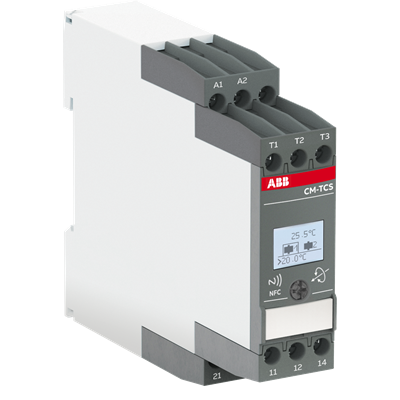

ABB 1SVR730740R0110 Temp Monitoring Relay - CE/UL
Part Number: 1SVR730740R0110
Quick Summary
CM-TCS.011S temperature monitoring relay detects over- and under-temperature to protect industrial equipment in control panels. It accepts 24-240 V AC/DC, powers two SPDT outputs, and reads from PT100, PT1000, PTC, NTC sensors or a bimetal switch. A front LCD shows real-time temperature and maintenance data, while NFC enables quick setup, even with no power. Unplanned temperature excursions can cause downtime, shortened component life, and unpredictable process variation; this module helps you prevent that with deterministic alarms and proactive control. Certifications include CE and UL60947-5-1 with DoC/UL listings, plus UKCA and CCC statements, ensuring compliance across global sites. The device also supports EPiC app configuration and DIN rail mounting, delivering faster integration and reduced installation costs with reliable factory testing.
Product Information
Extended Description
1SVR730740R0110 ABB: The CM-TCS.011S is an innovative temperature monitoring relay from the CM temperature monitors range. This monitoring relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.011S is able to measure temperatures with one sensor circuit using different type of sensors PT100, PT1000, PTC or NTC. The LCD at the front of the relay shows the currently measured value and maintenance data. The CM-TCS.011S can be configured exactly as you need either via a black-lit LCD or smartphone app. Parametrization and configuration are just one touch away with the ABB EPiC app – even in a non-powered state – reducing installation time by 80%. The device offers screw connection technology with double-chamber cage connection terminals.
EAN
4013614553110
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog Smart temperature monitoring relays CM-TCN & CM-TCS
Instructions and Manuals
Installation instructions - CM-TCS.011 Temperature monitoring relay | User manual of smart temperature monitoring relay CM-TCS.011
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.152 kg
Function
Overtemperature monitoring | Undertemperature monitoring | Over- and undertemperature monitoring
Measuring Range
-200 ... 850 °C
Sensor Type
PT100; PT1000; PTC; NTC; bimetal switch
Rated Control Supply Voltage (Us)
24 ... 240 V AC/DC
Rated Frequency (f)
Supply Circuit 50 Hz | Supply Circuit 60 Hz | Supply Circuit DC Hz
Output
2 x 1 c/o contacts, configurable
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
12 V | 100 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 6 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 6 kV | Supply Circuit / Output Circuit 6 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Measuring Circuit 600 V | Supply Circuit / Output Circuit 600 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
2
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 1x 0.5 ... 2.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 1x 0.5 ... 4 mm² | Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
8 mm
Recommended Screw Driver
0.8 x 4 | 4.5 | Pozidriv 1
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Connecting Capacity UL/CSA
Flexible 1x 18-14 AWG | Flexible 2x 18-16 AWG | Rigid 1x 20-12 AWG | Rigid 2x 20-14 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CQC Certificate
CQC Certificate, Temperature Monitoring Relays, CM-TCS.xxxx, CM-TCN.xxx, Made in Germany
CSA Certificate
cUL60947-5-1 certificate CM-TCN.011x, CM-TCN.012x, CM-TCS.011x
Declaration of Conformity - CCC
CCC Declaration of Conformity, Temperature Monitoring Relays, CM-TCS.xxxx, CM-TCN.xxx, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-TCS.011x Temperature monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-TCS.011x Temperature monitoring relays
UL Certificate
UL60947-5-1 certificate CM-TCN.011x, CM-TCN.012x, CM-TCS.011x
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.172 kg
Package Level 1 EAN
4013614553110
Object Classification Code
B
ETIM 7
EC001446 - Temperature monitoring relay
ETIM 8
EC001446 - Temperature monitoring relay
ETIM 9
EC001446 - Temperature monitoring relay
eClass
V11.0 : 27371810
UNSPSC
39122331
The CM-TCS.011S temperature monitoring relay delivers precise over-temperature and undertemperature monitoring with two configurable SPDT outputs, enabling direct control of alarms or actuators and reducing spare parts needs. This translates to measurable downtime reduction and improved process stability in automation panels. PT100, PT1000, PTC, NTC sensors or a bimetal switch are supported, allowing seamless integration with existing sensor networks. A 24-240 V AC/DC supply simplifies procurement and wiring, while screw terminals and DIN rail mounting speed installation in control cabinets. The LCD display and NFC-enabled configuration via ABB EPiC app cut commissioning time and maintenance effort, improving TCO for OEMs and maintenance teams.
Get a Quick Quote for a ABB 1SVR730740R0110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR730740R0110?
Enquire Now
FAQs
The CM-TCS.011S mounts on standard TH35 DIN rails (TH35-15 or TH35-7.5) with screw-terminal connections for flexible wiring. Use the recommended tightening torque of 0.6 to 0.8 N·m and wire ferrule-ready terminals for reliable retention. The EPiC app supports quick setup, reducing on-site commissioning time.
Measuring range is -200 to 850 °C. Sensor options include PT100, PT1000, PTC, NTC and even a bimetal switch, enabling compatibility with existing sensor networks and ensuring precise threshold detection.
Yes. With two configurable SPDT outputs and robust insulation, it can trigger alarms, interlocks, or control signals for motors and processes. The compact form factor and DIN rail mounting make it ideal for control panels in automation environments.
The device carries CE declarations, UL60947-5-1 certification, and UKCA/CCC statements, ensuring compliance for global installations. It also lists DoC as part of the CE certification and UL product listings.
The LCD provides real-time data; NFC enables quick configuration, minimizing downtime. EPiC app integration shortens commissioning, while reliable temperature monitoring reduces unexpected maintenance costs and extends equipment life, delivering measurable total cost of ownership improvements.
