ABB 1SVR730850R0100 Liquid Level Monitoring Relay - CE UL
Part Number: 1SVR730850R0100
Quick Summary
Liquid level monitoring relay for conductive liquids, ABB CM-ENS.11S provides reliable pump protection in industrial tanks. Many facilities struggle with dry-running damage and overflow alarms that disrupt production; this device offers adjustable sensitivity from 5 to 100 kΩ and open-circuit sensing to reduce nuisance trips. It carries essential certifications such as CE and UL/CSA, with UKCA also supported, plus robust IP50 housing for reliability in damp factory environments. With DIN-rail mounting and screw-terminals, it delivers straightforward installation, lowers commissioning time, and ensures consistent monitoring across 24–240 V AC/DC control circuits. This combination supports safer operations, reduces maintenance costs, and enhances system uptime for critical process water and chemical handling applications.
Product Information
Extended Description

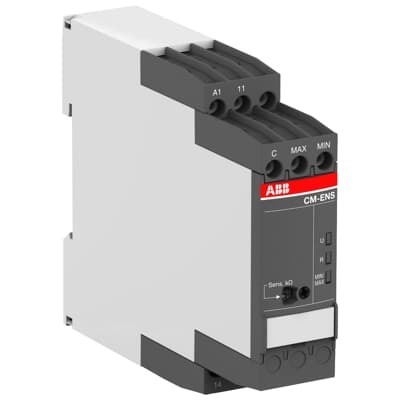

1SVR730850R0100 ABB: The CM-ENS.11S belongs to the CM liquid level monitoring relay range. It operates with a rated control supply voltage of 24 - 240 V AC/DC and has a 1 c/o (SPDT) output with contacts rated at 250 V / 4 A. It monitors liquid levels of conductive fluids and protects pumps against dry running or tanks against overflow and works according to the open-circuit principle. The sensitivity can be selected via front-face potentiometers. Several electrodes and a sealable transparent cover for protection against unauthorized changes are available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
EAN
4013614502934
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - Liquid level monitoring relays CM-ENS.1x
Instructions and Manuals
Instruction sheet - CM-ENS.xxx Liquid level monitoring relays | Installation instructions - CM-ENS.xxx Liquid level monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.124 kg
Function
Filling or draining monitoring
Number of Electrodes
3
Measuring Range
5 ... 100 kΩ
Rated Control Supply Voltage (Us)
24 ... 240 V AC/DC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
1 c/o (SPDT) contact
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
12 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 4 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 4 kV | Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 300 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Measuring Circuit 300 V | Supply Circuit / Output Circuit 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 1000000 cycle
Connecting Capacity
Flexible with Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 1x 0.5 ... 2.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 1x 0.5 ... 4 mm² | Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque
0.6 ... 0.8 N·m | Control Circuit 0.9 N·m | Main Circuit 1 N·m
Wire Stripping Length
8 mm | Main Circuit 10 mm
Recommended Screw Driver
0.8 x 4 | 4.5 | Pozidriv 1
Mounting Position
1 ... 5 | 1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 1x 18-14 AWG | Flexible 2x 18-16 AWG | Rigid 1x 20-12 AWG | Rigid 2x 20-14 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
4ba8788c-849d-4398-9b5b-a49a558758f3 Germany (DE)
Simplified SCIP
f0cfe18f-553d-4647-b6b6-e2f24549a7a9 Belgium (BE) | 2edfe2ec-ec32-439c-9eb0-0d22acd0d991 Germany (DE) | 090efef3-0fe0-4c77-8546-1660c9a22189 Finland (FI) | 49e236f7-62f3-4331-888c-91a0ff810cda Germany (DE) | fb67750a-2ebe-4411-a05f-ee75e51c00fe Norway (NO) | 2a091dc3-c6ba-4cb9-afab-0d00bc385e1a Poland (PL) | e7274378-6e04-4759-83dc-d87b17cc0891 Italy (IT) | a029d6cb-83be-4fd4-b5f7-e32b4504f1e2 Poland (PL) | ef6aad7b-2017-4f7c-87e4-39d7d87e6a37 Poland (PL) | f2c43e3d-773e-4db2-a9f9-97359ffe565e Denmark (DK) | 54aae020-7711-441e-88f8-0f1cbf34bbb5 Spain (ES) | ae5078f4-abee-4d3f-8e01-8478da97a3fc Germany (DE) | c1a7db82-aad7-481d-932b-b641a3f35f76 Sweden (SE) | 05e3b622-4ea4-49e1-975c-30b66d573bf1 Sweden (SE) | ab6b2277-2b1c-4e28-b46c-5e72bf4c91de France (FR) | afe38d37-5616-4cd3-ae8c-f044d1913451 France (FR) | 14ff2a23-8921-4cf6-9ecf-5e2c7b257870 Hungary (HU) | 2f6ca320-28dc-4ea7-8366-2c345355e4c7 Belgium (BE) | c7487365-b4e9-48c9-995e-bbe6627e6175 Bulgaria (BG) | d147c270-006d-4453-a677-69559269944a Portugal (PT) | 5e894537-d6b1-4d81-acfc-f989190cc093 Hungary (HU) | 3d37ab07-97ce-4280-93a8-96c1417067f2 Greece (GR) | 8f008e53-5bc8-4762-8648-96c863018818 Netherlands (NL) | 1e823c29-573f-4643-8e1d-3501d1892105 Germany (DE) | 62f059e9-4f18-40e0-92f9-a176451b2ba2 Czech Republic (CZ) | f2013fb5-ba48-42fd-9400-eaff505f4402 Croatia (HR) | 6c46ba48-192f-4acc-ab54-c55ec1540658 Estonia (EE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CQC Certificate
CQC Certificate, Liquid Level Monitoring Relays, CM-ENS.xxx, Made in Germany
cULus Certificate
cULus508_20150627-E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Liquid Level Monitoring Relays, CM-ENS.xxx, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-ENS.xxx Liquid level monitoring relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-ENS.xxx Liquid level monitoring relay
DNV GL Certificate
DNV GL Certificate - CM-ENS.xxx Liquid level monitoring relays
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.148 kg
Package Level 1 EAN
4013614502934
Object Classification Code
B
ETIM 7
EC001447 - (Fill) level monitoring relay
ETIM 8
EC001447 - (Fill) level monitoring relay
ETIM 9
EC001447 - (Fill) level monitoring relay
eClass
V11.0 : 27371813
UNSPSC
39122331
E-Number (Finland)
2712566
E-Number (Norway)
4189433
