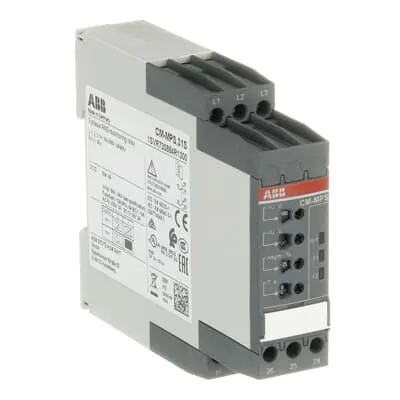

ABB CM-MPS.31S Three-phase Monitoring Relay - CE/UL
Part Number: 1SVR730884R1300
Quick Summary
CM-MPS.31S is a three-phase monitoring relay for protecting industrial power systems. Engineers often struggle with maintaining phase integrity in the face of voltage fluctuations and supply interruptions. This device carries CE and UL/CSA certifications and UL 508 listings, supporting compliance across global panels and partner ecosystems. In practice, it integrates with DIN rail mounting and screw-terminal wiring, delivering reliable phase protection with straightforward installation and scalable protection for motor drives and automation panels.
Product Information
Extended Description
1SVR730884R1300 ABB: The CM-MPS.31S is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 160-300 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable. Phase sequence monitoring as well as an ON or OFF tripping delay are selectable. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Lead Time
28 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
EAN
4016779851855
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-MPS.11, CM-MPS.31 Multifunctional three-phase monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-MPx, CM-PxS Three-phase monitoring relays | Installation instructions - CM-MPx, CM-PxS Three-phase monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.142 kg
Function
Phase failure detection | Phase sequence monitoring | Over- and undervoltage monitoring | Phase unbalance detection
Measuring Range
(L-L) 160 ... 300 V AC
Time Range
200 ms start-up delay | 0 s or 0.1 ... 30 s tripping delay (ON or OFF)
Rated Control Supply Voltage (Us)
(L-L) 160 ... 300 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
2 c/o (SPDT) contacts
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Input Circuit 6 kV | Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 1x 0.5 ... 2.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 1x 0.5 ... 4 mm² | Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
8 mm
Recommended Screw Driver
0.8 x 4 | 4.5 | Pozidriv 1
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 1x 18-14 AWG | Flexible 2x 18-16 AWG | Rigid 1x 20-12 AWG | Rigid 2x 20-14 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
161ecf46-bb4d-443c-a7bf-c90502f2ef75 Germany (DE)
Simplified SCIP
bbfabfb2-8954-4f0d-8a46-b2224af45180 Hungary (HU) | 278d1c84-99be-4e11-a323-dac6423b63be Belgium (BE) | d412280b-1bcc-4683-82b2-7773962793e3 Germany (DE) | 41a08d38-dfc4-47bb-82b4-0009fb31dd27 Germany (DE) | 03c9f87c-1a8b-48f6-842a-de1c87a0e7ca Poland (PL) | 9ddba312-e8b2-4a1e-bbac-548cefe8c4a4 Sweden (SE) | d397cca7-7a80-4119-8adb-230c8be8c1b5 Sweden (SE) | 350211ca-4e69-4524-83fe-c3de2192f4f1 France (FR) | e855af62-1384-476b-ae3c-34e8d6061fcc France (FR) | 1100768b-5109-4acd-839c-5fa8132f8e8a Spain (ES) | 18f87fa9-5eba-42ab-a9bf-0543ef83ba13 Estonia (EE) | 1beecda2-6c8d-44e7-b829-cc13f8043ec8 Poland (PL) | d4da78ed-36b5-4ec6-b160-515c0c1358ac Croatia (HR) | 05bda9cf-ea8a-4ca3-84bb-b3c6eb3f4390 Hungary (HU) | 9428c9e4-4bb8-456d-930b-1594a7d3d79e Greece (GR) | da72cb2d-71a7-4984-913f-ec6723b5e253 Netherlands (NL) | 4c490396-6d38-4a29-a8f7-d2b83bd6cbea Portugal (PT) | 06fbbf93-6e48-45ee-9af6-f0626a92ff78 Bulgaria (BG) | 78d3c375-82b1-4093-b714-9666361aa0de Italy (IT) | dbc417fc-64e1-47a8-8a84-78c092500052 Germany (DE) | bde7c891-8924-467c-b22c-dc406cb47819 Czech Republic (CZ) | afc39b73-4813-4415-887b-fe84fc7bc4a5 Norway (NO) | 25c7a810-5542-4658-a33f-ad18c464e92c Finland (FI) | 6cb0e026-d46b-493f-8f17-1f77a4b93775 Poland (PL) | 457a370e-0d3c-481b-ab65-3add7722ee7f Denmark (DK) | 55d03466-6a6b-41b3-a1ff-81f3bd269ded Germany (DE) | c1eed103-7242-4afe-ab9e-460677acb3b2 Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-27947-UL
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-UFS.., CM-MPN.., Made in Germany
cULus Certificate
cULus508_20120829-E140448
Declaration of Conformity - CCC
CCC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-MPN.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
DNV GL Certificate
DNV GL Certificate - CM-MPx.xxx, CM-PAS.xxx, CM-PSS.xxx,CM-PVS.xxx, and CM-PFS.x Three-phase monitoring relays with screw or push-in terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.167 kg
Package Level 1 EAN
4016779851855
Object Classification Code
B
ETIM 7
EC001441 - Phase monitoring relay
ETIM 8
EC001441 - Phase monitoring relay
ETIM 9
EC001441 - Phase monitoring relay
eClass
V11.0 : 27371803
UNSPSC
39122332
E-Number (Finland)
2712276
E-Number (Norway)
4188134
E-Number (Sweden)
3860586
Feature: Comprehensive phase protection (phase failure detection, phase sequence monitoring, over- and undervoltage, phase unbalance). Business Impact: Prevents unexpected motor trips and equipment damage, reducing downtime costs. Application: Three-phase motors and drives in conveyor, pump, and packaging lines benefit from early fault detection. Feature: Wide measuring range and configurable timing (L-L 160-300 V AC; start-up 200 ms; 0 s or 0.1–30 s tripping delay). Business Impact: Customizable protection tailored to supply characteristics, minimizing nuisance trips. Application: Power distribution panels and critical motor feeders. Feature: 2 c/o SPDT outputs with screw terminals. Business Impact: Flexible control logic and easy integration with existing control circuits, lowering wiring complexity. Application: Control circuits and interlocks in automation cabinets. Feature: DIN rail mounting and screw terminal compatibility. Business Impact: Faster installations with reduced panel footprint and easier retrofits. Application: Standard European control panels with TH35 rails. Feature: Rugged electrical and environmental specs (IP50 housing; -25 to +60 °C). Business Impact: Reliable operation in harsh industrial environments, minimizing service interruptions. Application: OEM machines, food and beverage lines, and packaging equipment. Feature: Certifications and standards (CE, UL/CSA, UL 508; CAN/CSA). Business Impact: Regulatory compliance and procurement confidence, supporting global deployments. Application: Global machine builds and multi-site installations.
Get a Quick Quote for a ABB 1SVR730884R1300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR730884R1300?
Enquire Now
FAQs
Yes. CM-MPS.31S supports TH35-15 or TH35-7.5 DIN rails and uses screw terminals suitable for flexible, ferrule, or rigid conductors from 0.5 to 4 mm². Tightening torque is 0.6 to 0.8 N·m, with a wire stripping length of 8 mm. This simplifies installation and reduces panel footprint.
The relay measures (L-L) 160–300 V AC with a 50/60 Hz supply, and provides 2 c/o SPDT contacts. It offers a 200 ms startup delay and a selectable tripping delay of 0 or 0.1–30 s. Output current ratings are 4 A AC-12 (230 V) and 3 A AC-15, making it suitable for control circuits and signaling.
Yes. It monitors phase failure, phase sequence, over/undervoltage, and phase unbalance, enabling early fault detection that prevents motor damage and unplanned downtime. It is ideal for automation panels, drives, and motor feeders in manufacturing lines, conveyors, and process equipment.
CM-MPS.31S complies with CE and UL/CSA standards, including UL 508 and CAN/CSA C22.2 No.14. It also aligns with IEC/EN 63000, IEC/EN 60255-27, and IEC/EN 61000-6-2/6-3, supporting regulatory compliance for global deployments and high-assurance panels.
Lead time is approximately 28 days, with stock available in designated warehouses. The device carries standard warranty terms and a return policy for warranted units. The ROI comes from reduced downtime, improved motor protection, and faster commissioning thanks to DIN-rail mounting and straightforward wiring.
