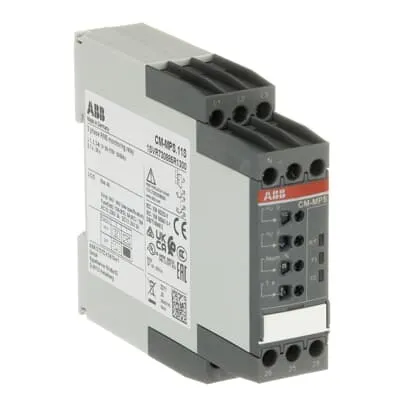

ABB 1SVR730885R1300 CM-MPS.11S monitoring relay - CE/UL
Part Number: 1SVR730885R1300
Quick Summary
CM-MPS.11S Three-phase monitoring relay provides voltage and phase condition alerts for commercial and industrial mains. Engineers often struggle with undetected phase faults and voltage irregularities that trigger unexpected downtime and equipment wear. This device carries CE conformity and UL/CSA listings, plus RoHS compliance, ensuring regulatory alignment and safer installations. In addition to precise monitoring, it supports adjustable thresholds, ON/OFF tripping delays, and phase sequence checks, delivering a reliable protective layer. By integrating it into control panels and automation racks, your maintenance schedules improve and spare-part costs are reduced, while enabling faster fault diagnosis and consistent machine availability.
Product Information
Extended Description
1SVR730885R1300 ABB: The CM-MPS.11S is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 90-170 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay is also suitable to monitor single-phase mains. It monitors all phase parameters such as over/undervoltage, phase unbalance, phase failure as well as an interrupted neutral. The corresponding threshold values are adjustable. Phase sequence monitoring as well as an ON or OFF tripping delay are selectable. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4016779851886
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-MPS.11, CM-MPS.31 Multifunctional three-phase monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-MPx, CM-PxS Three-phase monitoring relays | Installation instructions - CM-MPx, CM-PxS Three-phase monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.148 kg
Function
Over- and undervoltage monitoring | Phase failure detection | Phase unbalance detection | Phase sequence monitoring | Interrupted neutral monitoring
Measuring Range
(L-N) 90 ... 170 V AC
Time Range
0 s or 0.1 ... 30 s tripping delay (ON or OFF) | 200 ms start-up delay
Rated Control Supply Voltage (Us)
(L-N) 90 ... 170 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
2 c/o (SPDT) contacts
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Input Circuit 6 kV | Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 1x 0.5 ... 2.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 1x 0.5 ... 4 mm² | Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
8 mm
Recommended Screw Driver
4.5 | 0.8 x 4 | Pozidriv 1
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 1x 18-14 AWG | Flexible 2x 18-16 AWG | Rigid 2x 20-14 AWG | Rigid 1x 20-12 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
133c1038-af3c-449b-ad3a-6fb13bdd9bf2 Germany (DE)
Simplified SCIP
bbba6c77-37e9-47ef-9a08-076853feace6 Belgium (BE) | 751cc9e8-4db1-4301-aa0f-b67df622f4bb Spain (ES) | ba4182af-9494-48cf-b5fe-0aa94d49a7c1 Hungary (HU) | ce808e8a-1a63-4153-8303-40d69c94df31 Poland (PL) | b5729d47-85cc-49ea-863f-1a95c5224ba7 Germany (DE) | 383a077b-d6a6-4cb1-aaa2-a50b8d7b7abd Netherlands (NL) | 56dc6008-8abb-481c-83d6-69909fa74797 Hungary (HU) | b6d11e6b-a6e8-4cf4-8cb4-f1719e31de00 Greece (GR) | de6f6412-f2c4-4133-8b41-5957d33f3714 Portugal (PT) | f336b43c-8182-4e9a-b084-828354353d9b Bulgaria (BG) | 2edd8143-d2e5-4d7c-a1d5-2d1b455bb3cb Sweden (SE) | ed3cd28b-6b66-4996-a718-c1e0d2dee7a7 Sweden (SE) | 1fb03dd8-af08-415e-bd0a-1b17dedaea9a Germany (DE) | 34123c50-bd07-4659-8991-a457c713318c Poland (PL) | ef14e892-1b5d-45f3-902e-d08f3b6f7053 France (FR) | 9fd4ec98-6e73-4894-92f5-4985e68027ba France (FR) | 9e2d7c60-cb94-4c05-b7d4-91df1942c2fb Italy (IT) | b904fe3e-b10b-4ed7-bbfd-266ae8991e14 Estonia (EE) | e20dca0a-d1a3-4121-a0c0-221d2aa3ef47 Czech Republic (CZ) | 4b85c491-293d-407d-993f-abebf73dae4e Germany (DE) | 54c18b36-fa35-4367-9150-2a1ff54937a7 Croatia (HR) | a6a041bb-7ef4-443e-821c-ba648ab8e964 Norway (NO) | c3b3fac9-646e-4491-b49e-ad5d9178c351 Belgium (BE) | 7b2fedec-e122-4aee-9ce4-6c2f781f8b13 Germany (DE) | c23a31c4-c3fd-46a5-b716-f3a696814c98 Finland (FI) | d4c4b18f-7098-4d4d-a011-51e0331a7a9d Poland (PL) | f9736f57-02a6-40d8-8c5b-ed160b1acb0a Denmark (DK)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-27947-UL
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-UFS.., CM-MPN.., Made in Germany
cULus Certificate
cULus508_20120829-E140448
Declaration of Conformity - CCC
CCC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-MPN.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
DNV GL Certificate
DNV GL Certificate - CM-MPx.xxx, CM-PAS.xxx, CM-PSS.xxx,CM-PVS.xxx, and CM-PFS.x Three-phase monitoring relays with screw or push-in terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.173 kg
Package Level 1 EAN
4016779851886
Object Classification Code
B
ETIM 7
EC001441 - Phase monitoring relay
ETIM 8
EC001441 - Phase monitoring relay
ETIM 9
EC001441 - Phase monitoring relay
eClass
V11.0 : 27371803
UNSPSC
39122332
E-Number (Finland)
2712270
E-Number (Norway)
4188130
E-Number (Sweden)
3860589
Feature: The CM-MPS.11S measures L-N voltage in the 90-170 VAC range, enabling accurate recognition of undervoltage and overvoltage conditions. Business Impact: Reduces nuisance trips and protects critical loads, improving uptime in automation lines. Application: Ideal for panel boards and machine control where supply quality is a key reliability factor. Application Insight: In high-variability mains environments, tuned thresholds translate to measurable improvements in preventive maintenance planning and energy management.Feature: Two SPDT outputs provide flexible signaling and control options. Business Impact: Simplifies wiring for alarms and automatic shutdown circuits, lowering installation cost and cabinet complexity. Application: Use for separate alarm and control paths in automated lines and PLC interfaces. Application Insight: Meets common OEM wiring practices with robust connection to standard control circuits.Feature: Adjustable threshold values and ON/OFF tripping delay (0.1–30 s) plus a 200 ms start-up delay. Business Impact: Minimizes false trips during transient events, improving system stability and availability. Application: Essential in processes with variable loads or cycling motors where timing is critical. Application Insight: Operators gain predictable protection without compromising production throughput.Feature: Phase sequence monitoring, phase failure detection, and interrupted neutral monitoring. Business Impact: Early fault detection reduces unplanned outages and protects sensitive equipment from uneven voltages. Application: Critical in data centers, packaging lines, and process automation where 3‑phase integrity matters. Application Insight: Supports quick fault diagnosis and safer automatic interventions.Feature: Screw terminals and double-chamber cage connections plus DIN rail mounting compatibility. Business Impact: Easy retrofit into existing panels with proven mechanical robustness and reliable terminations. Application: Suited for standard 35 mm DIN rails and diverse wiring schemes in new builds and upgrades. Application Insight: Enables fast deployment with minimal companion hardware and reduced field wiring errors.
