ABB 1SVR740700R0100 Motors & Drives - CE Certified
Part Number: 1SVR740700R0100
Quick Summary
ABB 1SVR740700R0100 thermistor motor protection relay is designed to safeguard motor windings by monitoring PTC sensors and auto-resetting after faults. This compact device fits with 24 V AC/DC control systems and provides a single SPDT output for straightforward integration into existing control circuits. Many installations struggle with unreliable protection leading to unplanned downtime; CM-MSS delivers automatic fault recovery and a sealable cover option to prevent tampering. With CE and UKCA marks, UL/CSA recognition, and robust insulation standards, it meets global safety requirements. The unit also supports effortless DIN-rail mounting and maintenance-free Easy Connect push-in terminals, delivering faster commissioning and reduced wiring errors, while enabling scalable protection for motor arrays in automation lines.
Product Information
Extended Description

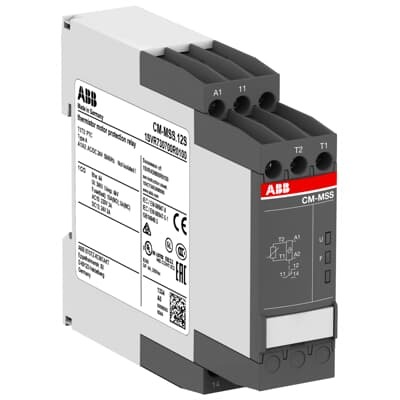

1SVR740700R0100 ABB: The CM-MSS.12P belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 24 V AC/DC and has a 1 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The relay will be reset automatically after the failure has been removed. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4013614496615
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-MSS.12S/P and CM-MSS.13S/P with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-MSS Thermistor motor protection relays | Installation instructions - CM-MSS Thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.105 kg
Function
1 sensor circuit | Auto reset
Rated Control Supply Voltage (Us)
24 V AC/DC
Rated Operational Voltage
Auxiliary Circuit 250 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
1 c/o (SPDT) contact
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Output Circuit 1 / Output Circuit 2 4 kV | Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 300 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Output Circuit 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60947-5-1 | IEC/EN 60947-8 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
67cb2765-2126-4fa5-8309-4beb4a54eb9b Germany (DE)
Simplified SCIP
d9cd262d-1cc1-4f92-93bc-e5affe3d28c0 Germany (DE) | a890dd8d-e282-4394-bb07-2ff0d46537a4 Finland (FI) | c0311e03-660e-4b2a-b433-ad34cd1940e7 Bulgaria (BG) | 5b9e0c4a-cc9d-4712-a340-d5b7446c3236 Germany (DE) | 7747c413-33ec-4fa0-b8fd-010cdd4f147f France (FR) | 7690b627-f2b0-4624-94dc-08e91793ac77 Belgium (BE) | a768feb7-f136-491b-818a-5a2733e50e37 Hungary (HU) | a08b4f87-e9c1-49f5-9aa5-5ec3f493529b Portugal (PT) | cf084ba6-4771-4b63-aa7e-3522f219cc7b Germany (DE) | 9305a279-d44f-4a3d-8c14-5c1c57f7e6ff Poland (PL) | f6ad8548-5163-4c03-a8c1-1a3a00eacef2 Denmark (DK) | 7fa52ce0-afd7-4a7d-bff1-e27e9d8c7304 Hungary (HU) | 529e7e11-a0e8-46c8-93bd-f47ebabfaf89 France (FR) | fd22e65b-ede3-4680-b04a-41573506f660 Sweden (SE) | 798eb40e-c323-4239-8336-5bb98276e08c Spain (ES) | fb6df2f8-2cbd-45ab-9de9-953d9db9b5e6 Norway (NO) | c0a4d149-72d1-4dcd-9a6f-9f5257f0eed6 Greece (GR) | ac83b650-6753-42ae-85ec-d5d59e3f82fa Netherlands (NL) | 09ec32b1-0408-43af-b816-f2f19ecbb4f5 Germany (DE) | 41ce01d3-27db-4ac3-a011-8c3682285e2f Czech Republic (CZ) | 3a6f583d-64f1-4ca3-b8a7-4d7c50c043a2 Italy (IT) | ee69c9a9-60ba-413f-80dd-d09f1465d8cf Sweden (SE) | 23a8e421-b9e7-407c-8fef-48730491d8eb Estonia (EE) | 93d703fd-ae59-4a33-a67a-dcb97587e687 Poland (PL) | 067c7162-d1bf-4307-8abb-27147a208e72 Poland (PL) | 10ae384e-16f4-4a67-9785-187679cad7e2 Croatia (HR) | 92f19603-a308-4b82-8117-7b2c88d1b282 Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-40837-UL
CCC Certificate
CCC Certificate - Measuring and Monitoring Relays CM-PFS.x, CM-MSS.xxx, CM-MSS, CM-ENS, CM-ENS up/down
CQC Certificate
CQC Certificate, Measuring and Monitoring Relays, CM-PFS.x, CM-PFS, CM-MSS.xyz, CM-ENS, CM-ENS up/down, Made in Germany
cULus Certificate
cULus508_20140912-E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Measuring and Monitoring Relays, CM-PFS.x, CM-PFS, CM-MSS.xyz, CM-ENS, CM-ENS up/down, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-MSS.xxx thermistor motor protection relay
Declaration of Conformity - UKCA
UK Declaration of conformity - CM-MSS.xxx thermistor motor protection relay
DNV GL Certificate
DNV GL Certificate Thermistor motor protection relays
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.129 kg
Package Level 1 EAN
4013614496615
Object Classification Code
B
ETIM 7
EC002568 - Relay for thermistor protection (PTC)
ETIM 8
EC002568 - Relay for thermistor protection (PTC)
ETIM 9
EC002568 - Relay for thermistor protection (PTC)
eClass
V11.0 : 27371503
UNSPSC
39122331
E-Number (Finland)
2712394
E-Number (Norway)
4188163
E-Number (Sweden)
3860713
The CM-MSS.12P accepts 24 V AC/DC control supply, enabling seamless integration with most industrial PLCs and motor circuits, which reduces panel complexity and wiring errors in new builds or retrofits. It delivers a 1 c/o SPDT output you can use to drive auxiliary devices or signaling circuits, improving fault visibility and response times in conveyors, pumps, and fans. The device features a single sensor circuit to monitor PTC temperature sensors, delivering precise motor protection and preventing overheating that can shorten motor life. Its auto reset after fault removal minimizes downtime and keeps production lines flowing, while reducing maintenance intervention requirements and service costs. The system uses maintenance-free Easy Connect Technology with push-in terminals, accelerating commissioning and ensuring reliable connections in harsh environments. In addition, screwless terminals and DIN-rail mounting (TH35) simplify installation and upgrades in cabinet layouts, saving space and time. The robust IP50 housing and high insulation ratings support demanding factory floors and meet key safety standards for industrial automation.
