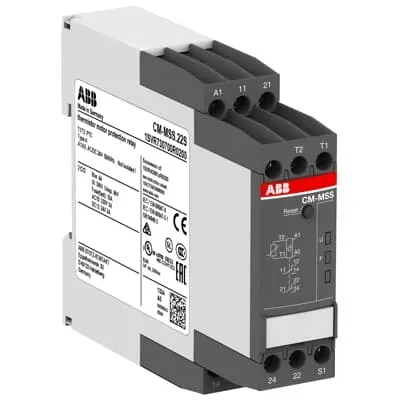

ABB 1SVR740700R0200 Thermistor motor protection relay CE
Part Number: 1SVR740700R0200
Quick Summary
Thermistor motor protection relay CM-MSS.22P protects motors by monitoring PTC sensors in industrial drives. A common pain point is unplanned downtime caused by overheating and sensor faults that disrupt production. CE, UKCA and UL/CSA certifications help meet global compliance, while IP50 housing and a 24 V control supply support rugged industrial use. For panel builders and OEMs, Easy Connect push-in terminals and DIN-rail mounting streamline installation, maintenance, and service. The device offers 2 c/o SPDT outputs with auto, manual, or remote reset, delivering configurable protection that minimizes unplanned stoppages.
Product Information
Extended Description
1SVR740700R0200 ABB: The CM-MSS.22P belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 110-130 V AC and 220-240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The relay can be reset automatically, manually or remotely after the failure has been removed. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4013614496608
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-MSS.22S/P and CM-MSS.23S/P with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-MSS Thermistor motor protection relays | Installation instructions - CM-MSS Thermistor motor protection relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.121 kg
Function
1 sensor circuit | Auto | manual or remote reset
Rated Control Supply Voltage (Us)
24 V AC/DC
Rated Operational Voltage
Auxiliary Circuit 250 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
2 c/o (SPDT) contacts
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Output Circuit 1 / Output Circuit 2 4 kV | Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 300 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Output Circuit 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 10 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Tightening Torque
Auxiliary Circuit 1 ... 1.2 N·m | Main Circuit 2.5 ... 2.7 N·m
Wire Stripping Length
8 mm | Auxiliary Circuit 9 mm | Main Circuit 12 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60947-5-1 | IEC/EN 60947-8 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
(NC:) Q600 | (NO:) Q600 | (NC:) B600 | (NO:) D300 | B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Connecting Capacity Main Circuit UL/CSA
Flexible 1/2x 18-10 AWG
Connecting Capacity Auxiliary Circuit UL/CSA
Flexible 1/2x 18-12 AWG
Pilot Duty UL/CSA
B300 | NC B600 | NC Q600 | NO D300 | NO Q600
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
a4f89797-3dc0-4b0c-a6aa-447ab2330488 Germany (DE)
Simplified SCIP
38c3890a-325c-4ded-b401-71785468f8f9 Germany (DE) | 96dfcf0e-5366-4dc3-8ce6-22072074d374 Bulgaria (BG) | 52d57365-7d4b-4f69-be86-d0d993f96b11 Italy (IT) | 842ddf60-e129-41fe-98cc-6b453521a95c Germany (DE) | f2c30131-8363-4f33-9abe-7bb897eb3290 Netherlands (NL) | 476456eb-41d0-43cb-b9b4-222b54c2a8a3 Greece (GR) | 665318eb-b5af-40bb-ad6d-8d96480169f3 Norway (NO) | 1f7408ef-86d1-4ec9-8e3f-9c465e841403 Croatia (HR) | ab7efb50-fad5-40d7-9601-0633816cb73f France (FR) | 60afcd5d-91c5-40df-af5c-71a1d1f487e2 Sweden (SE) | b263b52f-3a21-4264-b2a7-04da32e3a1eb Portugal (PT) | 77d0498c-d0db-4053-be7e-653d169f2c95 Poland (PL) | c366e435-19ad-4abc-8e4e-0e070d9a2fd6 Sweden (SE) | 06b772b7-4cb0-422c-aeee-277bf947c20d Estonia (EE) | 0651c9e8-66ed-4a0d-8039-2de10d883025 Hungary (HU) | e933b43c-9e08-4909-afc6-6f5dff0df640 Spain (ES) | c85305be-8c7b-4973-991a-74e2f808d52e Belgium (BE) | 802d1e76-f107-46f9-ab2b-89527688055e Hungary (HU) | 95d563a2-2a3c-4e11-833c-00f794591690 Belgium (BE) | 32fd11e4-e274-4953-8285-97b2efb530f3 France (FR) | a99808d8-5005-4a9e-bdab-7ddc2cccbdf5 Germany (DE) | b652e991-216a-4a03-b02e-1b35d1bed7b5 Czech Republic (CZ) | 6236ebb0-2052-4635-a171-c5e089e0db10 Germany (DE) | fc1e78ab-f0ca-4b7f-8ea4-7e9c026ce8c9 Denmark (DK) | b1af6725-8315-49dc-bd22-8666a1f55dc6 Poland (PL) | 402e581d-49b1-4ad1-b7d5-640df2c98968 Finland (FI) | 1f30ecd3-2fec-47ad-8610-c969b14a869d Poland (PL)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-40837-UL
CCC Certificate
CCC Certificate - Measuring and Monitoring Relays CM-PFS.x, CM-MSS.xxx, CM-MSS, CM-ENS, CM-ENS up/down
CQC Certificate
CQC Certificate, Measuring and Monitoring Relays, CM-PFS.x, CM-PFS, CM-MSS.xyz, CM-ENS, CM-ENS up/down, Made in Germany
cULus Certificate
cULus508_20140912-E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Measuring and Monitoring Relays, CM-PFS.x, CM-PFS, CM-MSS.xyz, CM-ENS, CM-ENS up/down, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-MSS.xxx thermistor motor protection relay
Declaration of Conformity - UKCA
UK Declaration of conformity - CM-MSS.xxx thermistor motor protection relay
DNV GL Certificate
DNV GL Certificate Thermistor motor protection relays
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.145 kg
Package Level 1 EAN
4013614496608
Object Classification Code
B
ETIM 7
EC002568 - Relay for thermistor protection (PTC)
ETIM 8
EC002568 - Relay for thermistor protection (PTC)
ETIM 9
EC002568 - Relay for thermistor protection (PTC)
eClass
V11.0 : 27371503
UNSPSC
39122331
E-Number (Finland)
2712501
E-Number (Norway)
4188164
E-Number (Sweden)
3860723
