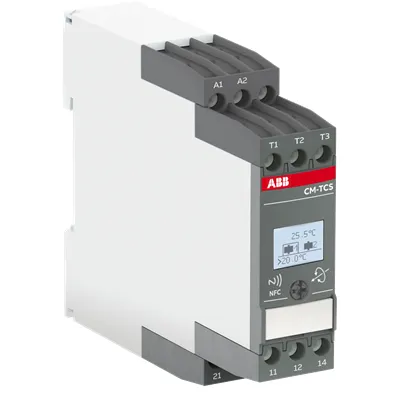

ABB CM-TCS.011P Temperature Monitoring Relay - 24-240 VAC/DC
Part Number: 1SVR740740R0110
Quick Summary
ABB CM-TCS.011P Temperature Monitoring Relay is a compact, scalable device designed for precise over- and undertemperature monitoring in industrial automation panels. Engineers often struggle with lengthy commissioning and wiring complexity; this model reduces those frictions with a wide supply range, two configurable SPDT outputs, and a front LCD that displays live measurements. It carries CE, UL/CSA, and UKCA certifications to support compliant installation in global facilities, while its IP50 housing and IP20 terminals ensure reliable operation in challenging environments. With one-touch ABB EPiC app configuration and maintenance-free Easy Connect push-in terminals, it accelerates deployment and simplifies future upgrades. The result is faster time-to-operational readiness, lower wiring costs, and scalable integration for OEMs and control-panel builders.
Product Information
Extended Description
1SVR740740R0110 ABB: The CM-TCS.011P is an innovative temperature monitoring relay from the CM temperature monitors range. This monitoring relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.011P is able to measure temperatures with one sensor circuit using different type of sensors PT100, PT1000, PTC or NTC. The LCD at the front of the relay shows the currently measured value and maintenance data. The CM-TCS.011P can be configured exactly as you need either via a black-lit LCD or smartphone app. Parametrization and configuration are just one touch away with the ABB EPiC app – even in a non-powered state – reducing installation time by 80%. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4013614552748
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog Smart temperature monitoring relays CM-TCN & CM-TCS
Instructions and Manuals
Installation instructions - CM-TCS.011 Temperature monitoring relay | User manual of smart temperature monitoring relay CM-TCS.011
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.141 kg
Function
Overtemperature monitoring | Undertemperature monitoring | Over- and undertemperature monitoring
Measuring Range
-200 ... 850 °C
Sensor Type
PT100; PT1000; PTC; NTC; bimetal switch
Rated Control Supply Voltage (Us)
24 ... 240 V AC/DC
Rated Frequency (f)
Supply Circuit 50 Hz | Supply Circuit 60 Hz | Supply Circuit DC Hz
Output
2 x 1 c/o contacts, configurable
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
12 V | 100 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 6 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 6 kV | Supply Circuit / Output Circuit 6 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Measuring Circuit 600 V | Supply Circuit / Output Circuit 600 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
2
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CQC Certificate
CQC Certificate, Temperature Monitoring Relays, CM-TCS.xxxx, CM-TCN.xxx, Made in Germany
CSA Certificate
cUL60947-5-1 certificate CM-TCN.011x, CM-TCN.012x, CM-TCS.011x
Declaration of Conformity - CCC
CCC Declaration of Conformity, Temperature Monitoring Relays, CM-TCS.xxxx, CM-TCN.xxx, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-TCS.011x Temperature monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-TCS.011x Temperature monitoring relays
UL Certificate
UL60947-5-1 certificate CM-TCN.011x, CM-TCN.012x, CM-TCS.011x
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.161 kg
Package Level 1 EAN
4013614552748
Object Classification Code
B
ETIM 7
EC001446 - Temperature monitoring relay
ETIM 8
EC001446 - Temperature monitoring relay
ETIM 9
EC001446 - Temperature monitoring relay
eClass
V11.0 : 27371810
UNSPSC
39122331
Feature: Wide operating range 24-240 V AC/DC enables a single supply solution across multiple sites. Business Impact: Reduces stock complexity and simplifies panel design by eliminating multiple part variants. Application: Ideal for mixed voltage environments in packaging lines and conveyors. The integration with EPiC app allows quick configuration and diagnostics, cutting commissioning time. Application: Fast startup for new machines and retrofits. Feature: Sensor compatibility with PT100, PT1000, PTC, NTC, and bimetal switches. Business Impact: Broad compatibility reduces spare-parts inventory while increasing diagnostic versatility. Application: Temperature monitoring in plastics and food processing where diverse sensors are common. Feature: Two configurable SPDT outputs with 250 V / 4 A ratings. Business Impact: Flexible alarm and control wiring with minimal hardware changes. Application: Supervisory control in motor drives and ovens. Feature: LCD with maintenance data and NFC configuration. Business Impact: Immediate visibility of process values and quick on-site setup, lowering downtime. Application: Factory floors needing rapid fault finding and remote configuration. Feature: Easy Connect technology with push-in terminals. Business Impact: Faster, secure terminations with reduced commissioning errors. Application: Panel builders prioritizing reliable, maintenance-friendly connections. Feature: IP50 housing and IP20 terminals with robust insulation ratings. Business Impact: Enhanced protection in dusty environments and safe field connections. Application: Industrial enclosures and panel interior installations where protection classes matter.
Get a Quick Quote for a ABB 1SVR740740R0110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR740740R0110?
Enquire Now
FAQs
ABB CM-TCS.011P is designed for TH35 DIN rails (TH35-15 or TH35-7.5) with screwless terminals and a compact 22.5 mm width. Mounting between 1 and 6 o’clock positions allows flexible panel layout. Use push-in terminals for quick, secure wiring of 2x 0.5-1.5 mm² conductors, and ensure proper cooling in IP50-rated housings to maintain reliability.
The device supports PT100, PT1000, PTC, NTC, and bimetal switches, enabling a single relay to monitor multiple process conditions. This versatility reduces inventory and simplifies sensor procurement for diverse applications such as plastics, packaging, and food processing where different sensing elements are used.
The EPiC app provides one-touch configuration, real-time parameter adjustment, and maintenance data access. It can operate in a non-powered state, accelerating commissioning on site and enabling NFC-based quick setup. This reduces installation time and minimizes human error during parameterization.
The CM-TCS.011P holds CE, UKCA, and UL/CSA certifications, with additional CCC and DoC references. It is designed for safe operation at up to 300 V AC in output circuits and features protective insulation ratings suitable for industrial control panels, contributing to regulatory compliance and safe field deployment.
ROI is driven by faster commissioning, reduced wiring complexity, and lower maintenance time. The two configurable outputs simplify control logic, while push-in terminals and EPiC-app configuration cut installation hours. In practice, you should expect shorter project timelines, fewer field failures, and improved system reliability over the lifecycle.
