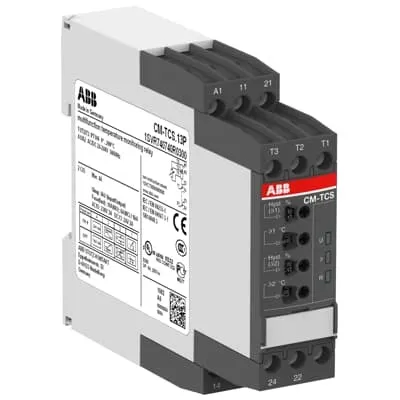

ABB CM-TCS.13P Temperature monitoring relay - IP50 housing
Part Number: 1SVR740740R0300
Quick Summary
ABB CM-TCS.13P Temperature monitoring relay detects over- and undertemperature to protect industrial equipment. Operators often struggle with inconsistent protection and tampering; this device offers adjustable thresholds and a sealable cover to prevent unauthorized changes, while Easy Connect push-in terminals simplify wiring. The unit carries key certifications such as CE and UL/CSA, with IP50 housing for robust field use and CAN/CSA/IEC compatibility. Designed for 24–240 VAC/DC supply and PT100 sensing, it integrates with control panels to deliver reliable protection, reduced downtime, and easier maintenance in demanding environments.
Product Information
Extended Description
1SVR740740R0300 ABB: The CM-TCS.13P relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.13P is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.13P monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is 0..+200°C. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4016779852791
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-TCS.xxx Temperature monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-TCS.11, CM-TCS.12, CM-TCS.13, CM-TCS.21, CM-TCS.22, and CM-TCS.23 Temperature monitoring relays | Installation instructions - CM-TCS.11, CM-TCS.12, CM-TCS.13, CM-TCS.21, CM-TCS.22, and CM-TCS.23 Temperature monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.14 kg
Function
Overtemperature monitoring | Undertemperature monitoring | Over- and undertemperature monitoring
Measuring Range
0 ... 200 °C
Sensor Type
PT100
Rated Control Supply Voltage (Us)
24 ... 240 V AC/DC
Rated Frequency (f)
Supply Circuit 50 Hz | Supply Circuit 60 Hz | Supply Circuit DC
Output
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 4 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 4 kV | Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 300 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Measuring Circuit 300 V | Supply Circuit / Output Circuit 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.60947-5-1 | IEC/EN 60255-26 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 63000 | UL 60947-5-1 | IEC/EN 60947-5-1
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -40 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
d5df017f-6e51-4185-92b8-89ddb1907dcc Germany (DE)
Simplified SCIP
a5a51735-7123-4378-8cd0-3e4073b0332f Germany (DE) | 550b5162-3311-4fc4-bcf1-2a6c5eb1c8c7 Finland (FI) | c27a9de5-d741-486e-ba62-7e5ca5b78b6b Italy (IT) | 7833662f-2159-4127-a673-6e178a6bd251 Belgium (BE) | b819c38e-5f24-49d8-9d03-cc01273fc4b5 Portugal (PT) | 4cbc1ab3-e154-407f-b636-58c7fa4d8a41 Poland (PL) | 87c26113-ac8e-4f2f-a1ab-fccf73ade749 Norway (NO) | 767f3152-1375-4157-a4a2-80f548d99a60 France (FR) | 99466163-2090-4dd8-b8cc-d89943f4fb08 Poland (PL) | d2437447-9a69-4dd5-bfd3-91aa75c63cf0 Sweden (SE) | 1874cff6-5d94-455d-bd63-2c5aaccd5090 Bulgaria (BG) | 5c8060ca-a0af-4c41-b3f1-4ba5ddb0c15b Sweden (SE) | 31be927e-0f98-4f08-b93b-8d099afcc825 Germany (DE) | 69330605-4608-462f-a16e-332f26695bc1 Hungary (HU) | 05c82a0e-65dc-4576-85fd-6071cdc7e016 Estonia (EE) | 7a16d1c6-9389-4358-8d2d-d84ec3e6a28e Greece (GR) | 508840ec-1a57-4d4b-989d-30c5061790fc Netherlands (NL) | 6da696b6-cb93-4459-ad90-80ede5eebc58 Czech Republic (CZ) | aa7d43a6-79ae-490d-b477-ccc39cc32e08 Poland (PL) | 68bbf672-a28d-47dd-9545-41b2677b0623 Germany (DE) | fab95608-1202-4ce1-825a-449ed0a1dc73 Croatia (HR) | 508014ec-bf3a-4ee3-a5f8-0bf19fa08f9f Denmark (DK) | 2cf0d147-fb28-4617-98fb-36e38fbd9071 Germany (DE) | 46364b1e-bc9e-4480-b8b8-775f919bdef0 France (FR) | 13ba4c78-4671-458e-af34-7703f9ba5a91 Spain (ES) | c55b86a6-e7b1-4f14-8da9-b26458a03c47 Hungary (HU) | 32a8f00e-b9b2-4b70-aeb4-2547340cc2ee Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CCC Certificate
CCC Certificate - Temperature monitoring relays CM-TCS.xxxx and CM-TCN.xxx
CQC Certificate
CQC Certificate, Relays, CM-SRS.., CM-SFS.., CM-ESS..,CM-EFS.., CM-TCS.., Made in Germany
cULus Certificate
cULus60947-5-1_20170922-E140448
Declaration of Conformity - CCC
CCC Certificate, Relays, CM-SRS.., CM-SFS.., CM-ESS..,CM-EFS.., CM-TCS.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-TCS.xxx Temperature monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-TCS.xxx Temperature monitoring relays
DNV GL Certificate
DNV GL Certificate - CM-TCS.xxx Temperature monitoring relays with screw or push-in terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.165 kg
Package Level 1 EAN
4016779852791
Object Classification Code
B
ETIM 7
EC001446 - Temperature monitoring relay
ETIM 8
EC001446 - Temperature monitoring relay
ETIM 9
EC001446 - Temperature monitoring relay
eClass
V11.0 : 27371810
UNSPSC
39122331
E-Number (Finland)
2712325
E-Number (Norway)
4188198
E-Number (Sweden)
3860671
Temperature monitoring with adjustable thresholds provides early warnings and prevents equipment damage, mapping to a measurable reduction in unplanned downtime. Measuring range 0 to 200 °C with a PT100 sensor supports precise control in motors and conveyors, while two configurable outputs (2 x SPDT or 1 x 2-SPDT) enable flexible logic. The business impact is clear: safer operation and simpler control schemes, aided by maintenance-free Easy Connect technology and low-wiring effort. The device is compatible with 24–240 VAC/DC supplies, supporting global installations and energy efficiency through unified power rails. Installation is facilitated by screwless terminals and DIN rail mounting (TH35-15 or TH35-7.5), delivering a compact 22.5 mm width footprint for crowded control panels. This reduces panel size, wiring complexity, and spare-part costs over time. Reliability is enhanced by IP50 enclosure and IP20 terminal protection, along with 4 kV impulse withstand and 300 V insulation ratings, addressing both safety and compliance concerns. Certifications including CE, UL/CSA, CCC, and DNV GL provide regulatory peace of mind for machinery standards across industries, while the product’s RoHS/REACH compliance supports sustainability objectives. In practice, maintenance teams benefit from clear threshold adjustment and 1-sensor circuit monitoring, ensuring predictable behavior and faster fault isolation. The CM-TCS.13P is an industry-proven solution for temperature monitoring in panel builders, machine OEMs, and service providers seeking resilient protection with straightforward installation.
Get a Quick Quote for a ABB 1SVR740740R0300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR740740R0300?
Enquire Now
FAQs
Install on a standard TH35 DIN rail (TH35-15 or TH35-7.5) with a 22.5 mm width footprint. Use the Easy Connect push-in terminals for fast wiring with flexible or solid conductors (0.5–1.5 mm²) and a wire-stripping length of 8 mm. The device supports 24–240 VAC/DC supply, so align power sources accordingly and minimize cross-wiring. Mounting and wiring should follow the installation instructions for temperature relays CM-TCS.xxxx to ensure proper operation and safety.
The CM-TCS.13P monitors 0 to 200 °C using a PT100 sensor circuit. It provides overtemperature and undertemperature monitoring with two adjustable thresholds, enabling window monitoring as needed. This setup helps protect critical equipment such as motors and heaters from temperature excursions and allows precise control logic within control panels.
The device carries CE and UL/CSA certifications, along with CCC and CQC declarations, supporting global regulatory compliance. It is designed to IEC/EN 60255-26 and IEC/EN 61000-series standards for electrical safety and EMC, with additional DNV GL certification for certain markets. These certifications help ensure safety, interoperability, and reliability in industrial environments.
The unit offers two configurable outputs: 2 x SPDT or 1 x 2 x SPDT. Rated operation at AC-12 is 4 A at 230 V, AC-15 3 A at 230 V, DC-12 4 A at 24 V, and DC-13 2 A at 24 V. Minimum switching capacity is 24 V at 10 mA. These ratings support typical control circuits and provide ample headroom for signaling, alarms, and interlock functions in automation panels.
Key factors include a sealable cover to prevent tampering, IP50 housing for environmental protection, and IP20 terminal protection. The Easy Connect push-in terminals simplify maintenance, while PT100 sensing and a single sensor circuit reduce complexity. The device’s 24–240 VAC/DC supply flexibility supports global deployments, and the 0.14 kg weight, compact dimensions, and DIN-rail mounting minimize panel footprint and service time during revisions.
