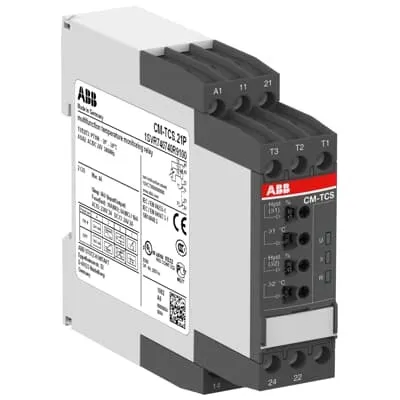

ABB 1SVR740740R9100 Temperature Monitoring Relay - IP50 Housing
Part Number: 1SVR740740R9100
Quick Summary
The ABB Temperature Monitoring Relay CM-TCS.21P protects industrial equipment by monitoring temperature in control panels. Its adjustable over- and undertemperature thresholds help prevent unplanned downtime caused by overheating. CE, UL/CSA, and UKCA certifications with IP50 housing support reliability in demanding environments. Coupled with PT100 sensing and Easy Connect push-in terminals, it enables fast installation and compliant operation. With a measuring range of -50 to +50 °C and a 24 V AC/DC supply, the CM-TCS.21P delivers precise protection for motors, transformers, and other critical assets while supporting scalable control architectures and straightforward maintenance in modern industrial facilities.
Product Information
Extended Description
1SVR740740R9100 ABB: The CM-TCS.21P relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.21P is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.21P monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is -50..+50°C. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4016779852807
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-TCS.xxx Temperature monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-TCS.11, CM-TCS.12, CM-TCS.13, CM-TCS.21, CM-TCS.22, and CM-TCS.23 Temperature monitoring relays | Installation instructions - CM-TCS.11, CM-TCS.12, CM-TCS.13, CM-TCS.21, CM-TCS.22, and CM-TCS.23 Temperature monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.127 kg
Function
Overtemperature monitoring | Undertemperature monitoring | Over- and undertemperature monitoring
Measuring Range
-50 ... 50 °C
Sensor Type
PT100
Rated Control Supply Voltage (Us)
24 V AC/DC
Rated Frequency (f)
Supply Circuit 50 Hz | Supply Circuit 60 Hz | Supply Circuit DC
Output
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 4 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 4 kV | Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 300 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Measuring Circuit 300 V | Supply Circuit / Output Circuit 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.60947-5-1 | IEC/EN 60255-26 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 63000 | UL 60947-5-1 | IEC/EN 60947-5-1
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -40 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
08eecf11-840c-4261-88d3-d578d09eb75f Germany (DE)
Simplified SCIP
d4e1f3f0-6c62-4c11-ae21-021aad648dc6 Poland (PL) | da402916-6121-47e1-8203-24a91e75a23e Bulgaria (BG) | 5703631c-7e12-4aab-933f-09d016c02605 Belgium (BE) | d1bcec01-d94d-470e-97dc-39833e055392 Hungary (HU) | b51617ea-7ae0-4fbe-b2bf-a30204eb748c Sweden (SE) | 329bdddc-560b-4b17-8322-c26c0bd96bf7 Spain (ES) | 29ae954b-237a-460c-b42d-a354f50691e1 Estonia (EE) | a452e3c2-6cca-4480-b535-f942c331a1f1 Poland (PL) | ae6302e7-6e6e-4ee5-b7ae-da061fd932f3 France (FR) | 1cbf237a-56e8-4143-8f5e-021d14f56861 Finland (FI) | 7f10e9de-c495-4920-8441-0d04823b8c05 Hungary (HU) | 61c61c35-9651-4229-b491-0dee03c3e30d Belgium (BE) | d554b7fb-d103-436b-8cc6-4accc74bce72 Sweden (SE) | dc494db3-b607-4b5d-b9c1-6523262c965c Portugal (PT) | 1ab998f2-ddde-48a9-8df4-05369b806224 France (FR) | 9dccf815-8259-40e4-8a5c-642f8cbbb2b9 Greece (GR) | c5a56390-ee58-42b3-b902-a018262d3e8e Norway (NO) | 133c8978-1517-44c6-91ba-b52030fcec3b Croatia (HR) | 1b8c5dba-cc67-478f-902f-3e896ab7a01b Germany (DE) | 0e43f2ee-66a3-49d1-8531-49f5404dda89 Netherlands (NL) | ee57a828-1fe4-494e-998f-dd91b7d5ac74 Italy (IT) | fda4750c-f434-4b12-bf52-b19c7a910750 Germany (DE) | 4da236d0-e173-44a3-a21a-14c3d5df859c Germany (DE) | d5463cbd-bb18-49c6-86a6-03404882c9cc Poland (PL) | 6d3abde5-51ad-459a-88aa-e40d40721a14 Denmark (DK) | 6b4ecb1b-4d20-44db-ba04-371fb8c54633 Germany (DE) | a676a135-c722-4baf-b6e2-163f64f915c3 Czech Republic (CZ)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CCC Certificate
CCC Certificate - Temperature monitoring relays CM-TCS.xxxx and CM-TCN.xxx
CQC Certificate
CQC Certificate, Relays, CM-SRS.., CM-SFS.., CM-ESS..,CM-EFS.., CM-TCS.., Made in Germany
cULus Certificate
cULus60947-5-1_20170922-E140448
Declaration of Conformity - CCC
CCC Certificate, Relays, CM-SRS.., CM-SFS.., CM-ESS..,CM-EFS.., CM-TCS.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-TCS.xxx Temperature monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-TCS.xxx Temperature monitoring relays
DNV GL Certificate
DNV GL Certificate - CM-TCS.xxx Temperature monitoring relays with screw or push-in terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.152 kg
Package Level 1 EAN
4016779852807
Object Classification Code
B
ETIM 7
EC001446 - Temperature monitoring relay
ETIM 8
EC001446 - Temperature monitoring relay
ETIM 9
EC001446 - Temperature monitoring relay
eClass
V11.0 : 27371810
UNSPSC
39122331
E-Number (Finland)
2712327
E-Number (Norway)
4188199
E-Number (Sweden)
3860672
The CM-TCS.21P integrates PT100 temperature sensing to deliver precise measurements across a wide operating window (-50 to +50 °C), enabling timely protective actions and reduced wear on critical equipment. This feature translates directly into longer service life for motors and drives and less unplanned downtime in manufacturing lines. The device supports two configurable thresholds for over- and undertemperature, plus window monitoring, allowing engineers to tailor protection to specific machines and process conditions, which improves process reliability and safety. With 2 x SPDT outputs or a single 2-c/o configuration, integration into existing control logic becomes straightforward, reducing wiring complexity and enabling flexible logic sequencing in automation panels. The 24 V AC/DC rated supply and Easy Connect push-in terminals offer maintenance-free assembly and faster commissioning, lowering total installation costs. The compact DIN-rail design (TH35-15/ TH35-7.5) and screwless terminals simplify retrofits and new installations, while the sealable transparent cover (available as accessory) enhances security against tampering. Compliance to IEC/EN standards and robust IP50 housing assure durability in harsh environments, supporting long-term asset protection and easier regulatory alignment.
Get a Quick Quote for a ABB 1SVR740740R9100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR740740R9100?
Enquire Now
FAQs
Yes. CM-TCS.21P is designed for DIN rail mounting (TH35-15 or TH35-7.5) and uses screwless terminals for a fast, vibration-resistant connection. It supports flexible wiring (2x 0.5 to 1.5 mm²) and offers push-in Easy Connect terminals for maintenance efficiency and reduced installation time.
CM-TCS.21P uses PT100 temperature sensing with a measurement range of -50 to +50 °C. This enables accurate monitoring of process and equipment temperatures, providing reliable protection for motors, transformers, and other critical components in automation panels.
Yes. With two configurable outputs (2 x SPDT or 1 x 2 c/o), adjustable thresholds for over/undertemperature, and compatibility with 24 V AC/DC control systems, CM-TCS.21P is well-suited to motor protection schemes and can be integrated into existing control logic to prevent overheating and extend motor life.
The CM-TCS.21P carries CE and UL/CSA listings, UKCA marking, and a range of relevant standards including IEC/EN 60255-26, IEC/EN 60255-27, and IEC/EN 61000-6 series. These certifications support safe operation in industrial environments and help ensure regulatory compliance across multiple regions.
Maintenance is simplified by Easy Connect push-in terminals and a compact DIN-rail footprint, reducing labor and downtime during installation. The device’s durable IP50 housing and long electrical/mechanical durability (AC-12 and high-cycle operation) translate into lower replacement costs and improved asset uptime, delivering a favorable return on investment in steady-state industrial environments.
