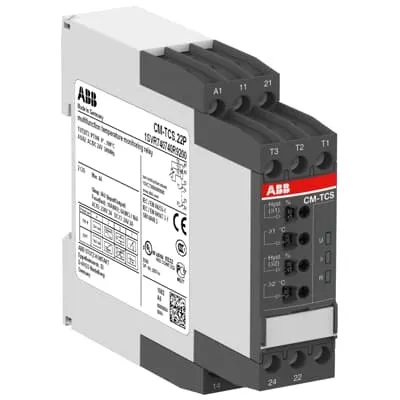

ABB CM-TCS.22P Temperature Monitoring Relay - 2 c/o SPDT outputs
Part Number: 1SVR740740R9200
Quick Summary
ABB CM-TCS.22P Temperature Monitoring Relay provides precise overtemperature and undertemperature protection for industrial control panels and automation cabinets. When heat rises beyond setpoints, unplanned downtime and cooling penalties can disrupt production schedules. This device carries essential European and North American certifications, including CE and UKCA marks for Europe and UL/CSA listings for North America, alongside EN 60947-5-1 compatibility. With 24 V AC/DC supply, PT100 input, and push-in Easy Connect terminals, it offers reliable monitoring while simplifying installation, reducing wiring errors, and enabling scalable DIN rail configurations for modern automation architectures.
Product Information
Extended Description
1SVR740740R9200 ABB: The CM-TCS.22P relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.22P is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.22P monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is 0..+100°C. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4016779852814
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-TCS.xxx Temperature monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-TCS.11, CM-TCS.12, CM-TCS.13, CM-TCS.21, CM-TCS.22, and CM-TCS.23 Temperature monitoring relays | Installation instructions - CM-TCS.11, CM-TCS.12, CM-TCS.13, CM-TCS.21, CM-TCS.22, and CM-TCS.23 Temperature monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.127 kg
Function
Overtemperature monitoring | Undertemperature monitoring | Over- and undertemperature monitoring
Measuring Range
0 ... 100 °C
Sensor Type
PT100
Rated Control Supply Voltage (Us)
24 V AC/DC
Rated Frequency (f)
Supply Circuit 50 Hz | Supply Circuit 60 Hz | Supply Circuit DC
Output
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 4 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 4 kV | Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 300 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Measuring Circuit 300 V | Supply Circuit / Output Circuit 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.60947-5-1 | IEC/EN 60255-26 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 63000 | UL 60947-5-1 | IEC/EN 60947-5-1
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -40 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CCC Certificate
CCC Certificate - Temperature monitoring relays CM-TCS.xxxx and CM-TCN.xxx
CQC Certificate
CQC Certificate, Relays, CM-SRS.., CM-SFS.., CM-ESS..,CM-EFS.., CM-TCS.., Made in Germany
cULus Certificate
cULus60947-5-1_20170922-E140448
Declaration of Conformity - CCC
CCC Certificate, Relays, CM-SRS.., CM-SFS.., CM-ESS..,CM-EFS.., CM-TCS.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-TCS.xxx Temperature monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-TCS.xxx Temperature monitoring relays
DNV GL Certificate
DNV GL Certificate - CM-TCS.xxx Temperature monitoring relays with screw or push-in terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.152 kg
Package Level 1 EAN
4016779852814
Object Classification Code
B
ETIM 7
EC001446 - Temperature monitoring relay
ETIM 8
EC001446 - Temperature monitoring relay
ETIM 9
EC001446 - Temperature monitoring relay
eClass
V11.0 : 27371810
UNSPSC
39122331
E-Number (Finland)
2712329
E-Number (Norway)
4188174
E-Number (Sweden)
3860673
Feature: 24 V AC/DC rated control supply. Business Impact: Enables direct integration with standard control circuits, reducing auxiliary power needs and device clutter. Application: Control panels and industrial cabinets using common 24 V logic. Feature: PT100 sensor input. Business Impact: High accuracy temperature sensing with proven industrial thermometry; supports precise threshold control in critical processes. Application: Heat exchangers, motors, CNC drives. Feature: 0 to 100 C measuring range. Business Impact: Covers typical process and equipment temperature windows without extra hardware. Application: Monitoring bearings, gearboxes, and process lines. Feature: 2 x SPDT outputs or 1 x 2 c/o configurable. Business Impact: Flexible signaling for alarm, interlock, or shutdown, reducing wire runs and complexity. Application: Panel indicator logic and safe shutdown circuits. Feature: Adjustable over and undertemperature thresholds. Business Impact: Fine tuning reduces nuisance trips and improves process stability. Application: Safety interlocks and process control loops. Feature: Easy Connect technology with push in terminals. Business Impact: Faster wiring, fewer loose connections, and maintenance-friendly installation. Application: Field wiring in crowded switchgear. Feature: Sealable cover accessory option. Business Impact: Prevents unauthorized changes in critical safety settings; enhances compliance. Application: Hazardous environments and regulated facilities. Feature: DIN rail mounting TH35 compatibility. Business Impact: Streamlined integration into standard control panels. Application: Industry standard enclosures and cabinets. Feature: IP50 housing and IP20 terminal protection. Business Impact: Robust in typical factory environments with protection against dust ingress. Application: Enclosed control panels and workstations.
Get a Quick Quote for a ABB 1SVR740740R9200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR740740R9200?
Enquire Now
FAQs
CM-TCS.22P is designed for DIN rail mounting using TH35-15 or TH35-7.5 standards, ensuring rapid deployment in control panels. It uses screwless or push-in terminals for quick wiring, reducing commissioning time and improving reliability in crowded panel nests.
The relay operates from 24 V AC/DC with 50/60 Hz compatibility. It provides 2 x SPDT outputs (configurable) and a PT100 input for temperature measurement from 0 to 100 C. Thresholds for over and undertemperature are adjustable, allowing precise protection aligned to the specific equipment and process requirements.
Yes, it is built for industrial environments with IP50 housing and IP20 terminals, operating reliably from -40 to +60 C and up to 2000 m altitude without derating. It complies with essential standards such as EN/IEC 60947-5-1 and EN 60255-26, supporting durable operation in demanding facilities.
The device carries CE and UKCA marks for European compliance, UL/CSA and CAN/CSA listings for North American use, and UL 60947-5-1 conformity. It also aligns with RoHS and REACH declarations, ensuring regulatory compliance across global deployments.
By delivering reliable real time temperature monitoring with adjustable thresholds and two SPDT outputs, CM-TCS.22P reduces unplanned outages and motor wear, lowers maintenance labor with Easy Connect wiring, and accelerates panel commissioning. Its robust certifications support faster project approval and safer, compliant operations across facilities.
