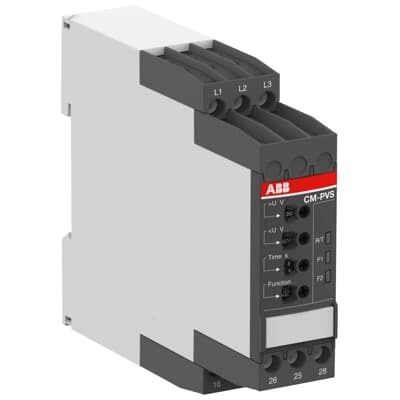

ABB 1SVR740794R1300 CM-PVS.31P Three-phase relay - IP50
Part Number: 1SVR740794R1300
Quick Summary
CM-PVS.31P three-phase monitoring relay from ABB protects electrical distributions in industrial automation. Engineers face downtime when phases drift or drop out, and this device provides early warning and decisive tripping to prevent unexpected outages. Certified to CE, UL/CSA, and UKCA standards, it combines reliable protection with global compliance in a compact DIN-rail form. By leveraging Easy Connect technology with push-in terminals and a 160-300 V AC measuring range, it streamlines wiring, reduces commissioning time, and delivers measurable savings for panel builders and machine integrators.
Product Information
Extended Description
1SVR740794R1300 ABB: The CM-PVS.31P relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 160-300 V AC and has a 2 c/o output with contacts rated at 250 V / 4 A. The CM-PVS.31P monitors the phase parameters over/undervoltage and phase failure. The corresponding threshold values are adjustable. Phase sequence monitoring as well as an ON or OFF tripping delay are selectable. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4016779852012
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-PVS.31, CM-PVS.41 Three-phase monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-MPx, CM-PxS Three-phase monitoring relays | Installation instructions - CM-MPx, CM-PxS Three-phase monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.132 kg
Function
Phase failure detection | Phase sequence monitoring | Over- and undervoltage monitoring
Measuring Range
(L-L) 160 ... 300 V AC
Time Range
200 ms start-up delay | 0 s or 0.1 ... 30 s tripping delay (ON or OFF)
Rated Control Supply Voltage (Us)
(L-L) 160 ... 300 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
2 c/o (SPDT) contacts
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Input Circuit 6 kV | Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
4900e7c3-484d-4044-899f-947b97d66a30 Germany (DE)
Simplified SCIP
7d8552ab-0600-4b20-92ca-a927aba32ddc Bulgaria (BG) | b608e871-386d-4e94-acc8-5c8f4500b5b5 Portugal (PT) | ae2626e0-bc81-4425-b739-2d441c6285ba Estonia (EE) | 07a57ee6-82bf-4095-b16b-ca2645530f3b Poland (PL) | edae461c-85fd-41ad-8631-eedbb8dff2fe Netherlands (NL) | 1c2cb931-2232-4142-9e19-5e2b4629e091 Hungary (HU) | df827d81-8aac-4595-87ba-4d8f27e9a3e7 Greece (GR) | c8dbfde9-b8e9-46c6-8bd9-5faef34b3458 Poland (PL) | 912205f7-4dc9-42cf-aebf-d724ea9b716f France (FR) | 137fcea8-cdfa-4246-af8f-7ca36a0a66ab France (FR) | 802c8dcc-84ed-4c61-9159-9e5cf58d0410 Germany (DE) | 6e40f2ed-fc6e-4cf0-9c6c-1bcb1fd4a2ee Sweden (SE) | 819b01f1-b119-45c5-8d34-a9d01a028e06 Sweden (SE) | 1fae5cde-5c72-48ae-88e6-3a1c37bda7d5 Spain (ES) | 477aefde-f117-4449-9c46-b44909fbc9a2 Hungary (HU) | 44be524a-1b1f-4a3c-994d-3582c85b0e17 Belgium (BE) | e032c28d-530a-48b8-a928-6b5599738b5d Italy (IT) | b3fd5182-6c04-4411-97e7-049e453ad907 Germany (DE) | 39843d90-ff8b-4a54-9296-c03fd93b8577 Czech Republic (CZ) | c7d6bdac-4b36-4cc7-b54a-8cd74927dc4b Croatia (HR) | 29ed8ba7-91b7-400f-b7b5-94272f6b6a64 Germany (DE) | 901c3659-200b-4e77-b7b6-fc7bf51fdbe6 Denmark (DK) | 7195001b-9a5c-4390-b416-7685cbcb1fae Finland (FI) | c981a2b2-d29e-4fa6-8c76-2e2720fbf208 Poland (PL) | 596de747-a62a-47a1-b40f-d2622ea5340c Norway (NO) | e846d94e-e528-42b5-9841-a7f6cf89c38d Belgium (BE) | 0a4cae25-19a5-4617-b4a8-77852a94c72f Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-UFS.., CM-MPN.., Made in Germany
cULus Certificate
cULus508_20120829-E140448
Declaration of Conformity - CCC
CCC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-MPN.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
DNV GL Certificate
DNV GL Certificate - CM-MPx.xxx, CM-PAS.xxx, CM-PSS.xxx,CM-PVS.xxx, and CM-PFS.x Three-phase monitoring relays with screw or push-in terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4016779852012
Object Classification Code
B
ETIM 7
EC001441 - Phase monitoring relay
ETIM 8
EC001441 - Phase monitoring relay
ETIM 9
EC001441 - Phase monitoring relay
eClass
V11.0 : 27371803
UNSPSC
39122332
E-Number (Finland)
2712291
E-Number (Norway)
4188154
E-Number (Sweden)
3860602
Feature: Measures L–L voltage in a 160 to 300 V AC range and provides 2 SPDT contacts (NC/NO). Business Impact: Enables precise phase fault detection and flexible control logic, reducing misstart and equipment damage. Application: Motor protection and power-distribution monitoring in automation cabinets. Feature: Phase failure detection, phase sequence monitoring, and over-/undervoltage monitoring. Business Impact: Early fault signaling and appropriate tripping delays minimize downtime and protect critical loads. Application: Industrial drives, conveyors, and packaging lines. Feature: 200 ms start-up delay and adjustable 0.1–30 s tripping delay (ON or OFF). Business Impact: Prevents nuisance trips during transient events while ensuring prompt protection when faults persist. Application: Sensitive automation lines with variable loads. Feature: Screwless push-in terminals and Easy Connect technology. Business Impact: Fast, reliable wiring with reduced field errors and maintenance time. Application: Fast panel assembly and serviceability in high-mix environments. Feature: IP50 housing and DIN rail mounting TH35-15/TH35-7.5. Business Impact: Rugged mounting suitable for harsh industrial spaces with straightforward replacement. Application: Control cabinets in manufacturing floors. Feature: Electrical durability AC-12 100000 cycles; mechanical durability 30,000,000 cycles. Business Impact: Long service life lowers replacement costs and downtime. Application: Frequent switching applications in automation networks. Feature: Certifications including CE, UKCA, UL/CSA, CCC, and DNV GL declarations. Business Impact: Ensures regulatory compliance for global deployments and simplifies audit processes. Application: Global machine builds and multi-region installations.
