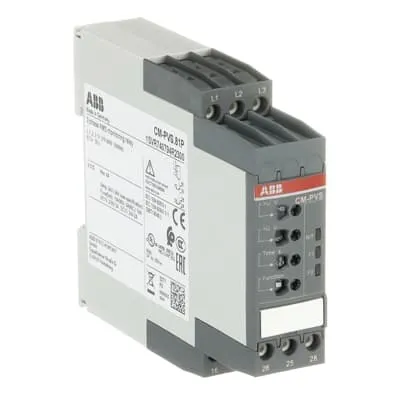

ABB CM-PVS.81P Three-phase monitoring relay - CE/UL
Part Number: 1SVR740794R2300
Quick Summary
The CM-PVS.81P three-phase monitoring relay from ABB provides reliable phase protection for motor control panels. Power faults often trigger downtime; this device detects phase loss, undervoltage, and phase sequence issues to trigger timely protective actions. It carries CE conformity, UL/CSA recognition, and CAN/CSA C22.2 No.14 approval, with robust immunity standards to align with industrial environments. With Easy Connect push-in terminals and DIN-rail mounting, it reduces installation time, while the 200–400 V AC measuring range supports a wide range of power networks. This translates to lower total cost of ownership by simplifying maintenance and ensuring consistent protection across multiple machines.
Product Information
Extended Description
1SVR740794R2300 ABB: The CM-PVS.81P relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 200-400 V AC and has a 2 c/o output with contacts rated at 250 V / 4 A. The CM-PVS.81P monitors the phase parameters over/undervoltage and phase failure. The corresponding threshold values are adjustable. Phase sequence monitoring as well as an ON or OFF tripping delay are selectable. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4016779876490
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-PVS.81 Three-phase monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-MPx, CM-PxS Three-phase monitoring relays | Installation instructions - CM-MPx, CM-PxS Three-phase monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.128 kg
Function
Phase failure detection | Phase sequence monitoring | Over- and undervoltage monitoring
Measuring Range
(L-L) 200 ... 400 V AC
Time Range
200 ms start-up delay | 0 s or 0.1 ... 30 s tripping delay (ON or OFF)
Rated Control Supply Voltage (Us)
(L-L) 200 ... 400 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
2 c/o (SPDT) contacts
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Input Circuit 6 kV | Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
a513a9d5-1f93-49b3-9fcd-71c510abb94f Germany (DE)
Simplified SCIP
df670018-61e5-4183-a3de-4ea5a5decc84 Czech Republic (CZ) | 7743ec17-fe28-4318-ae9a-bef52730628d Germany (DE) | cc5f5c9b-80db-425d-b590-5db2e808ce9c Germany (DE) | 4e5d0ed3-040c-4f97-8b35-e9798a35e950 France (FR) | e7cb5af0-629e-46dc-bc12-949d3d047434 Germany (DE) | 763b7b7d-caf3-4084-ae3b-46e1f3f0759e Italy (IT) | 6899c11a-5016-430f-9bf1-c4bb0a8ce629 Finland (FI) | 3c6ff47f-7b58-4000-95ef-23bc69f5fbc8 Poland (PL) | 4dc32959-d43b-4d7d-9f20-43351228d5ce Norway (NO) | 6d0cfbe9-c4c2-4524-8145-52a1189d23a4 Belgium (BE) | de9556cc-aa5b-4f86-974a-5799805c3c50 Denmark (DK) | a4169849-70b8-4de3-8a46-b7890fba221f Spain (ES) | 6a55a21b-cd0d-41df-a024-ce8c6c08c14d Hungary (HU) | 615da9cb-451f-4390-8445-30e3109228c7 Belgium (BE) | f06bdaf0-4693-43e8-9136-c1492d5b2ecb Sweden (SE) | 1a4162de-a14f-4c51-99fe-3d9a6924a41c Sweden (SE) | 20c0fa5d-29e9-498a-a2a5-17c8b064acf3 Germany (DE) | 05f66539-c562-4901-b9c5-9ef875bf544b France (FR) | 701fc858-9a3d-46f4-be67-bf0051b31b4b Poland (PL) | f7571115-aa20-48cf-bc63-f63c1f65b317 Poland (PL) | 861c9b80-73d2-429e-9ab2-6c343d5ab1ab Estonia (EE) | 36b56e54-fa21-44cd-95b5-fff79997c8e7 Croatia (HR) | b65e90bc-6967-4a41-a789-0b27f0eaa3ea Hungary (HU) | 8498d0d8-6b2a-45cf-9db9-5d6666c1b80e Netherlands (NL) | 7021a396-54c9-459d-bf90-1c9ff93c2cd2 Bulgaria (BG) | 4d65755d-fc85-461c-b3e2-6346e82c233f Portugal (PT) | 5767b088-ecfe-4521-9fd4-072f4d029274 Greece (GR)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-UFS.., CM-MPN.., Made in Germany
cULus Certificate
cULus508_20120829-E140448
Declaration of Conformity - CCC
CCC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-MPN.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.153 kg
Package Level 1 EAN
4016779876490
Object Classification Code
B
ETIM 7
EC001441 - Phase monitoring relay
ETIM 8
EC001441 - Phase monitoring relay
ETIM 9
EC001441 - Phase monitoring relay
eClass
V11.0 : 27371803
UNSPSC
39122332
E-Number (Finland)
2712295
E-Number (Norway)
4188158
E-Number (Sweden)
3860604
Feature: Phase failure detection, phase sequence monitoring, and over-/undervoltage monitoring. Business Impact: Early fault detection reduces unexpected trips and equipment damage, improving line reliability. Application: Ideal for motor control panels and drives in conveyors and pumps where intact phase integrity is critical. Feature: Adjustable thresholds and delays (thresholds and tripping delay 0–30 s; startup delay 200 ms). Business Impact: Tailors protection to equipment, minimizing nuisance trips while preserving safety margins. Application: Fit for applications with varying motor start dynamics and process sensitivity. Feature: Two SPDT outputs (2 c/o) for signaling and interlocking. Business Impact: Simplifies control logic and alarm signaling, reducing wiring complexity and integration costs. Application: Interfaces with PLCs and safety interlocks in automation loops. Feature: Easy Connect technology with push-in terminals (2x 0.5–1.5 mm²) and 8 mm wire stripping. Business Impact: Faster, error-free wiring and maintenance, lowering installation time and field maintenance costs. Application: Preferred in panel assembly where reliability and speed matter. Feature: DIN rail mounting on TH35 rails (TH35-15 or TH35-7.5) and IP50 housing. Business Impact: Easy deployment in standard control enclosures with robust environmental protection. Application: Ship-ready for industrial cabinets and machine centers. Feature: Broad standards and certifications (CE, UL/CSA, CAN/CSA C22.2 No.14). Business Impact: Simplifies regulatory compliance across EU and North American installations. Application: Suitable for global machine builders and panel integrators.
Get a Quick Quote for a ABB 1SVR740794R2300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR740794R2300?
Enquire Now
FAQs
Mount the CM-PVS.81P on a TH35 DIN rail (TH35-15 or TH35-7.5) in the control panel. Use the screwless push-in terminals for easy connections and wire 2x 0.5–1.5 mm² conductors with an 8 mm stripping length. Connect the two SPDT outputs to the control circuit or PLC inputs, and supply the device with 200–400 V AC as specified. Ensure proper clearance and verify insulation ratings before operation.
The CM-PVS.81P provides phase failure detection, phase sequence monitoring, and over-/undervoltage monitoring with adjustable thresholds and a selectable tripping delay of 0–30 seconds (and a 200 ms start-up delay). These features prevent motor misoperation, reduce downtime from power quality issues, and protect connected equipment from voltage anomalies.
Yes. The device operates from -25 °C to +60 °C and supports mounting on standard DIN rails. It features an IP50-rated housing with IP20 terminals, making it well-suited for factory environments. The unit is designed to meet multiple international standards, aiding integration in global automation projects.
The CM-PVS.81P carries CE conformity, UL 508 / cULus recognition, and CAN/CSA C22.2 No.14 certification, among others. These certifications confirm compliance with essential safety and performance requirements across Europe and North America, simplifying procurement for regulated industries and ensuring consistent protection in panel installations.
The relay features maintenance-free Easy Connect technology and is built for long life, with electrical durability rated for up to 100,000 AC-12 cycles and 30,000,000 mechanical operations. This translates to lower maintenance costs and fewer field interventions, particularly in high-cycle automation environments.
