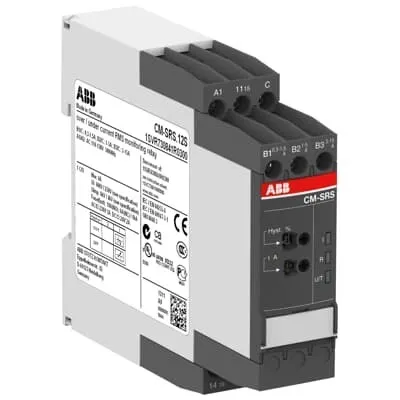

ABB 1SVR740840R0200 Current Monitoring Relay - SPDT Output
Part Number: 1SVR740840R0200
Quick Summary
Current monitoring relay ABB CM-SRS.11P provides reliable over- or undercurrent monitoring for single‑phase circuits in industrial machinery. Engineers often face nuisance trips and wiring access challenges that slow startups; this device offers maintenance‑free operation with push‑in terminals and fast DIN rail mounting. It is designed for CE and UL/CSA certifications, and UL 508 readiness ensures regulatory compliance in control panels, while its IP50 housing protects the electronics in typical factory environments. For panel builders and OEMs, streamlined installation and configurable hysteresis translate into shorter commissioning cycles and lower service costs, while the 24‑240 V AC/DC supply compatibility supports a wide range of power architectures and simplifies procurement.
Product Information
Extended Description
1SVR740840R0200 ABB: The CM-SRS.11P is a single-functional current monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 1 c/o (SPDT) output contact rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC currents with 3 measuring ranges: 3-30 mA, 10-100 mA and 0.1-1 A and works according to the open-circuit principle. The CM-SRS.11P is configurable for over- or undercurrent monitoring, the hysteresis is adjustable within a range of 3 to 30 % of the threshold value. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4016779852463
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-SRS.1P; CM-SRS.1S Current monitoring relays, single-phase AC/DC
Instructions and Manuals
Instruction Sheet / Manual - CM-SxS Single-phase current monitoring relays | Installation instructions - CM-SxS Single-phase current monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.137 kg
Function
Over- or undercurrent monitoring
Measuring Range
3 ... 30 mA | 10 ... 100 mA | 0.1 ... 1 A
Rated Control Supply Voltage (Us)
24 ... 240 V AC/DC
Output
1 c/o (SPDT) contact
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 6 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 6 kV | Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 250 V | Supply Circuit / Measuring Circuit 600 V | Supply Circuit / Output Circuit 250 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -20 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-28255-UL
CQC Certificate
CQC Certificate, Relays, CM-SRS.., CM-SFS.., CM-ESS..,CM-EFS.., CM-TCS.., Made in Germany
cULus Certificate
cULus508_20120203-E140448
Declaration of Conformity - CCC
CCC Certificate, Relays, CM-SRS.., CM-SFS.., CM-ESS..,CM-EFS.., CM-TCS.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-ExS.xxx, CM-SxS.xxx Single-phase current and voltage monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-ExS.xxx, CM-SxS.xxx Single-phase current and voltage monitoring relays
DNV GL Certificate
DNV Certificate - Current monitoring relays CM-SFS.x and CM-SRS.x with screw or push-in terminals
EAC Certificate
EAC Certificate - Measuring and monitoring relays CM-xxS.xxx and CM-xxN.xxx range in the new housing
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.159 kg
Package Level 1 EAN
4016779852463
Object Classification Code
B
ETIM 7
EC001440 - Current monitoring relay
ETIM 8
EC001440 - Current monitoring relay
ETIM 9
EC001440 - Current monitoring relay
eClass
V11.0 : 27371802
UNSPSC
39122332
E-Number (Finland)
2712300
E-Number (Norway)
4188047
E-Number (Sweden)
3860648
Feature: Wide supply voltage range of 24-240 VAC/DC. Business Impact: Enables use with diverse power architectures, reducing the need for separate power supplies and simplifying stocking. Application: Retrofit projects and new machine builds where single supply rails vary by site. Feature: Three measuring ranges—3-30 mA, 10-100 mA, 0.1-1 A. Business Impact: Flexible sensing across small control signals to full motor currents improves protection accuracy and reduces nuisance trips. Application: Motor protection, PLC signaling, and load monitoring in single‑phase circuits. Feature: 1 c/o SPDT output. Business Impact: Simple, robust signaling to logic or PLC inputs with straightforward wiring schemes, cutting integration time. Application: Interlocking, fault signaling, and control‑loop monitoring in control panels. Feature: Open‑circuit measuring principle with adjustable hysteresis (3-30% of threshold). Business Impact: Stable switching behavior under fluctuating loads, minimizing false trips and extending equipment life. Application: Over/undercurrent protection with site‑tuned trip thresholds. Feature: Easy Connect push‑in terminals and DIN rail mounting (TH35) for fast installation. Business Impact: Reduced assembly time and improved reliability from secure terminations, lowering maintenance costs. Application: OEM panel assemblies and maintenance‑friendly retrofit deployments. Feature: Comprehensive standards and durability (IP50 housing, UL/CSA, EN/IEC standards). Business Impact: Quicker regulatory approval and longer service life in harsh environments. Application: Industrial control panels subject to rigorous safety and EMI requirements.
Get a Quick Quote for a ABB 1SVR740840R0200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR740840R0200?
Enquire Now
FAQs
The CM-SRS.11P is designed for DIN rail mounting on TH35-15 or TH35-7.5 rails (IEC 60715). It uses screwless push-in terminals compatible with 2x0.5-1.5 mm² conductors, and requires about 8 mm of strip length. This combination supports fast, reliable terminations and straightforward panel layout during installation.
It provides three measuring ranges: 3-30 mA, 10-100 mA, and 0.1-1 A, with a RMS measuring principle suitable for both DC and AC currents. The device offers a 1 c/o SPDT output rated up to 4 A at 230 V and can be powered from 24-240 V AC/DC, enabling flexible integration with most control systems.
Yes. The CM-SRS.11P aligns with CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, and IEC/EN 61000-6-2/6-3, with UL 508 listed compatibility. It also supports CE and UKCA declarations, and IP50 housing ensures protection in typical industrial environments, simplifying regulatory approvals for panel builds.
Key benefits include Easy Connect push-in terminals for rapid termination, a compact footprint (22.5 mm wide) suited to dense panels, and DIN rail compatibility that accelerates installation. A sealable transparent cover accessory helps prevent unauthorized changes, while a robust mechanical/durability profile (millions of cycles) supports long service life with minimal maintenance.
Electrical durability is rated for AC-12 at up to 100,000 cycles, while mechanical durability reaches 30,000,000 cycles, supporting steady operation in high‑demand environments. Combined with IP50 housing and wide operating temperature range, the relay remains reliable from installation through ongoing production, reducing replacement costs and downtime.
