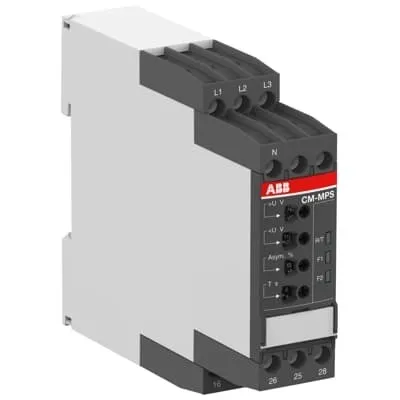

ABB 1SVR740885R1300 Three-phase monitoring relay 90-170 VAC
Part Number: 1SVR740885R1300
Quick Summary
The CM-MPS.11P three-phase monitoring relay protects industrial panels by monitoring voltage and phase conditions. In practice, untracked voltage dips and phase faults lead to costly downtime and equipment damage. It complies with CE and UL/CSA certifications, CAN/CSA C22.2 No.14 and UL 508, supporting robust global compliance. For panel builders, Easy Connect push-in terminals and DIN-rail mounting speed wiring and commissioning, delivering faster time-to-protect. Operating from 90-170 VAC with 50/60 Hz, it uses 2 SPDT contacts rated at 4 A, and offers adjustable tripping delays from instantaneous to 30 seconds with a 200 ms start‑up delay. This combination reduces misconfiguration and enhances system resilience in production lines.
Product Information
Extended Description
1SVR740885R1300 ABB: The CM-MPS.11P is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 90-170 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay is also suitable to monitor single-phase mains. It monitors all phase parameters such as over/undervoltage, phase unbalance, phase failure as well as an interrupted neutral. The corresponding threshold values are adjustable. Phase sequence monitoring as well as an ON or OFF tripping delay are selectable. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4016779852067
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-MPS.11, CM-MPS.31 Multifunctional three-phase monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-MPx, CM-PxS Three-phase monitoring relays | Installation instructions - CM-MPx, CM-PxS Three-phase monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.137 kg
Function
Over- and undervoltage monitoring | Phase failure detection | Phase unbalance detection | Phase sequence monitoring | Interrupted neutral monitoring
Measuring Range
(L-N) 90 ... 170 V AC
Time Range
0 s or 0.1 ... 30 s tripping delay (ON or OFF) | 200 ms start-up delay
Rated Control Supply Voltage (Us)
(L-N) 90 ... 170 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
2 c/o (SPDT) contacts
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Input Circuit 6 kV | Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
4d1afad1-0abe-4022-bca9-419040c1fa38 Germany (DE)
Simplified SCIP
6d20e6ef-76c2-4407-b760-46f0cc62c772 Hungary (HU) | 213270b5-4a24-47d8-a1ea-7ed489cec131 Netherlands (NL) | 906d6e7b-903f-4e3b-8431-9e43f82267ee Denmark (DK) | 4977273d-207f-4d91-8054-6c49649b1fe1 Poland (PL) | a1fb97cb-780f-4c26-adb8-7df22d8896bb Norway (NO) | 5f5f869c-1e2e-4616-858c-9b93ec131d35 Estonia (EE) | a3e73b03-f4f2-477d-bf5e-7eaa7f7f5b74 Croatia (HR) | bc924c40-5a32-4661-97a1-ca98733fb4c5 Germany (DE) | ff4fc583-71b8-4da1-8656-d02e64ba3ce7 Czech Republic (CZ) | 6f84e828-e4af-4e6c-89d1-95f6b82cbf47 Italy (IT) | d4eb48b9-55ff-468c-a63d-ffc70a4879c6 Spain (ES) | c10f071b-c1ba-4709-ad4e-a64f9ef0a677 Poland (PL) | 3f29626f-c93c-4e7c-8bb8-fcc1d61f1fde Bulgaria (BG) | 85513ba0-2bfc-4600-81d2-dfd0284d06dd Portugal (PT) | 4ac946ce-998a-408c-a80e-018b33652627 Greece (GR) | 5d9f499d-b8c0-4559-a3cd-e103cec5c6a7 Poland (PL) | 0d1bfd8c-e080-43aa-a032-5a1d17b2e984 Sweden (SE) | 86442d29-cfb5-44dc-a7d2-3fa199a60505 Germany (DE) | 528870a8-cb30-495a-ac14-8034dac69817 Sweden (SE) | 64ee8ea1-868b-49fb-b2b6-be7ed04d2206 France (FR) | f1329cec-6cda-4670-9d53-7624bf5e8d19 France (FR) | fa2c69cd-a79a-4f23-b14e-b9772b9fa861 Hungary (HU) | 99577bea-fb54-41c6-aaab-a70efe0918dc Belgium (BE) | 67c4d37c-a871-46f5-8939-5cf43c909620 Germany (DE) | afa8c4fe-838b-40bf-8fc8-46f1b6a43aea Belgium (BE) | 5caa1559-b3b8-4ea5-a620-85852a254525 Germany (DE) | 61d00f71-2e61-4eb8-a82c-99aec869d9f6 Finland (FI)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-27947-UL
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-UFS.., CM-MPN.., Made in Germany
cULus Certificate
cULus508_20120829-E140448
Declaration of Conformity - CCC
CCC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-MPN.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
DNV GL Certificate
DNV GL Certificate - CM-MPx.xxx, CM-PAS.xxx, CM-PSS.xxx,CM-PVS.xxx, and CM-PFS.x Three-phase monitoring relays with screw or push-in terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.162 kg
Package Level 1 EAN
4016779852067
Object Classification Code
B
ETIM 7
EC001441 - Phase monitoring relay
ETIM 8
EC001441 - Phase monitoring relay
ETIM 9
EC001441 - Phase monitoring relay
eClass
V11.0 : 27371803
UNSPSC
39122332
E-Number (Finland)
2712269
E-Number (Norway)
4188131
E-Number (Sweden)
3860608
Feature 90-170 V AC measuring range → Business Impact: Enables accurate protection across common industrial mains, reducing nuisance trips and ensuring reliable monitoring in diverse plant environments. Application: motor control centers and panel assemblies where supply voltage can vary. Feature 2 c/o SPDT outputs → Business Impact: Flexible control logic for alarms, interlocks, and remote signaling, lowering wiring complexity and enabling safer shutdown sequences. Application: machine protection schemes and safety interlock circuits. Feature Adjustable thresholds and phase monitoring → Business Impact: Site-specific tuning cuts false trips and preserves motor health during voltage sags, unbalance, or phase loss. Application: data centers, process lines, and packaging machines. Feature Push-in terminals with Easy Connect Technology → Business Impact: Faster, safer wiring with reduced field errors, accelerating commissioning and maintenance. Application: installation in control panels and upgrade projects. Feature DIN rail mounting TH35 compatibility → Business Impact: Streamlined installation in standard enclosures, minimizing space and mounting time. Application: compact control panels and modular automation schemes. Feature Rated currents AC-12 4 A / AC-15 3 A / DC-12 4 A / DC-13 2 A → Business Impact: Clear load capability guidance supports reliable switching of relays and contactors, reducing overheating risk. Application: signaling, interlocking, and auxiliary control circuits. Feature 50/60 Hz compatibility and 2 c/o contacts → Business Impact: Consistent performance across global electrical networks with flexible control outputs. Application: international machinery and multi-site installations.
Get a Quick Quote for a ABB 1SVR740885R1300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR740885R1300?
Enquire Now
FAQs
Install the CM-MPS.11P on a standard TH35 DIN rail (TH35-7.5 or TH35-15) in a control panel. Use the push-in terminals for 2x0.5-1.5 mm² conductors, wire stripping length of 8 mm, and ensure the device is firmly seated to maintain IP50 housing protection. The 50/60 Hz rated supply (L-N 90-170 VAC) powers the device, while the SPDT outputs control downstream devices.
The CM-MPS.11P monitors line-to-neutral voltage in the range of 90 to 170 V AC, suitable for common three-phase and single-phase mains in industrial environments. It supports phase monitoring functions with adjustable thresholds for accurate fault detection.
The relay features 2 changeover contacts (SPDT). Operational current ratings are AC-12 up to 4 A at 230 V and AC-15 up to 3 A, with DC-12 up to 4 A and DC-13 up to 2 A. These ratings guide load selection and safe switching of alarms or interlock circuits.
The CM-MPS.11P conforms to CE and UL/CSA standards, and CAN/CSA C22.2 No.14, with UL 508 recognition. This ensures regulatory compliance across European and North American markets, supporting safe integration into compliant control systems.
It supports overvoltage/undervoltage, phase failure, phase unbalance, phase sequence, and interrupted neutral monitoring. Thresholds and delay options are adjustable to site requirements, including a delay range from instantaneous to 30 seconds and a 200 ms start-up delay, enabling tailored protection schemes.
