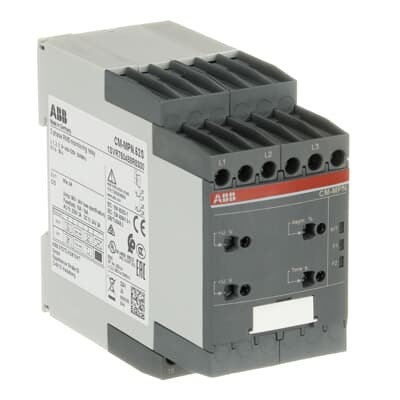

ABB CM-MPN.62S Three-phase Monitoring Relay - 3x450-720VAC
Part Number: 1SVR750488R8300
Quick Summary
ABB CM-MPN.62S is a three-phase monitoring relay that safeguards power distribution by continuously supervising L1-L2-L3 voltages, phase balance, and sequence in motor and drive circuits. This device helps prevent costly downtime caused by voltage irregularities and misphasing, a common challenge in industrial plants. The CM-MPN.62S offers adjustable thresholds, selectable phase sequence monitoring, and automatic phase correction to minimize nuisance trips. With two SPDT outputs rated 250 V / 4 A and configurable signaling to PLCs and alarms, it integrates cleanly into control cabinets. CE conformance supports European installations, with UL/CSA and RoHS options available regionally. German-made CM range devices align with stringent European manufacturing standards for reliable automation equipment.
Product Information
Extended Description
1SVR750488R8300 ABB: The CM-MPN.62S is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 450-720 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable. The CM-MPN.62S also offers selection of phase sequence monitoring, automatic phase sequence correction as well as an ON or OFF tripping delay. The output contacts can be configured as 1x2 c/o (SPDT) contacts (common signal) or 2x1 c/o (SPDT) contact (separate signal for over- and undervoltage thresholds) operation. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRAPR001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
0 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHNOR001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CLABB001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Note
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Storage Location
4001
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
COABB001EXPU
Storage Location
4001
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
0 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPRMLCEXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DKSER001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DUABB001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DUABB003EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EESER001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
ESATD001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Note
No
Product Availability Class
Standard delivery time
Lead Time
30 day
Country of Origin
Germany (DE)
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
0 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
FISER001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
FRAUT001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GRABB001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABBRLCEXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
ITIND002EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
NLABB021EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
0 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
NOATDRLCEXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
TRDMD001EXPU
Storage Location
4001
Country of Origin
Germany (DE)
Criticality
No
Lead Time
30 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB251EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Criticality
No
Lead Time
0 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
ZATAD021EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
EAN
4016779851923
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-MPN.52; CM-MPN.62; CM-MPN.72 Multifunctional three-phase monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-MPx, CM-PxS Three-phase monitoring relays | Installation instructions - CM-MPx, CM-PxS Three-phase monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Height
85.6 mm
Product Net Depth / Length
104.8 mm
Product Net Weight
0.229 kg
Function
Automatic phase sequence correction | Over- and undervoltage monitoring | Phase failure detection | Phase unbalance detection | Phase sequence monitoring
Measuring Range
(L-L) 450 ... 720 V AC
Time Range
0 s or 0.1 ... 30 s tripping delay (ON or OFF) | 200 ms start-up delay
Rated Control Supply Voltage (Us)
(L-L) 450 ... 720 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Input Circuit 8 kV | Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 1000 V | Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 1x 0.5 ... 2.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 1x 0.5 ... 4 mm² | Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
8 mm
Recommended Screw Driver
4.5 | 0.8 x 4 | Pozidriv 1
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 1x 18-14 AWG | Flexible 2x 18-16 AWG | Rigid 2x 20-14 AWG | Rigid 1x 20-12 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
ed8406db-b97c-4121-a8ab-f4c938737332 Germany (DE)
Simplified SCIP
a743da96-07b1-4512-b1a3-e8870c3c04bc Germany (DE) | 596e5c42-317c-42c4-aec6-5d102e078f00 Germany (DE) | bd87286b-b527-420b-aa5f-530cd58e0645 Belgium (BE) | 3c13dd38-6ef6-47f8-9cab-3c5d7859ccd2 Spain (ES) | 21fd10cc-8e47-4fcc-ad74-735c765c5dce France (FR) | f199a684-090d-4a18-9c09-c5f842bde5b5 Sweden (SE) | 5bdcbcf8-23c5-4d0c-a82b-8803d04c8810 Sweden (SE) | 8af1df27-815f-4875-87ba-1e87f6fae979 Poland (PL) | dddebbb3-ebe3-41b3-b02d-99e23fba9bde France (FR) | a2468177-5115-43eb-b88d-2a987faadf14 Hungary (HU) | 1719eedc-510c-4e76-b162-4ada9b424a07 Belgium (BE) | 504f76ac-7d6c-46cf-af26-4a5199414bb5 Netherlands (NL) | d46f6dfe-be19-4aa3-bcda-904e7a7513ba Poland (PL) | f21400b8-6000-4908-9b0f-5c719238aaad Hungary (HU) | 33eec99d-5cae-47b2-b29b-ab5969a7ce86 Greece (GR) | 8b35842f-9962-4c83-b0ae-de2cb0803565 Portugal (PT) | c11f42de-7049-4914-8d6e-4d5099bd0e82 Bulgaria (BG) | f6ad2335-7d96-4207-a2cc-4b2e660a867e Germany (DE) | c1eca859-ac61-4fa9-b121-bffb4de2e7d8 Italy (IT) | 77105afd-4155-4212-92d3-c717e214c9d5 Estonia (EE) | 180a6f4d-0e0d-4836-b89d-bda3c4fb7103 Croatia (HR) | 61c288ed-d0a8-49b9-b22c-0768269c8f74 Germany (DE) | aa76cdbe-b189-4e3b-9031-27577d1ac39d Denmark (DK) | 8416e21a-06ec-4b7e-ab21-d40c62540bc6 Czech Republic (CZ) | 7a77d4a3-c650-4917-8c4a-f023578e0d1a Norway (NO) | 65d2d722-ff32-48d7-9e6b-e25bc27806b8 Poland (PL) | b50c1051-ffb2-4f5f-acf7-8cf48e82de1e Finland (FI)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-27946-UL
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-UFS.., CM-MPN.., Made in Germany
cULus Certificate
cULus508_20120829-E140448
Declaration of Conformity - CCC
CCC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-MPN.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
DNV GL Certificate
DNV GL Certificate - CM-MPx.xxx, CM-PAS.xxx, CM-PSS.xxx,CM-PVS.xxx, and CM-PFS.x Three-phase monitoring relays with screw or push-in terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
52.5 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.254 kg
Package Level 1 EAN
4016779851923
Object Classification Code
B
ETIM 7
EC001441 - Phase monitoring relay
ETIM 8
EC001441 - Phase monitoring relay
ETIM 9
EC001441 - Phase monitoring relay
eClass
V11.0 : 27371803
UNSPSC
39122332
E-Number (Finland)
2712266
E-Number (Norway)
4188144
E-Number (Sweden)
3860593
Wide measuring voltage range of 450-720 VAC allows use across European three-phase systems, reducing part diversity and simplifying spares management. Feature → Business Impact → Application: This enables motor drivers and switchgear to be protected against over/undervoltage and phase faults, decreasing unplanned downtime in manufacturing lines. Application: Motor protection in conveyors, pumps, and fans within automation systems. The CM-MPN.62S provides adjustable thresholds and selectable phase sequence monitoring, which translates to fewer nuisance trips and better process stability in critical applications. Feature → Business Impact → Application: Automatic phase sequence correction reduces commissioning time and cross-wiring errors, improving startup reliability in panel assemblies. Application: New installs in automotive or process industries where precise bus timing matters. The 2 x SPDT outputs (250 V / 4 A) offer flexible signaling to PLCs and alarms, lowering wiring complexity and enabling staged fault signaling. Feature → Business Impact → Application: Configurable outputs as 1x2 c/o or 2x1 c/o supports tailored control logic for alarms, interlocks, or remote signaling in machine rooms. The sturdy screw-terminal double-chamber cage design simplifies field wiring and reduces terminal creep, while an optional sealable cover guards against tampering, improving maintenance cycles. Application: Panel building in harsh environments where reliability and security matter. Originating from Germany, the CM range delivers predictable performance in standard delivery timeframes for busy maintenance programs and expansions.
Get a Quick Quote for a ABB 1SVR750488R8300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR750488R8300?
Enquire Now
FAQs
Install in standard control cabinets with a 3-phase supply in the range of 450-720 VAC. Connect L1, L2, L3 to the monitored lines, wire the two SPDT outputs to the control circuit or alarm relay, and use screw-terminal double-chamber cages for secure, vibration-resistant connections. Consider using the sealable cover to prevent tampering in environments with access control requirements.
The device monitors 450-720 VAC at 50/60 Hz, provides 2 SPDT outputs rated at 250 V / 4 A, and offers an adjustable trip delay from instantaneous up to 0.1–30 s. It supports configurations of 1x2 c/o or 2x1 c/o, with configurable thresholds for overvoltage, undervoltage, phase unbalance, and phase failure.
Yes. It includes over/undervoltage, phase sequence monitoring with optional automatic correction, and phase failure detection. Its configurable thresholds and flexible signaling enable robust motor protection in drives and feeders, reducing motor stress, improving uptime, and enabling safer startups in process and manufacturing environments.
Look for CE conformity to support European installations and RoHS compliance for electronics. Regional UL/CSA options may be available, depending on the market. Always confirm with the supplier that the specific lot and configuration meet local electrical standards and that any protective covers or accessories are approved for your enclosure rating.
By reducing nuisance trips and enabling precise protection thresholds, the relay lowers unplanned downtime and equipment wear. Its robust wiring with screw terminals simplifies maintenance, while the option for sealable covers reduces tampering risk. Over the device’s lifecycle, this translates to lower maintenance costs and improved asset protection in automated production lines.
