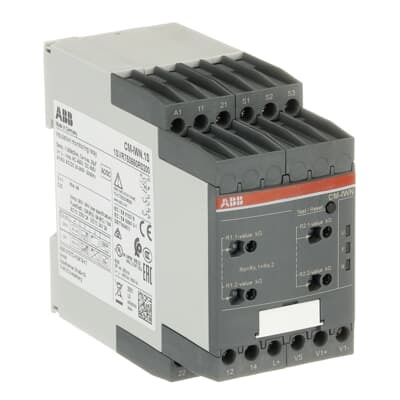

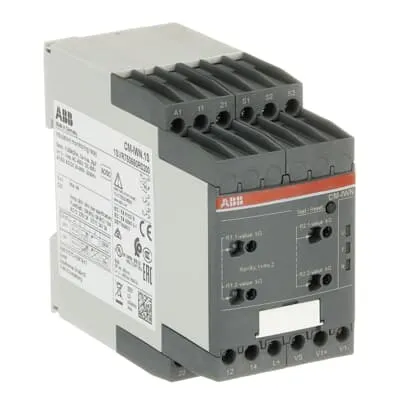

ABB 1SVR750660R0200 Insulation Monitoring Relay - CE
Part Number: 1SVR750660R0200
Quick Summary
Insulation monitoring relay CM-IWN.1S monitors insulation resistance in unearthed IT systems to protect personnel and equipment. In practice, many facilities face unseen leakage that triggers faults or unsafe conditions long before alarms. The device complies with IEC 61557-8 and carries CE and UL/CSA approvals, with a rugged IP50 housing suitable for industrial environments. Its configurable outputs support 2 x changeover or 1 x 2 changeover contacts, and the rated control supply voltage covers 24 to 240 V AC/DC, allowing seamless integration with existing control panels. By enabling reliable insulation monitoring without invasive wiring, it delivers tangible business value in automation and control systems while reducing downtime and maintenance costs.
Product Information
Extended Description
1SVR750660R0200 ABB: The CM-IWN.1S serves to monitor insulation resistance in accordance with IEC 61557-8 in unearthed IT AC systems, IT AC systems with galvanically connected DC circuits, or unearthed IT DC systems with a voltage up to 400 V AC and 600 V DC. The measuring range can be extended up to 690 V AC and 1000 V DC by using the coupling unit CM-IVN. It can be configured to the requirements of the applications and therefore used multi-functional.
EAN
4016779852623
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-IWN.1x Insulation monitoring relay with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-IWN.1 Insulation monitoring relay, with screw or push-in terminals
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Height
85.6 mm
Product Net Depth / Length
104.8 mm
Product Net Weight
0.241 kg
Function
Unearthed AC systems | Unearthed DC systems | Unearthed mixed AC / DC systems | Up to 400 V AC | Up to 600 V DC
Measuring Range
1 ... 200 kΩ
Rated Control Supply Voltage (Us)
24 ... 240 V AC/DC
Rated Frequency (f)
Measuring Circuit 15 ... 400 Hz
Output
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 6 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 6 kV | Supply Circuit / Output Circuit 6 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Measuring Circuit 600 V | Supply Circuit / Output Circuit 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
System Leakage Capacitance (CE)
20 µF
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 1x 0.5 ... 2.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 1x 0.5 ... 4 mm² | Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
8 mm
Recommended Screw Driver
0.8 x 4
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61326-2-4 | IEC/EN 61557-1 | IEC/EN 61557-8 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 1x 18-14 AWG | Flexible 2x 18-16 AWG | Rigid 1x 20-12 AWG | Rigid 2x 20-14 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-30302-A1-UL
CCC Certificate
CCC Certificate - Insulation monitoring relays CM-IWS.x, CM-IWN.x, and coupling unit CM-IVN, old and new housing
CQC Certificate
CQC Certificate, Insulation Monitoring Relays, CM-IWS.xx, CM-IWN.xx, CM-IVN.x, Made in Germany
cULus Certificate
cULus508_20120727-E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Insulation Monitoring Relays, CM-IWS.xx, CM-IWN.xx, CM-IVN.x, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-IWS.xx, CM-IWN.xx, CM-IVN.x Insulation monitoring relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-IWS.xx, CM-IWN.xx, CM-IVN.x Insulation monitoring relay
DNV GL Certificate
DNV GL Certificate - CM-IWS.1, CM-IWS.2, CM-IWN.1, CM-IVN insulation monitoring relays
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
52.5 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.27 kg
Package Level 1 EAN
4016779852623
Object Classification Code
B
ETIM 7
EC001444 - Insulation and earth fault monitoring relay
ETIM 8
EC001444 - Insulation and earth fault monitoring relay
ETIM 9
EC001444 - Insulation and earth fault monitoring relay
eClass
V11.0 : 27371807
UNSPSC
39122331
E-Number (Finland)
2712256
E-Number (Norway)
4187802
E-Number (Sweden)
3860657
Feature 1: Measuring range of 1 … 200 kΩ enables precise fault detection across unearthed IT networks, reducing nuisance trips and enabling proactive maintenance. Business impact: faster diagnostics and lower downtime; Application: IT network monitoring in industrial control panels integrated with CM-IWN.1S. Feature 2: Versatile power supply of 24 … 240 V AC/DC provides flexible integration with existing PLCs and controllers, minimizing power conversion requirements and simplifying documentation for compliance. Business impact: streamlined installation and reduced wiring complexity; Application: retrofits in automation cabinets. Feature 3: Output configuration of 2 x 1 c/o or 1 x 2 c/o contacts allows tailored signaling for alarms, interlocks, or safety circuits. Business impact: improved fault signaling and safer shutdown logic; Application: safety interlocks in IT-enabled systems. Feature 4: Screw terminals and DIN rail mounting options (TH35-15 or TH35-7.5) enable quick, vibration-resistant installs in standard control enclosures. Business impact: faster field deployment and reduced commissioning time; Application: machine or plant-wide protection schemes. Feature 5: Optional coupling with CM-IVN extends measuring range up to 690 V AC / 1000 V DC, unlocking use in larger IT/DC networks. Business impact: scalable protection for growing systems; Application: expanding IT infrastructure without replacing relays. Feature 6: Robust electrical and environmental ratings, including IP50 housing, -25 to +60°C operation, and UL/CSA/ CE compliance, support long-term reliability in harsh industrial environments. Business impact: lower maintenance costs and higher uptime; Application: critical process controls in automation and control systems.
Get a Quick Quote for a ABB 1SVR750660R0200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR750660R0200?
Enquire Now
FAQs
CM-IWN.1S can be paired with the CM-IVN coupling unit to extend the measuring range from 1–200 kΩ up to 690 V AC and 1000 V DC. This makes it suitable for larger unearthed IT networks while preserving its 24–240 V AC/DC control supply and 2 x changeover outputs.
CM-IWN.1S is designed for DIN rail mounting on TH35-15 or TH35-7.5 rails. It features screw terminals for secure connections and a recommended tightening torque of 0.6–0.8 N·m. This simplifies installation in standard automation panels and minimizes space impact.
Key specs include measuring range 1–200 kΩ, control supply 24–240 V AC/DC, two changeover contacts (2 x 1 c/o or 1 x 2 c/o), and rated currents of up to 4 A (AC-12) and 4 A (DC-12) at 24 V. It supports IP50 housing and UL/CSA, CE approvals for reliable industrial use.
Yes. For UL/CSA circuits, the device provides a 300 V AC maximum operating voltage on the Output Circuit, B300 contact rating, and flexible conductor accessories for UL/CSA wiring. It is designed to fit safety and performance expectations in North American electrical installations.
CM-IWN.1S carries IEC/EN 61557-8 and related IEC standards, CE, UKCA, UL/CSA, CB, CCC, and CQC certifications. It is designed for compliance in older and new installations, with documentation including DoC/Declaration of Conformity, RoHS compliance, and environmental resilience.
