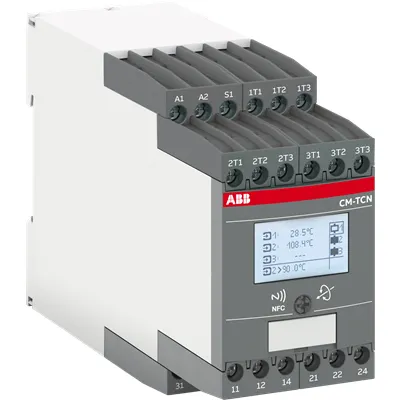

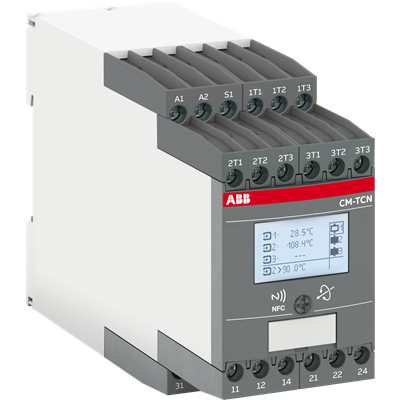

ABB 1SVR750740R0110 CM-TCN.011S Temp Relay - UL60947-5-1
Part Number: 1SVR750740R0110
Quick Summary
CM-TCN.011S temperature monitoring relay from ABB provides precise overtemperature and undertemperature supervision for industrial equipment. When you need fast diagnostics and minimal downtime, delays in configuration or sensor mismatch can cost you days. Key certifications and capabilities—CE and UKCA declarations, UL/CSA listing, and IP50 housing—support safe, compliant installation in harsh environments. The device supports up to three sensor circuits and communicates with ABB EPiC for streamlined parameterization, even in a non-powered state, reducing installation time. In practice, this translates to faster commissioning, lower wiring complexity, and reliable protection across automotive, HVAC, and process automation systems.
Product Information
Extended Description
1SVR750740R0110 ABB: The CM-TCN.011S is an innovative temperature monitoring relay from the CM temperature monitors range. This monitoring relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 3 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCN.011S is able to measure temperatures with up to three sensor circuits using different type of sensors PT100, PT1000, PTC or NTC. The LCD at the front of the relay shows the currently measured values and maintenance data. The CM-TCN.011S can be configured exactly as you need either via a black-lit LCD or smartphone app. Parametrization and configuration are just one touch away with the ABB EPiC app – even in a non-powered state – reducing installation time by 80%. The device offers screw connection technology with double-chamber cage connection terminals.
Lead Time
49 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
EAN
4013614552519
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog Smart temperature monitoring relays CM-TCN & CM-TCS
Instructions and Manuals
Installation instructions - CM-TCN.011 (product revision ≥ G) and CM-TCN.012 Temperature monitoring relays | Manual CM-TCN
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.265 kg
Function
Overtemperature monitoring | Undertemperature monitoring | Over- and undertemperature monitoring
Measuring Range
-200 ... 850 °C
Sensor Type
PT100; PT1000; PTC; NTC; bimetal switch
Rated Control Supply Voltage (Us)
24 ... 240 V AC/DC
Rated Frequency (f)
Supply Circuit 50 Hz | Supply Circuit 60 Hz | Supply Circuit DC Hz
Output
3 x 1 c/o contacts, configurable
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
12 V | 100 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 6 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 6 kV | Supply Circuit / Output Circuit 6 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Measuring Circuit 600 V | Supply Circuit / Output Circuit 600 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
2
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 1x 0.5 ... 2.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 1x 0.5 ... 4 mm² | Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
8 mm
Recommended Screw Driver
0.8 x 4 | 4.5 | Pozidriv 1
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 1x 18-14 AWG | Flexible 2x 18-16 AWG | Rigid 1x 20-12 AWG | Rigid 2x 20-14 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
9494b35d-fd64-486d-9382-8c6833858181 Germany (DE)
Simplified SCIP
f04f54e5-603b-4d97-be35-6c7ea2a58780 Germany (DE) | 325f9a0a-5047-43a5-93e2-cb28c47c4f58 Poland (PL) | 209af901-abf0-4620-bf80-e1b52d96a899 Netherlands (NL) | c61fdec8-b067-41ca-904b-651d6b1a883d Estonia (EE) | 479b5846-f7dd-4518-bc14-6ed46a37f3a4 Greece (GR) | 7a23c79b-4274-4f33-b1a9-b34bb8d270e0 Portugal (PT) | 4239644a-72ad-4d95-a591-ae7811e096a0 Sweden (SE) | 2a4a67e6-4002-4800-8ab6-af093f60d7bb Poland (PL) | 42b956b0-66c4-4b91-9999-90fe5a8f5be6 Norway (NO) | af54c2c3-3c03-46e2-b7d6-7a8431a141e5 Finland (FI) | 2ec22e04-edba-4435-b36b-f4a3e3565b33 Belgium (BE) | 3c676d70-e541-4d7c-8482-bd695977c8ce Italy (IT) | 87ee0e23-af7b-4a14-b89d-b3ebf399d837 Germany (DE) | 7eee33af-2f09-49be-b234-8708f7faf592 Denmark (DK) | 308bc051-1c6e-4882-8cbb-16d2aae58a33 Germany (DE) | b977e703-6732-4130-9399-8a347ea57a02 Croatia (HR) | 8dadeab8-c361-4395-a13d-8ae01a355097 Czech Republic (CZ) | 981d9dce-0472-4f6a-bb2e-52b8b811eccf Hungary (HU) | 22ab003b-c8d6-4a09-bd5a-9a632dc4f13d Bulgaria (BG) | 4edb9d7a-1a1a-40a7-a8f1-6f2439e19cba Spain (ES) | e4f9aaf5-f7c2-4b83-b311-e6e6c8b8a3ca Poland (PL) | 324757bd-0410-4cf0-aee4-3d26ed8a2750 France (FR) | 85a48b24-9915-4def-94cf-067315547dc1 Sweden (SE) | 1bb58d38-3612-44d9-8b09-4709662b3fab Germany (DE) | ee706f09-1aeb-4424-84a7-c44b34470b7b France (FR) | 69cb3107-9814-4376-8bb7-36218c4ea70c Hungary (HU) | e4bbf51f-2b5a-492b-84d6-e6ca843b61f2 Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CQC Certificate
CQC Certificate, Temperature Monitoring Relays, CM-TCS.xxxx, CM-TCN.xxx, Made in Germany
CSA Certificate
cUL60947-5-1 certificate CM-TCN.011x, CM-TCN.012x, CM-TCS.011x
Declaration of Conformity - CCC
CCC Declaration of Conformity, Temperature Monitoring Relays, CM-TCS.xxxx, CM-TCN.xxx, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-TCN.011x, CM-TCN.012x Temperature monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-TCN.011x, CM-TCN.012x Temperature monitoring relays
UL Certificate
UL60947-5-1 certificate CM-TCN.011x, CM-TCN.012x, CM-TCS.011x
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
52.5 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.293 kg
Package Level 1 EAN
4013614552519
Object Classification Code
B
ETIM 7
EC001446 - Temperature monitoring relay
ETIM 8
EC001446 - Temperature monitoring relay
ETIM 9
EC001446 - Temperature monitoring relay
eClass
V11.0 : 27371810
UNSPSC
39122331
E-Number (Finland)
2712910
E-Number (Norway)
4187796
Feature: 3 c/o SPDT outputs, configurable. Business Impact: Flexible control logic without external relays, enabling compact panel designs and reduced wiring errors. Application: Machinery protection in packaging lines and process skids. Feature: Wide input supply 24-240 V AC/DC. Business Impact: One device fits legacy and new control architectures, lowering spare part inventory and maintenance costs. Application: Global installations with variable power standards. Feature: Sensor versatility PT100/PT1000/PTC/NTC/bimetal. Business Impact: Single relay supports multiple sensor types, simplifying migrations and retrofits. Application: Mixed-sensor plants in food processing or chemical handling. Feature: LCD display with maintenance data. Business Impact: On-site diagnostics speed repairs and reduces downtime. Application: Field service and spare parts planning. Feature: ABB EPiC app configuration (even without power). Business Impact: One-touch setup, faster commissioning by a reported 80%, and fewer commissioning errors. Application: Start-up and changeovers in assembly cells. Feature: Screw-terminal, double-chamber cage connections. Business Impact: Secure, vibration-ready terminations with easy field maintenance. Application: DIN rail mounting in harsh environments. Feature: Certifications and compliance (UL/CSA, CE, UKCA). Business Impact: Accelerated approvals and reduced validation effort for global deployments. Application: Utilities, machine builders, and system integrators seeking reliable, compliant temperature monitoring. Feature: Robust mechanical and electrical durability. Business Impact: Long service life and predictable maintenance windows. Application: Continuous monitoring in demanding industrial settings.
Get a Quick Quote for a ABB 1SVR750740R0110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR750740R0110?
Enquire Now
FAQs
Wiring begins with supplying 24-240 V AC/DC to the rated control supply terminals, then connecting up to three sensor circuits (PT100, PT1000, PTC, or NTC) to the sensor inputs. Use the screw terminals for secure connections and wire the three SPDT outputs to the control circuits or alarms. Ensure correct polarity and torque (0.6–0.8 N·m) for reliable operation.
The CM-TCN.011S supports PT100, PT1000, PTC, NTC sensors, and can integrate a bimetal switch for auxiliary monitoring. This flexibility enables migrations from older sensors and supports mixed sensor environments within a single device, simplifying retrofits and future upgrades.
Yes. The device carries UL60947-5-1 certification, CE and UKCA declarations, and is listed for UL/CSA usage. These certifications support regulatory compliance for global deployments and provide documented safety and performance benchmarks for electrical control panels.
Typical uses include overtemperature and undertemperature protection for motors, pumps, HVAC units, and process equipment. It is suitable for packaging lines, manufacturing cells, and automation panels where rapid diagnostics, reliable protection, and flexible sensor integration translate into reduced downtime and improved process reliability.
EPiC enables one-touch, minimal-power parameterization, which reduces commissioning time and field wiring errors. Even when unpowered, configuration is possible, improving maintenance efficiency during changeovers. This leads to faster deployments, lower labor costs, and safer, more predictable asset performance across multiple lines.
