ABB 1SVR760487R8300 Three-phase monitoring relay - UL 508
Part Number: 1SVR760487R8300
Quick Summary
ABB 1SVR760487R8300 Three-phase monitoring relay protects motors by monitoring voltage, phase sequence, and phase failure. Unstable phase conditions can trigger costly downtime; this device offers adjustable thresholds and a programmable tripping delay to prevent unexpected outages. Certified for UL/CSA, CE and UKCA, and built to IEC 61000-6-2/61000-6-3 safety standards, it delivers reliable performance in harsh industrial environments. With Easy Connect technology and DIN-rail mounting, it installs quickly, while compatibility with screwless terminals and push-in wiring reduces wiring changes and training needs. Designed for industrial control panels and motor control centers, it supports energy efficiency initiatives and improves system reliability.
Product Information
Extended Description

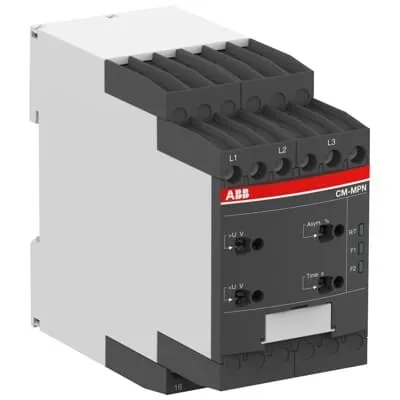

1SVR760487R8300 ABB: The CM-MPN.52S is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 350-580 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable. The CM-MPN.52S also offers selection of phase sequence monitoring, automatic phase sequence correction as well as an ON or OFF tripping delay. The output contacts can be configured as 1x2 c/o (SPDT) contacts (common signal) or 2x1 c/o (SPDT) contact (separate signal for over- and undervoltage thresholds) operation. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4016779852098
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-MPN.52; CM-MPN.62; CM-MPN.72 Multifunctional three-phase monitoring relays with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-MPx, CM-PxS Three-phase monitoring relays | Installation instructions - CM-MPx, CM-PxS Three-phase monitoring relays
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Height
85.6 mm
Product Net Depth / Length
104.8 mm
Product Net Weight
0.226 kg
Function
Automatic phase sequence correction | Over- and undervoltage monitoring | Phase failure detection | Phase unbalance detection | Phase sequence monitoring
Measuring Range
(L-L) 350 ... 580 V AC
Time Range
0 s or 0.1 ... 30 s tripping delay (ON or OFF) | 200 ms start-up delay
Rated Control Supply Voltage (Us)
(L-L) 350 ... 580 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Rated Impulse Withstand Voltage (Uimp)
Input Circuit 8 kV | Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 1000 V | Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 60255-27 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
15562d07-be27-4b73-ba49-a45e4a69dd5e Germany (DE)
Simplified SCIP
a6dcb386-c3da-4e3a-91fd-096b5c5e4750 Germany (DE) | 7115392f-5016-4468-b871-99fb6dbea378 Italy (IT) | 29352d58-589f-45a1-9c20-13148088ccad Croatia (HR) | e7bcae2c-b68c-4307-8b9c-565ff5fee718 Germany (DE) | 174b2339-61a1-44ee-a83c-7195c81b8f0c Denmark (DK) | 515910e3-b846-4612-b360-cf4f465e0c0a Czech Republic (CZ) | 93b0f29c-65b2-4515-9c6c-500f8667f4fe Norway (NO) | e8735629-709b-4c5c-bb6a-e278e1269e47 Finland (FI) | 852ec36b-f503-4389-bdf1-d8788e365028 Belgium (BE) | 0f06e877-063b-4351-a8d4-414b709baf6b Germany (DE) | debf5add-678a-4379-b98a-2d3f75a49178 Poland (PL) | 7340012e-ac67-4654-93ab-f55f8613033e Spain (ES) | faa8af1c-30c5-4bcb-88f4-1a8662c7faa5 Hungary (HU) | 8929ee44-f49f-4613-b3f0-930cdee1771d Belgium (BE) | 0e1e4117-cd7b-4231-8eda-edb03a967452 France (FR) | dd6bf470-b358-43d2-9deb-1e93d82112d5 France (FR) | 39c3cee8-43de-4713-88eb-4feebdfb56a6 Sweden (SE) | bf28a694-1c20-40c7-8e8b-c94e09cd0375 Poland (PL) | 3382c848-0460-4542-92c2-f7d50db27548 Sweden (SE) | fbf2c421-6be2-44c9-818b-ab31f2d1165b Bulgaria (BG) | b29b64e0-a207-455d-8150-5e0f8486c9ea Germany (DE) | da8e2c38-4fd8-41ea-b3e9-df797364a53a Hungary (HU) | 89202df2-9514-460d-ab95-4384330c8be0 Greece (GR) | 4d1d6d49-2881-458c-875a-5d0b7d431370 Portugal (PT) | cb55a018-5fe3-4354-9fc0-f5dfd8646bde Estonia (EE) | 5b9b5a05-2ff2-4e7e-b127-b0f74bbecc74 Poland (PL) | 19ef71e2-24c3-4ab5-95cf-9e4cbb74947f Netherlands (NL)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-27946-UL
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-UFS.., CM-MPN.., Made in Germany
cULus Certificate
cULus508_20120829-E140448
Declaration of Conformity - CCC
CCC Certificate, Electronic Measuring and Monitoring Relays, CM-MPS.., CM-PVS.., CM-PSS..,CM-PAS.., CM-MPN.., Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-xxS.xxx, CM-xxN.xxx Three-phase monitoring relays
DNV GL Certificate
DNV GL Certificate - CM-MPx.xxx, CM-PAS.xxx, CM-PSS.xxx,CM-PVS.xxx, and CM-PFS.x Three-phase monitoring relays with screw or push-in terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
52.5 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.251 kg
Package Level 1 EAN
4016779852098
Object Classification Code
B
ETIM 7
EC001441 - Phase monitoring relay
ETIM 8
EC001441 - Phase monitoring relay
ETIM 9
EC001441 - Phase monitoring relay
eClass
V11.0 : 27371803
UNSPSC
39122332
E-Number (Finland)
2712263
E-Number (Norway)
4188143
E-Number (Sweden)
3860611
