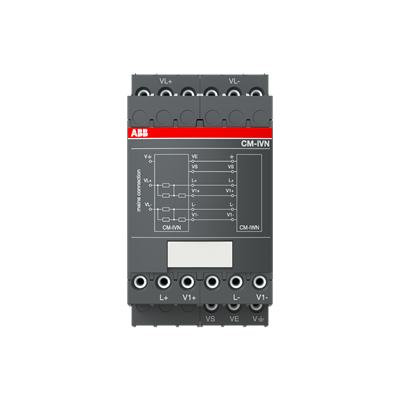

ABB 1SVR760669R9400 Coupling Unit - UL/CSA Listed
Part Number: 1SVR760669R9400
Quick Summary
ABB 1SVR760669R9400 Coupling Unit expands CM-IWN.x insulation monitoring to higher voltage ranges. For panel builders and maintenance teams, limited measurement ranges can cause nuisance trips and delayed commissioning. This accessory is CE and UKCA certified and UL/CSA listed, with IP50 housing for rugged installations. By enabling monitoring up to 690 VAC and 1000 V DC, it supports safer, compliant systems while DIN rail mounting and screwless terminals streamline installation. Compatibility with CM-IWN.x, plus a compact form factor and a net weight of 0.165 kg, helps reduce assembly time and field faults, delivering measurable uptime gains.
Product Information
Extended Description
1SVR760669R9400 ABB: The CM-IVN.P serves to extend the measuring range of the insulation monitoring relay CM-IWN.x for monitoring the insulation resistance up to 690 V AC and 1000 V DC in accordance with IEC 61557-8.
EAN
4016779852678
Minimum Order Quantity
1 piece
Customs Tariff Number
85043121
Data Sheet, Technical Information
Data sheet - CM-IVN.x Coupling unit with screw or push-in terminals
Instructions and Manuals
Instruction Sheet / Manual - CM-IVN Coupling unit for insulation monitoring relays, with screw or push-in terminals
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Height
85.6 mm
Product Net Depth / Length
104.8 mm
Product Net Weight
0.165 kg
Function
Accessory - Coupling unit for voltage expansion of CM-IWN.1 | Up to 690 V AC | Up to 1000 V DC
Rated Frequency (f)
Measuring Circuit 15 ... 400 Hz
Terminal Type
Screwless Terminals
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / PE 8 kV
Rated Insulation Voltage (Ui)
Input Circuit / PE 1000 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Recommended Screw Driver
0.8 x 4
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61326-2-4 | IEC/EN 61557-1 | IEC/EN 61557-8 | UL 508
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
832cff94-489f-4925-b1a1-ad4cc7b31e9a Germany (DE)
Simplified SCIP
9dc8db60-a5bb-4f8b-ae51-a514d2c352db Germany (DE) | 2b62c88a-673d-48b8-965a-02b1952ffc8d Hungary (HU) | a593145e-b8d8-498f-a438-9f35898dfba5 Belgium (BE) | 6cb69632-f21e-4899-a418-a090cf8eee61 Spain (ES) | 5f472e63-82c4-4f26-9e01-48f405c17faa France (FR) | fb770208-e147-4223-8175-9905e7c048da France (FR) | 9dabf98e-e367-4592-9fa3-6baa2f474e3c Sweden (SE) | d152740e-7c08-4d3c-b31b-2e4820daa7f0 Sweden (SE) | c0c73727-185a-41ee-8e31-9d7575c86755 Germany (DE) | c9f93e4d-82a7-47e7-88b7-36c859a4682e Bulgaria (BG) | b35427bb-8787-41de-98c4-c48a973a602f Netherlands (NL) | 3fc9a4c4-5c81-47e3-8964-e678bb0a7f0c Estonia (EE) | 0dfa5428-a566-4918-9f26-5f5506620209 Greece (GR) | c25331bf-0f06-4bd9-bb7a-7048ea6fadc1 Portugal (PT) | 33bb3b22-8fae-4e8c-9473-f1ca10ab7df7 Hungary (HU) | bc95fd2d-fa37-4b45-802e-42e2f5715649 Poland (PL) | 02534d23-089f-442f-9041-d4ad159e9d0b Croatia (HR) | 3520f2df-5b99-4f68-9487-324923d78321 Germany (DE) | 6a4f798e-9e1f-4a49-ab6e-d1ccd25b7622 Czech Republic (CZ) | e8b6f0cc-504d-4440-b662-649e54ad7137 Denmark (DK) | 952ae88d-d506-4847-9fba-b4f037cfdb14 Poland (PL) | 60ff1c65-51da-4034-b5e0-6528e477d002 Italy (IT) | 44667915-c4a7-4db8-ab5a-b54230c7c4d7 Norway (NO) | 22c07c78-bc1e-48e0-81a8-6be147f90df1 Poland (PL) | 0bb0432c-3f32-4428-898e-4afd17c075be Germany (DE) | 757c165a-5d31-4a1b-92e0-13e62e50e699 Finland (FI) | cbc48288-d160-4ae7-ae54-491c30b269a2 Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-30302-A1-UL
CCC Certificate
CCC Certificate - Insulation monitoring relays CM-IWS.x, CM-IWN.x, and coupling unit CM-IVN, old and new housing
CQC Certificate
CQC Certificate, Insulation Monitoring Relays, CM-IWS.xx, CM-IWN.xx, CM-IVN.x, Made in Germany
cULus Certificate
cULus508_20120727-E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Insulation Monitoring Relays, CM-IWS.xx, CM-IWN.xx, CM-IVN.x, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-IWS.xx, CM-IWN.xx, CM-IVN.x Insulation monitoring relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-IWS.xx, CM-IWN.xx, CM-IVN.x Insulation monitoring relay
DNV GL Certificate
DNV GL Certificate - CM-IWS.1, CM-IWS.2, CM-IWN.1, CM-IVN insulation monitoring relays
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
52.5 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.189 kg
Package Level 1 EAN
4016779852678
Object Classification Code
B
ETIM 7
EC001444 - Insulation and earth fault monitoring relay
ETIM 8
EC001444 - Insulation and earth fault monitoring relay
ETIM 9
EC001444 - Insulation and earth fault monitoring relay
eClass
V11.0 : 27371807
UNSPSC
39122331
E-Number (Finland)
2712257
E-Number (Norway)
4187807
E-Number (Sweden)
3860662
Feature: Voltage range expansion up to 690 VAC and 1000 V DC. Business Impact: Expands monitoring coverage, reducing the need for multiple adapters and lowering total cost of ownership. Application: CM-IWN.x installations in mixed-voltage panels, motor drives, and distribution boards. Feature: DIN rail mounting with TH35-15 or TH35-7.5 and screwless terminals. Business Impact: Faster, safer wiring with fewer torque and stripping errors; reduces field wiring time and mistakes. Application: Standard machine control cabinets and compact control panels. Feature: Insulation monitoring performance with 1000 V insulation voltage and 8 kV impulse withstand. Business Impact: Improves safety and regulatory compliance, cutting risk of insulation faults triggering unexpected trips. Application: Industrial safety circuits and critical power paths. Feature: IP50 housing and IP20 terminal protection. Business Impact: Robust operation in typical cabinet environments with reduced exposure to contaminants. Application: Enclosed control panels and machinery enclosures in factories. Feature: Broad standards and certifications coverage (CE, UKCA, UL/CSA, CAN/CSA). Business Impact: Regulatory acceptance for global deployment; smoother cross-border approvals. Application: Global manufacturing sites and multinational projects. Feature: Compact dimensions (45 mm W × 85.6 mm H × 104.8 mm D) and light weight (0.165 kg). Business Impact: Space-saving integration and easier handling during installation and service. Application: Tight panel spaces and retrofit projects.
Get a Quick Quote for a ABB 1SVR760669R9400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR760669R9400?
Enquire Now
FAQs
The CM-IVN.P couples directly to the CM-IWN.x and mounts on standard TH35 DIN rails (TH35-15 or TH35-7.5). Use the screwless terminals for quick wiring, ensuring the wire section and stripping length meet the 8 mm spec. This streamlines retrofit and new builds alike, reducing commissioning time.
The coupling unit enables insulation monitoring up to 690 V AC and 1000 V DC, with a rated frequency for the measuring circuit from 15 to 400 Hz and an insulation voltage rating of 1000 V. It is designed to safely handle high-voltage segments within CM-IWN.x configurations.
Yes. The CM-IVN.P extends the CM-IWN.x monitoring range in high-voltage panels, motor drives, and distribution boards. Its DIN rail mounting and compact 45 x 85.6 x 104.8 mm footprint help fit crowded cabinets while maintaining reliable insulation monitoring in safety-critical applications.
The accessory carries CE and UKCA declarations and UL/CSA listings, with CAN/CSA compatibility. It also aligns with IEC/EN 61557-1 and IEC/EN 61557-8, plus UL 508. The housing is IP50 protected, suitable for typical enclosure environments found in industrial settings.
By reducing wiring complexity with screwless terminals and enabling higher voltage monitoring in a single accessory, maintenance time drops and field faults decrease. The compact design and DIN-rail compatibility shorten installation time, improving asset uptime and delivering faster project completion and return on investment.
