ABB 1SVR760740R0120 Temperature Monitoring Relay - Modbus RTU
Part Number: 1SVR760740R0120
Quick Summary
ABB 1SVR760740R0120 Temperature Monitoring Relay is designed to monitor process temperatures in industrial automation and control panels. Too many installations rely on separate sensors and external interfaces, creating wiring complexity and downtime during faults or calibration. The unit carries CE, UKCA, and UL/CSA certifications with RoHS and REACH declarations, simplifying global compliance and audits. With support for up to three sensor circuits using PT100, PT1000, PTC, NTC or a bimetal switch, it adapts to diverse industrial environments. Its Modbus RTU interface, front LCD, and Easy Connect push-in terminals accelerate commissioning, while the ABB EPiC app enables configuration even when unpowered. This combination delivers faster time-to-start, reduced wiring errors, and lower total cost of ownership for machine builders and panel shops.
Product Information
Extended Description

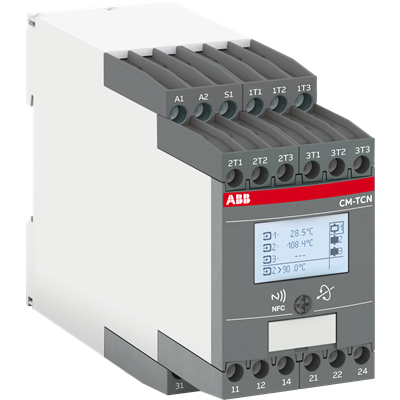

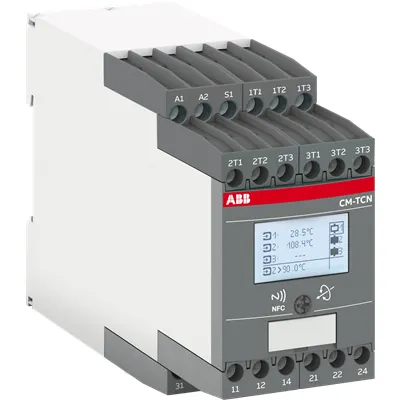

1SVR760740R0120 ABB: The CM-TCN.012P is an innovative temperature monitoring relay from the CM temperature monitors range. This monitoring relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 3 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCN.012P is able to measure temperatures with up to three sensor circuits using different type of sensors PT100, PT1000, PTC or NTC and it has embedded Modbus RTU communication interface. The LCD at the front of the relay shows the currently measured values and maintenance data. The CM-TCN.012P can be configured exactly as you need either via a black-lit LCD or smartphone app. Parametrization and configuration are just one touch away with the ABB EPiC app – even in a non-powered state – reducing installation time by 80%. The device offers maintenance free Easy Connect Technology with push-in terminals.
EAN
4013614552663
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog Smart temperature monitoring relays CM-TCN & CM-TCS
Instructions and Manuals
Installation instructions - CM-TCN.011 (product revision ≥ G) and CM-TCN.012 Temperature monitoring relays | Manual CM-TCN
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.27 kg
Function
Overtemperature monitoring | Undertemperature monitoring | Over- and undertemperature monitoring
Measuring Range
-200 ... 850 °C
Sensor Type
PT100; PT1000; PTC; NTC; bimetal switch
Rated Control Supply Voltage (Us)
24 ... 240 V AC/DC
Rated Frequency (f)
Supply Circuit 50 Hz | Supply Circuit 60 Hz | Supply Circuit DC Hz
Output
3 x 1 c/o contacts, configurable
Terminal Type
Screwless Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
12 V | 100 mA
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 6 kV | Output Circuit 1 / Output Circuit 2 4 kV | Supply Circuit / Measuring Circuit 6 kV | Supply Circuit / Output Circuit 6 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 600 V | Output Circuit 1 / Output Circuit 2 300 V | Supply Circuit / Measuring Circuit 600 V | Supply Circuit / Output Circuit 600 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
2
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 6 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 2x 0.5 ... 1.5 mm² | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | Flexible 2x 0.5 ... 1.5 mm² | Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible 2x 18-16 AWG | Rigid 2x 20-16 AWG
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CQC Certificate
CQC Certificate, Temperature Monitoring Relays, CM-TCS.xxxx, CM-TCN.xxx, Made in Germany
CSA Certificate
UL-CA-L140448-41-22600202-1
Declaration of Conformity - CCC
CCC Declaration of Conformity, Temperature Monitoring Relays, CM-TCS.xxxx, CM-TCN.xxx, Made in Germany
Declaration of Conformity - CE
EU Declaration of Conformity - CM-TCN.011x, CM-TCN.012x Temperature monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-TCN.011x, CM-TCN.012x Temperature monitoring relays
UL Certificate
UL-US-L140448-11-22600202-1
Package Level 1 Units
box 1 piece
Package Level 1 Width
97 mm
Package Level 1 Depth / Length
52.5 mm
Package Level 1 Height
109 mm
Package Level 1 Gross Weight
0.299 kg
Package Level 1 EAN
4013614552663
Object Classification Code
B
ETIM 7
EC001446 - Temperature monitoring relay
ETIM 8
EC001446 - Temperature monitoring relay
ETIM 9
EC001446 - Temperature monitoring relay
eClass
V11.0 : 27371810
UNSPSC
39122331
E-Number (Norway)
4187799
