1SZE430801B0020
Part Number: 1SZE430801B0020
Product Information
Extended Description

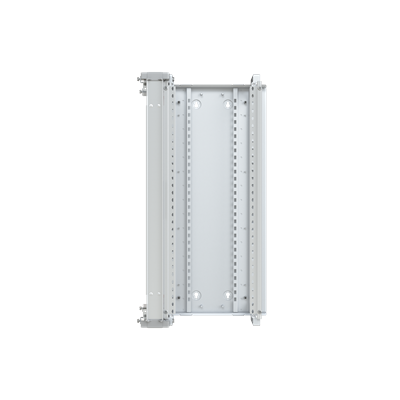

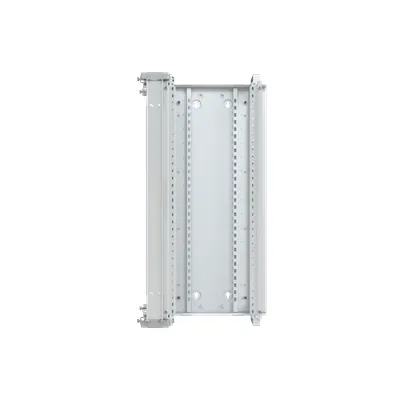

1SZE430801B0020 ABB: Wallcabinet Extention, Type System pro E energy L, Basic structure, Mountingtype: Wallhanging, for indoor installation, Flatpack, Protection form I (Earthed), Protectklass IP43 (with door) IP30, without door, Acc.Norm: IEC 61439-1, IEC 61439-2, IEC 61439-3; IEC62208, IK08 for housing, IK07 for glass-door and knock-out, powdercoated RAL 7035, Sheet steel material, Door needs to be added seperataly, Door can be mounted Left or Right, Door opening 135°, Backplate sheet steel, Top and Bottom need to be added sepretely, Cable entry by flange of big Cable entry, dimensions in mm (H x W x D) 800 x 400 (384) x 250, No.Mod.DIN 60 (H=150 mm), prepared for extention side-by-side, prepared for interrior fitting System pro E energy Combi (up to 800A)
Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
Number of Batteries
0
RoHS Information
EC Declaration of Conformity System pro E energy L, M, Combi
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20231210
REACH Declaration
1SDL000282R1279 - REACh - Enclosures
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Product Net Width
384 mm
Product Net Height
849 mm
Product Net Depth / Length
250 mm
Package Level 1 Units
box 1 piece
Declaration of Conformity - CE
EC Declaration of Conformity System pro E energy L, M, Combi
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.0 : 27182101
Object Classification Code
U
