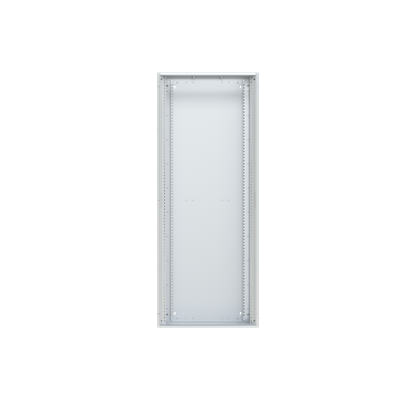

1SZE550800B0240
Part Number: 1SZE550800B0240
Product Information
Extended Description

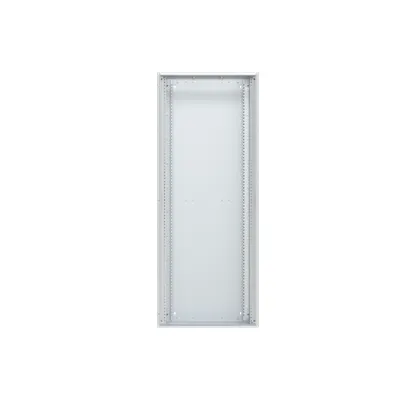

1SZE550800B0240 ABB: Floor standing cabinet, Type System pro E energy M, Basic structure, Mountingtype: Wallhanging, for indoor installation, Flatpack, Protection form I (Earthed), Protectklass IP55 (with door) IP30, without door, Acc.Norm: IEC 61439-1, IEC 61439-2, IEC 61439-3; IEC62208, IK08 for housing, IK07 for glass-door and knock-out, powdercoated RAL 7035, Sheet steel material, Door needs to be added seperataly, Door can be mounted Left or Right, Door opening 135°, Backplate sheet steel, Top and Bottom need to be added sepretely, Cable entry by flange of big Cable entry, dimensions in mm (H x W x D) 2000 x 800 (816) x 250, No.Mod.DIN 468 (H=150 mm), prepared for extention side-by-side, prepared for interrior fitting System pro E energy Combi (up to 800A)
Rated Current (In)
800 A
Power Loss
Δt = 25K 119 W | Δt = 30K 170 W | Δt = 35K 225 W | Δt = 40K 282 W
Number of Flange Openings
6
Number of Rows
13
Cover Plate Type
Optional
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder coating
Housing Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
Number of Batteries
0
RoHS Information
EC Declaration of Conformity System pro E energy L, M, Combi
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20231210
REACH Declaration
1SDL000282R1279 - REACh - Enclosures
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP55
Protection Class
Grounded (Class I)
Width in Number of Modular Spacings
36
Product Net Width
828 mm
Product Net Height
2049 mm
Product Net Depth / Length
250 mm
Product Net Weight
41.43 kg
Built-In Depth (t2)
230 mm
Thickness
Cabinet Plate 1.5 mm | Door Plate 1.5 mm
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
46.1 kg
Declaration of Conformity - CE
EC Declaration of Conformity System pro E energy L, M, Combi
Building Information Modeling – BIM
ABB BIM System pro E energy M
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Object Classification Code
U
