1SZE990920B0240
Part Number: 1SZE990920B0240
Product Information
Extended Description

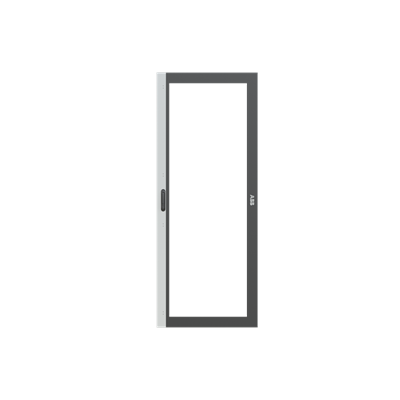

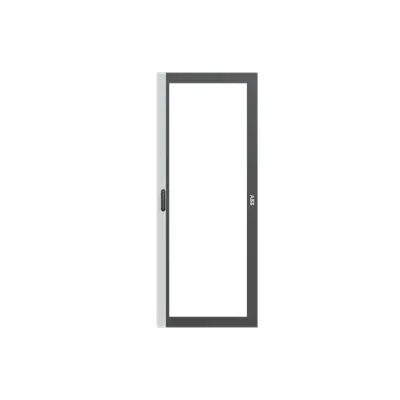

1SZE990920B0240 ABB: Door transparent for System pro E energy, up to IP55, with 3 point locking system, IK07, safety glass, W800 H2000
Model Number
Panel door
Surface Finishing
Powder coating
Material
Steel
Color
Grey
Number of Batteries
0
RoHS Information
EC Declaration of Conformity System pro E energy L, M, Combi
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20231210
REACH Declaration
1SDL000282R1279 - REACh - Enclosures
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP55
Product Net Width
809 mm
Product Net Height
2042 mm
Product Net Depth / Length
250 mm
Product Net Weight
20.895 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
22.468 kg
Declaration of Conformity - CE
EC Declaration of Conformity System pro E energy L, M, Combi
Building Information Modeling – BIM
ABB BIM System pro E energy M | ABB BIM System pro E energy L
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.0 : 27182204
Object Classification Code
U
