1SZR004002A1109
Part Number: 1SZR004002A1109
Product Information
Extended Description

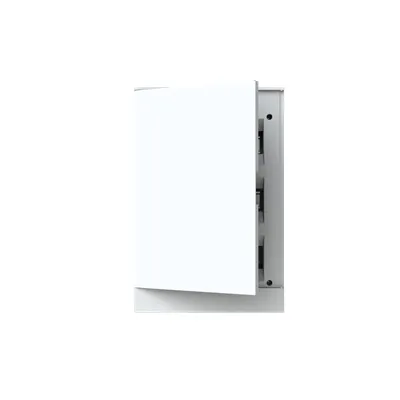

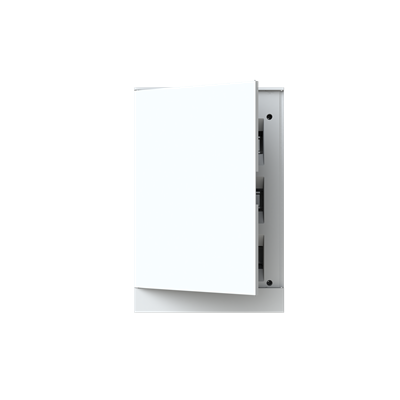

1SZR004002A1109 ABB: basic E Flush Mounted Opaque White Door 36 Module
Number of Rows
3
Configuration Type
Assembled with DIN-rail
Mounting Type
Flush mounting
Door Type
Single
Door Surface Finishing
Opaque
DIN Place Units
36
Terminal Type
Screw Terminals
RoHS Information
Declaration of Conformity basic E ranges
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20191218
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP40
Protection Class
Isolated (Class II)
Product Net Width
300 mm
Product Net Height
450 mm
Product Net Depth / Length
105 mm
Product Net Weight
1.37 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
1.372 kg
Replacement Product ID (NEW)
1SLM004100A1107
Declaration of Conformity - CE
Declaration of Conformity basic E ranges
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
