1SZR004002A2200
Part Number: 1SZR004002A2200
Product Information
Extended Description

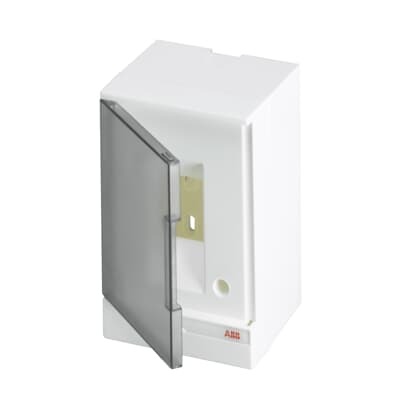

1SZR004002A2200 ABB: basic E Surface Mounted Transparent Grey Door 2 Module
Number of Rows
1
Configuration Type
Assembled with DIN-rail
Mounting Type
Surface mounting
Door Type
Single
Door Surface Finishing
Transparent
DIN Place Units
2
Terminal Type
Screw Terminals
RoHS Information
Declaration of Conformity basic E ranges
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20191218
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP40
Protection Class
Isolated (Class II)
Product Net Width
120 mm
Product Net Height
180 mm
Product Net Depth / Length
102 mm
Product Net Weight
0.36 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.37 kg
Declaration of Conformity - CE
Declaration of Conformity basic E ranges
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
