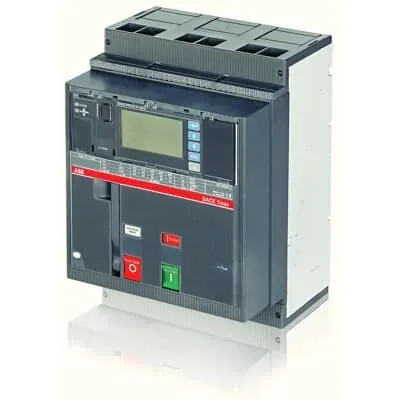

ABB 1TNT7131010I461 Moulded Case MCCB - IEC 14048.2
Part Number: 1TNT7131010I461
Quick Summary
Moulded Case Circuit Breaker ABB 1TNT7131010I461 provides reliable overcurrent protection for industrial power distribution. Engineers often struggle to choose high-capacity MCCBs that fit tight spaces while minimizing downtime. This unit complies with IEC and GB/T 14048.2 standards and carries RoHS and REACH declarations for responsible, sustainable operation. With 4P 1000 A capacity, fixed terminals for robust installation, and 690 V AC rating, it enhances protection across distribution boards while reducing total cost of ownership. Its release PR331/P LSIG provides precise tripping characteristics, and the long mechanical durability supports extended service intervals in harsh environments. This combination helps maintenance teams meet safety standards while keeping procurement costs predictable.
Product Information
Extended Description
1TNT7131010I461 ABB: T7S1000M PR331/P-LSIG R1000 FF 4P + 110V Motor
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
Customs Tariff Number
853620
Product Net Width
280 mm
Product Net Height
268 mm
Product Net Depth / Length
178 mm
Product Net Weight
14 kg
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Current Type
AC
Electrical Durability
2000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 30 W
Rated Current (In)
1000 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 85 kA | (230 V AC) 85 kA | (380 V AC) 50 kA | (400 V AC) 50 kA | (415 V AC) 50 kA | (440 V AC) 50 kA | (500 V AC) 40 kA | (690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 85 kA | (230 V AC) 85 kA | (380 V AC) 50 kA | (400 V AC) 50 kA | (415 V AC) 50 kA | (440 V AC) 50 kA | (500 V AC) 40 kA | (690 V AC) 30 kA
Rated Uninterrupted Current (Iu)
1000 A
Release
PR331/P LSIG
Release Type
EL
Short-Circuit Performance Level
S
Standards
IEC | GB/T 14048.2
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers
Data Sheet, Technical Information
Catalogue (.PDF) [ZH] Tmax MCCB
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: High continuous current rating of 1000 A with a 4P configuration and 690 V AC operating voltage. Business Impact: Enables reliable protection for large motor feeders and main distribution boards, reducing nuisance trips and safeguarding critical loads. Application: Heavy industrial lines, conveyors, pump stations, and large machine clusters. Feature: High short-circuit interruption capability with Ics up to 85 kA and Icu up to 85 kA depending on voltage, plus Icw of 20 kA. Business Impact: Fast, dependable fault clearance minimizes arc flash exposure and equipment damage, lowering downtime costs. Application: Heavy-duty process lines and multi-feed panels. Feature: Mechanical durability of 10,000 cycles and electrical durability of 2,000 cycles. Business Impact: Longer service life lowers maintenance frequency and total cost of ownership. Application: Continuous operation in demanding environments with frequent switching. Feature: PR331/P LSIG release with fixed circuit-breaker terminals. Business Impact: Precise, reliable tripping behavior improves safety margins and simplifies installation. Application: Motor protection and distribution safety in automation projects. Feature: Environmental and compliance profile includes RoHS and REACH declarations, CMRT, and WEEE classification. Business Impact: Streamlines regulatory compliance and sustainability reporting for audits and procurement. Application: Global manufacturing and regulated industries seeking transparent supply chains. Feature: Compact yet robust physical footprint with 280 mm width, 268 mm height, and 178 mm depth, plus 14 kg weight. Business Impact: Easier integration into spare-space constrained switchgear while maintaining mechanical stability. Application: Front-access panels and retrofit installations in OEM panels.
Get a Quick Quote for a ABB 1TNT7131010I461
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1TNT7131010I461?
Enquire Now
FAQs
Install with fixed circuit-breaker terminals, ensuring proper busbar alignment and clearance for a 280 mm wide, 268 mm high, 178 mm deep footprint. Use the 690 V AC rating and 1000 A nominal current, secure to a rigid frame, and follow IEC 14048.2 installation guidelines for safe, compliant operation.
Key specs include rated current 1000 A, rated operational voltage 690 V AC, short-circuit breaking capacity up to 85 kA, Icw 20 kA, and Iimp up to 8 kV. Release type PR331/P LSIG provides reliable tripping, making it suitable for motor feeders and heavy-load panels in industrial environments.
Yes. The device carries RoHS and REACH declarations and CMRT documentation, aligning with global environmental requirements. It also adheres to IEC standards (IEC 14048.2), supporting regulatory compliance in EU and international markets while enabling clean supply chain reporting.
Manufacturing lines, conveyors, pumps, and HVAC motor feeders benefit from the 4P 1000 A capacity, high fault-current protection, and robust mechanical durability. The fixed-terminal design and 690 V AC rating suit large distribution boards in process industries, mining, and automation environments requiring reliable protection.
Long electrical durability (2000 cycles) and mechanical durability (10000 cycles) extend maintenance intervals and reduce downtime. RoHS/REACH compliance simplifies audits, while the integrated release and standardized data sheets streamline procurement and stocking, lowering total cost of ownership for critical power distribution.
