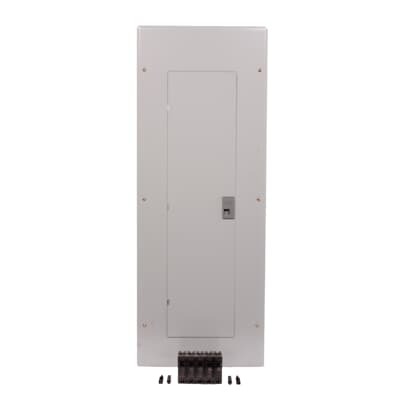

ABB 1TQP342208A0126 Other - 200A 42CT 22K KIT
Part Number: 1TQP342208A0126
Quick Summary
The ABB 1TQP342208A0126 is a high-capacity distribution module for medium to large panelboards and switchgear. Engineers often struggle with upgrading field configurations while maintaining safe grounding and code compliance during retrofit projects. This device leverages ETIM classifications EC000214 (Small distribution board), CMRT, and WEEE notes to support regulatory alignment and environmental responsibility. The included ground bar kit and notch-style cover plate simplify on-site assembly, while the 200A 42CT 22K IC field-convert capability provides flexible configurations without changing enclosures. By standardizing on this kit, electrical teams can shorten commissioning time, reduce field wiring errors, and lower lifecycle costs. The solution also supports procurement efficiency with a single part number and accessible data sheets.
Product Information
Extended Description
1TQP342208A0126 ABB: TLM4020C80GK 200A 42CT 22K IC FLD CONVRT WGRND BR KIT
Cover Plate Type
With notch
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
390 mm | 15.4 in
Product Net Height
998 mm | 39.3 in
Product Net Depth / Length
95 mm | 3.8 in
Product Net Weight
0.001 lb
Package Level 1 Units
case 1 piece
Package Level 1 Gross Weight
19.568 lb
Instructions and Manuals
PM Gold Load Center Installation Instructions - 100-225A 1PH 12-42ckt N1 - DEH-41005
Data Sheet, Technical Information
Load Center Catalog
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
UNSPSC
39121101
eClass
V11.0 : 27142409
IDEA Granular Category Code (IGCC)
4308 >> Single Phase Convertible Load Centers
Feature: 200A 42CT 22K IC field-convertible design enables rapid reconfiguration of circuit counts and trip settings without replacing entire enclosures. Business Impact: Reduces downtime and procurement costs by enabling a single kit to serve multiple layouts across 12–42 circuits. Application: Ideal for flexible single-phase distribution boards in medium-to-large panel installations.Feature: Notch cover plate type provides a clean, safe enclosure interface. Business Impact: Enhances installation quality, safety, and code compliance by minimizing gaps and edge exposure. Application: Suitable for retrofit projects in industrial facilities and commercial buildings.Feature: Ground bar kit integrated ground bonding. Business Impact: Improves fault-path reliability and protection coordination, reducing risk and maintenance needs. Application: Critical in single-phase distribution centers where robust grounding is mandatory.Feature: Compact footprint with defined dimensions (390 mm width, 998 mm height, 95 mm depth). Business Impact: Easier in-field fitment and routing within restricted panels, lowering enclosure modification costs. Application: Retrofit and upgrade projects in existing switchgear footprints.Feature: Documentation and data access via PM Gold Load Center Installation Instructions and Load Center Catalog. Business Impact: Accelerates commissioning, reduces field errors, and supports procurement with reliable datasheets. Application: Field deployment in 100–225A, 1PH configurations across commercial and light-industrial environments.Feature: ETIM, CMRT, and WEEE alignment. Business Impact: Provides regulatory clarity and sustainability credentials for audits and supplier compliance. Application: Suitable for organizations prioritizing standards-based procurement and environmental responsibility.
Get a Quick Quote for a ABB 1TQP342208A0126
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1TQP342208A0126?
Enquire Now
FAQs
This kit is designed for 100–225A, 1PH PM Gold load centers and is documented in the PM Gold Load Center Installation Instructions (DEH-41005). Use the notch cover plate for a neat enclosure interface, connect the ground bar kit for proper bonding, and follow the Load Center Catalog guidance to map circuits from 12 to 42. Ensure panel space and conductor routing meet enclosure specifications prior to retrofit.
The kit supports up to 200A with a 42CT configuration and 22K interrupting capacity. It is field-convertible to accommodate 12–42 circuits N1, enabling flexible single-phase distribution without changing enclosures. Refer to the Data Sheet (Load Center Catalog) for exact breaker compatibility and sequence details.
Yes. With 200A capacity and single-phase configuration support, the ABB 1TQP342208A0126 is well-suited for residential expansions and light commercial distribution boards where field configurability and compact form factor are advantageous.
The data set notes ETIM classifications EC000214 for small distribution boards, plus CMRT (Conflict Minerals Reporting Template) and WEEE considerations. While explicit CE or IP ratings aren’t listed, the ETIM/WEEE/CMRT alignment helps support regulatory and sustainability reviews during procurement and audits.
The kit is supported by the PM Gold Load Center Installation Instructions and the Load Center Catalog, providing wiring diagrams, assembly steps, and circuit mapping. A single part number streamlines procurement and reduces inventory complexity, delivering faster upgrades and lower lifecycle costs.
