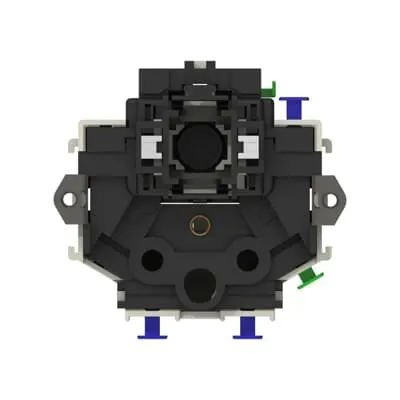

ABB 2CCA372136R0001 Flush Mounted Inserts - IP20
Part Number: 2CCA372136R0001
Quick Summary
ABB 2CCA372136R0001 Flush Mounted Inserts provide reliable 10 A power control in a compact wall-mounted solution for Swiss-standard outlets. Engineers often struggle with safe flush installations and compatible interfaces in tight enclosures. This product line carries CE declarations, RoHS compliance, REACH conformity, and IP20 protection to ensure safe indoor operation. By integrating SIDUS design principles with a thermoplastic body and a two-way rocker actuator, these inserts simplify installation, reduce panel height requirements, and lower long-term maintenance costs. They also align with ABB's broader socket-outlet ranges, enabling fast procurement of matching components and consistent electrical packaging.
Product Information
Extended Description
2CCA372136R0001 ABB: Sid.Cla. Komb.Gr.I 3 T13 GE°E°
Instructions and Manuals
Switch Ranges and Socket Outlets - Assortment
Mounting Type
Flush Mounted
Mounting Orientation
Vertical
Degree of Protection
IP20
Environmental Information
BHAS (CHCMC) - Environmental Information
Data Sheet, Technical Information
Switch Ranges and Socket Outlets - Assortment
Actuator Type
Rocker/button
Socket Outlet Type
Power Socket Outlets - Swiss Standard Type 13
Switch Type
Two-Way
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Design Range
SIDUS
Surface Finishing
Untreated
Material
Material quality: Thermoplastic | Material: Plastic
Product Net Weight
40.5 g
E-Number (Switzerland)
655143002
RoHS Information
RoHS (CHCMC) declaration of conformity
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
REACH (CHCMC) declaration of conformity
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20200527
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
37091-40-Bewilligung-184657-305000-ContactPlan-2452683-1-23.0747
ETIM 9
EC000020 - Combination switch/wall socket outlet
The Flush Mounted design reduces panel depth and enables neat wiring, driving space-efficient control panels and faster assembly, which lowers enclosure costs for machine builders. In practice this means safer, more compact dashboards for industrial automation and process control applications. The IP20 protection rating provides reliable indoor dust protection, lowering risk during installation and operation in dry environments, which is critical for control cabinets and workshop stations. With 250 V and 10 A ratings plus a two-way rocker actuator and Swiss Type 13 socket outlets, the module supports common loads while delivering intuitive operation and consistent interfaces across ABB equipment. The two-way switch and rocker/button actuator enable straightforward local control for start/stop or selector operations in control panels and packaging lines. SIDUS design, thermoplastic construction, and untreated surface finish contribute to a cost-effective, robust solution suitable for high-availability manufacturing lines. RoHS and REACH compliance, together with a CE declaration, reduce regulatory risk and simplify supplier management for procurement teams. Its compact weight of 40.5 g and flush-mounted geometry make retrofits and field servicing faster, while preserving cabinet aesthetics and cable routing clarity.
Get a Quick Quote for a ABB 2CCA372136R0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CCA372136R0001?
Enquire Now
FAQs
ABB 2CCA372136R0001 is designed for flush mounted installation with vertical mounting orientation. It integrates Swiss Standard Type 13 socket outlets and a rocker/button actuator, providing a two-way switch interface suitable for indoor control panels. This combination ensures a clean panel presentation and straightforward wiring for compact machines or workshop controls.
The module is rated for 250 V and 10 A, catering to standard control and power distribution tasks in compact panels. It carries IP20 protection for indoor, dry environments, and complies with RoHS and REACH to address regulatory requirements. The device uses a two-way rocker switch with Swiss Type 13 outlets for reliable, industry-standard performance.
Yes. With IP20 protection and vertical flush-mounted installation, the inserts are well-suited for indoor control panels, machine dashboards, and workshop outlets in dry environments. The SIDUS design and thermoplastic construction deliver durable, cost-effective performance while maintaining a tidy appearance and easy accessibility for maintenance and replacements.
ABB 2CCA372136R0001 carries CE declarations and complies with RoHS and REACH directives. It also aligns with WEEE considerations and ETIM 9 classification. These certifications help streamline procurement, ensure regulatory compliance in many markets, and support responsible end-of-life handling for industrial equipment.
The flush-mounted form factor and standardized Swiss Type 13 outlets reduce custom wiring and adapters, accelerating panel assemblies and commissioning. With a lightweight 40.5 g body and straightforward mounting, field replacements are quicker, which lowers downtime and labor costs. The combination of regulatory compliance and compatible interfaces also decreases procurement lead times and inventory complexity, improving overall ROI.
