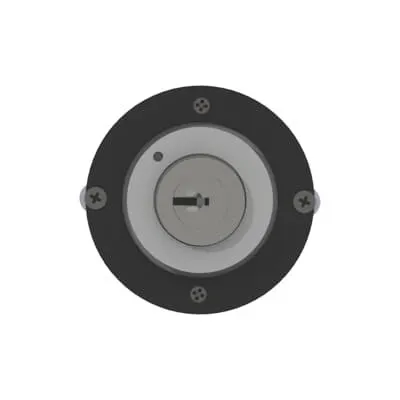

ABB 2CCA372201R0001 Flush Mounted Inserts - IP20
Part Number: 2CCA372201R0001
Quick Summary
Flush Mounted Inserts from ABB 2CCA372201R0001 provide compact 2-pole switching for control panels. Engineers often struggle with crowded enclosures and unreliable mounting that slows assembly and increases downtime. This design delivers reliable mechanical fit, straightforward installation, and predictable electrical performance in harsh industrial environments. It carries CE conformity, RoHS and REACH compliance, and IP20 protection, helping you meet essential safety and environmental requirements. With a SIDUS design, matt surface, and screw-fastening assembly, it blends into modern cabinets while preserving serviceability and long-term durability. Ideal for 2 NO, 0 NC configurations with 1 CO contact, rated at 25 A and 250 V, it supports efficient, scalable automation layouts.
Product Information
Extended Description
2CCA372201R0001 ABB: Schl.Schwenkta. C41590 I-0-I G
Instructions and Manuals
Switch Ranges and Socket Outlets - Assortment
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Environmental Information
BHAS (CHCMC) - Environmental Information
Data Sheet, Technical Information
Switch Ranges and Socket Outlets - Assortment
Contacts Configuration
2 NO, 0 NC
Number of Poles
2P
Actuator Type
Key
Connection Type
Screw
Rated Voltage (Ur)
250 V
Rated Current (In)
25 A
Number of Contacts CO
1
Number of Contacts NC
0
Number of Contacts NO
1
Design Range
SIDUS
Surface Finishing
Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
Product Net Weight
103 g
Built-In Depth (t2)
45 mm
E-Number (Switzerland)
347721402
RoHS Information
RoHS (CHCMC) declaration of conformity
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
REACH (CHCMC) declaration of conformity
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20200527
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
BHAS (CHCMC) - Declaration of Conformity - CE (DE, FR, IT)
ETIM 9
EC000029 - Push button
Feature 2P configuration with 2 NO and 1 CO contacts; Business Impact simplifies wiring and improves reliability in repetitive start/stop applications; Application Control panels and machine enclosures requiring compact, robust switching with straightforward screw termination. Feature Flush Mounted mounting type; Business Impact saves panel depth, accelerates installation, and reduces assembly errors; Application Enclosures with tight space constraints in automotive, packaging, and material-handling lines. Feature IP20 protection and thermoplastic matt finish; Business Impact enhances safety and longevity in cleanroom and workshop environments; Application Suitable for standard industrial environments where ingress protection and low glare are valued. Feature Screw connection and built-in depth of 45 mm; Business Impact ensures secure, vibration-resistant mounting and predictable service life; Application Panel assemblies where secure mechanical bonding and recessed fitting are needed. Feature 25 A at 250 V rating; Business Impact supports high-current control with reliable contact performance, reducing wiring updates and maintenance; Application Heavy-duty start/stop controls on conveyors and presses. Feature SIDUS design and matte finish; Business Impact offers aesthetic compatibility and durable operation in modern automation cabinets; Application New installations and retrofits within ABB’s design ecosystem.
Get a Quick Quote for a ABB 2CCA372201R0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CCA372201R0001?
Enquire Now
FAQs
ABB 2CCA372201R0001 is designed for standard panel cutouts that accommodate flush mounted switches with screw termination. It features a 2P configuration with 2 NO and 1 CO contacts, compatible with common control cabinets and machine enclosures. Its built-in depth is 45 mm, and the parts are sized for tidy, repeatable installations, reducing cabling complexity and the risk of loose connections.
The device is rated for 250 V and 25 A, supporting 2 NO, 0 NC contacts with 1 CO contact in a 2P arrangement. Screw connection provides a solid electrical and mechanical bond, suitable for demanding industrial switching and emergency-stop style applications in control panels and automation cabinets.
Yes. The 2CCA372201R0001 carries a CE Declaration of Conformity (BHAS CHCMC) and complies with RoHS and REACH requirements. WEEE classification confirms proper end-of-life handling. This alignment supports regulatory obligations and supplier assurance for critical control equipment in manufacturing environments.
For reliability, secure the screw termination firmly, avoid cross-threading, and verify IP20 sealing where applicable. Maintain the correct panel cutout depth of 45 mm to prevent binding and ensure smooth actuation. The matt finish reduces glare in bright installations and helps keep contaminants away; routinely inspect connections as part of preventive maintenance.
The two-pole operation with a durable thermoplastic body minimizes maintenance needs and downtime, delivering a favorable total cost of ownership. Regulatory compliance ( CE, RoHS, REACH ) reduces risk, while straightforward spares and replacement procedures support fast repairs. The combination of reliability and ease of service translates to higher up-time in automation lines.
