2CCA375148R0001
Part Number: 2CCA375148R0001
Product Information
Extended Description

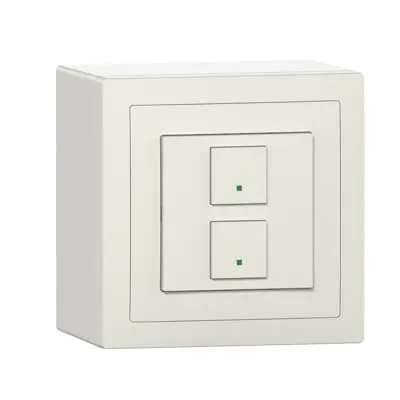

2CCA375148R0001 ABB: ABB free@home Sidus, sensor 1g / blind actuator 1g, surface mounting, white, consisting of: insert, cover with buttons, front frame, mounting plate 70x70 mm, cover frame 71x71 mm, surface-mounted housing 48 mm
Instructions and Manuals
System manual (.HTM) [DE] System manual ABB free@home
Mounting Type
Surface Mounted
Degree of Protection
IP20
Environmental Information
BHAS (CHCMC) - Environmental Information
Data Sheet, Technical Information
ABB-free@home Home Automation - Brochure
Number of Outputs
Venetian-Blind Maximum 1
Number of Inputs
0
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Current Type
AC
Maximum Switching Current
Resistive Load 4 A
Maximum Switching Power
920 W
Design Range
SIDUS
Product Net Width
75 mm
Product Net Height
75 mm
Product Net Depth / Length
59 mm
Product Net Weight
140 g
Built-In Depth (t2)
35 mm
E-Number (Switzerland)
205430005
RoHS Information
RoHS (CHCMC) declaration of conformity
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
REACH (CHCMC) declaration of conformity
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
BHAS (CHCMC) - Declaration of Conformity - CE (DE, FR, IT)
ETIM 9
EC001330 - Shutting actuator for bus system
