2CCA375395R0001
Part Number: 2CCA375395R0001
Product Information
Extended Description

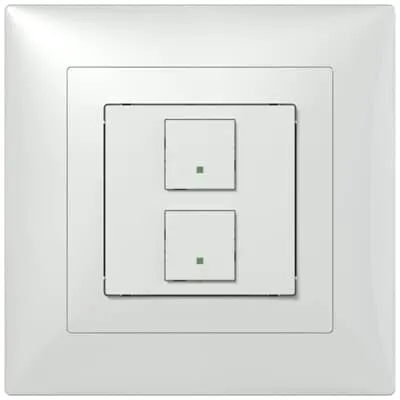

2CCA375395R0001 ABB: ABB free@home Sidus, sensor 1g / switching actuator 1g, type-B, flush mounting, wireless, white shiny, consisting of: insert, mounting plate 77x77 mm, cover with buttons, front frame, cover frame 88x88 mm
Instructions and Manuals
System manual (.HTM) [DE] System manual ABB free@home
Mounting Type
Flush Mounted
Degree of Protection
IP20
Environmental Information
BHAS (CHCMC) - Environmental Information
Data Sheet, Technical Information
ABB-free@home Home Automation - Brochure
Number of LEDs
1
Maximum Number of Switching Outputs
1
Number of Digital Inputs
0
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Suitable for C-Load
Yes
Rated Operational Voltage
230...230 V
Voltage Range
230 … 230 V
Maximum Switching Current
10 A
Maximum Switching Power
2300 W | LED 2300 W
Design Range
SIDUS
Product Net Width
88 mm
Product Net Height
88 mm
Product Net Depth / Length
44 mm
Product Net Weight
123 g
Built-In Depth (t2)
32 mm
E-Number (Switzerland)
305150105
RoHS Information
RoHS (CHCMC) declaration of conformity
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
REACH (CHCMC) declaration of conformity
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
BHAS (CHCMC) - Declaration of Conformity - CE (DE, FR, IT)
ETIM 9
EC001097 - Switch actuator for bus system
Object Classification Code
Q
