2CCA389052R0001
Part Number: 2CCA389052R0001
Product Information
Extended Description

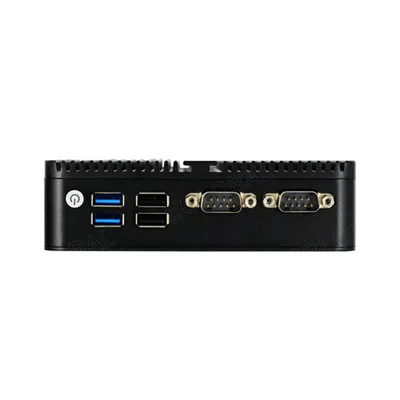

2CCA389052R0001 ABB: MINI-PC of the upper class - when more performance and memory is required. Optimized continuous operation as an industrial built-in appliance, for license sizes EisBär Pro Domo, Starter, Professional and Architect. EisBär SCADA pre-installed (without project license - must be ordered separately). Intel® Celeron® processor J6412, 8GB RAM, 256GB SSD, Intel® HD graphics, fanless, max. speed 12 watts power consumption, Windows 11 pre-installed.
Modular Components Included
Complete Device
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [DE] AM-EIS-400-47 HI-Server 3.9
Communication Interface
LAN
Compatible Bus Systems
KNX (IP) | BACnet | Modbus | m-Bus
Product Range
KNX
Rated Voltage (Ur)
110 ... 230 V
Color
other
Product Net Width
175 mm
Product Net Height
105 mm
Product Net Depth / Length
95 mm
Product Net Weight
1.3 kg
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Cyber Security Software Support Period
5 year
Declaration of Conformity - CE
In revision, will be delivered 2024-09-30
ETIM 9
EC001413 - Industrial PC
eClass
V11.0 : 27143117
