2CCG000019R0001
Part Number: 2CCG000019R0001
Product Information
Extended Description

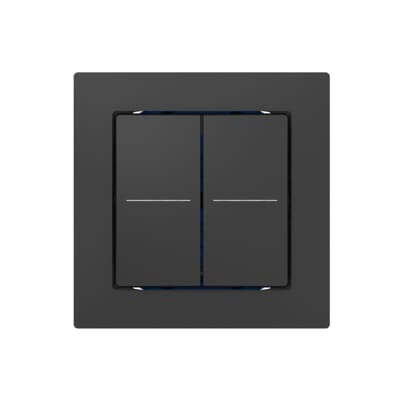

2CCG000019R0001 ABB: ABB Sidus KNX, push-button sensor Basic V2 2/4fold type-E, flush mounting, anthracite, suitable for combinations, consisting of: insert incl. bus coupling unit, push buttons, front frame 60x60 mm
Instructions and Manuals
Product manual (.PDF) [DE] 6108/06-AP 6108/07-AP
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
assembly Instructions ABB i-bus® KNX
Number of Buttons
2
Number of Actuation Points
4
Compatible Bus Systems
Other
Product Range
KNX
Design Range
SIDUS
Surface Finishing
Untreated | Matt
Material
Material quality: Thermoplastic, Material: Plastic
RAL Number
RAL 7016 - Anthracite Grey
Color
anthracite
Product Net Weight
75 g
Built-In Depth (t2)
40 mm
E-Number (Switzerland)
305076042
RoHS Information
RoHS (CHCMC) declaration of conformity
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
REACH (CHCMC) declaration of conformity
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20200527
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
BHAS (CHCMC) - Declaration of Conformity - CE (DE, FR, IT)
ETIM 9
EC000672 - Touch sensor for bus system
