2CDG006151R0247
Part Number: 2CDG006151R0247
Product Information
Extended Description

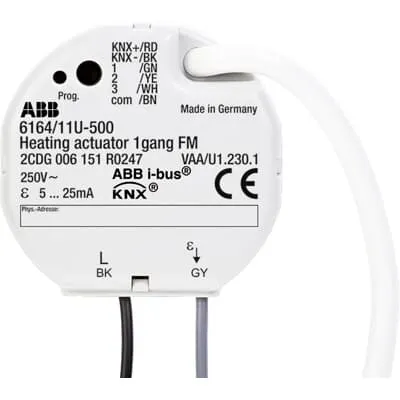

2CDG006151R0247 ABB: VAA/U1.230.1 Heating Actuator, 1-fold, 230 V, FM
Mounting Type
Flush Mounted
Degree of Protection
IP20
Number of Outputs
1
Number of Digital Inputs
3
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 3
Compatible Bus Systems
KNX (TP)
Manipulated Variable
Switching
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
230 V AC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
0.6 A
Output Current Maximum (Iout)
0.03 A
Color
light grey
Product Net Width
53 mm
Product Net Height
28 mm
Product Net Depth / Length
53 mm
Product Net Weight
0.053 kg
Replacement Product ID (NEW)
2CKA006151A0247
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) VAA/U 1.230.1
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
Object Classification Code
A
