2CDG006197R0028
Part Number: 2CDG006197R0028
Product Information
Extended Description

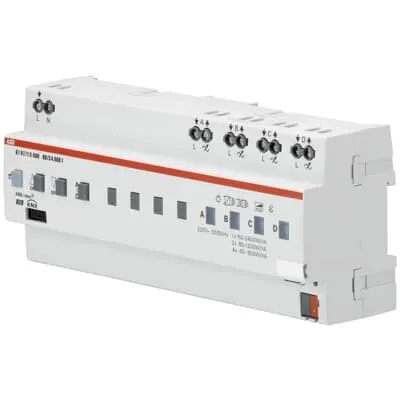

2CDG006197R0028 ABB: UD/S4.600.1 Universal Dim Actuator, 4-fold, 600 VA, MDRC
Instructions and Manuals
Installation and Operating Instructions (.PDF) UD/Sx.xxx.1
Mounting Type
DIN-Rail
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Degree of Protection
IP20
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Number of Batteries
0
Rated Operational Voltage
110 ... 230 V AC
Auxiliary Voltage AC/DC
230 V AC
Output Voltage (Uout)
230 V AC
Color
light grey
Product Net Width
216 mm
Product Net Height
90 mm
Product Net Depth / Length
64 mm
Product Net Weight
0.674 kg
ETIM 9
EC001094 - Dimming actuator for bus system
eClass
V11.0 : 27143123
