2CDG006197R0038
Part Number: 2CDG006197R0038
Product Information
Extended Description

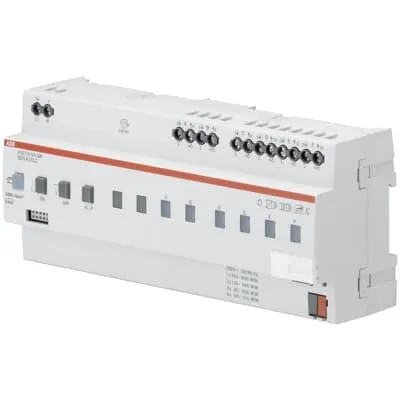

2CDG006197R0038 ABB: UD/S6.315.2 Universal Dim Actuator, 6-fold, 315 VA, MDRC
Instructions and Manuals
Installation and Operating Instructions (.PDF) UD/Sx.xxx.2
Mounting Type
DIN-Rail
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Degree of Protection
IP20
Number of Outputs
6
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Rated Operational Voltage
110 ... 230 V AC
Auxiliary Voltage AC/DC
230 V AC
Output Voltage (Uout)
230 V AC
Rated Current (In)
40 A
Rated Frequency (f)
50 / 60 Hz
Power Loss
19 W
Color
light grey
Width in Number of Modular Spacings
12.0
Product Net Width
216 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.666 kg
Built-In Depth (t2)
69 mm
Replacement Product ID (NEW)
2CKA006197A0038
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) UD/S6.315.2
ETIM 9
EC001094 - Dimming actuator for bus system
eClass
V11.0 : 27143123
Object Classification Code
A
