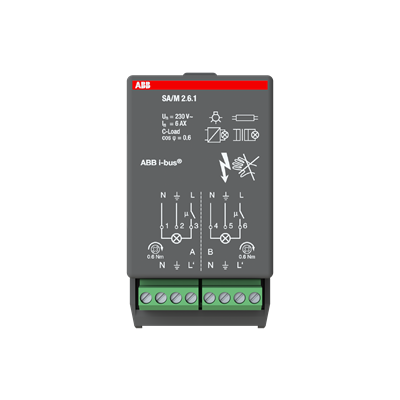

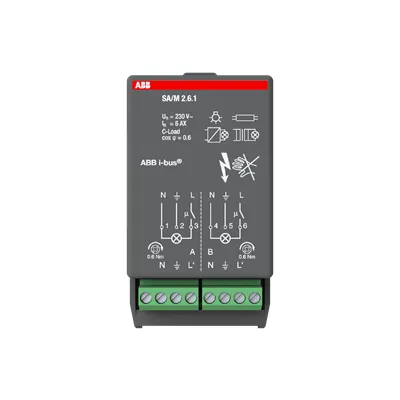

2CDG110002R0011
Part Number: 2CDG110002R0011
Product Information
Extended Description
2CDG110002R0011 ABB: Module for plugging into the Room Controller Basis Device. It switches currents up to 16 A with two relays. The maximum continuous current is 6 A.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SA/M2.6.1
Installing and Commissioning Manual
Product Manual SA/M2.6.1
Wiring Diagram
9AKK108469A6664
Mounting Type
Built-in
Degree of Protection
IP54
Data Sheet, Technical Information
Product Information (.PDF) [EN] RC/Ax.1 | Technical Data (.PDF) [EN] SA/M2.6.1
Number of Outputs
2
Maximum Number of Switching Outputs
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Suitable for C-Load
Yes
Number of Batteries
0
Voltage Range
230 V
Output Voltage (Uout)
230 V AC
Rated Current (In)
6 A
Maximum Switching Current
6 A
Maximum Switching Power
1380 W
Power Loss
0 W
Color
anthracite
Product Net Width
49 mm
Product Net Height
42 mm
Product Net Depth / Length
93 mm
Product Net Weight
0.15 kg
Dimension Diagram
9AKK108464A0845
E-Number (Finland)
2815163
E-Number (Norway)
4544251
E-Number (Sweden)
1751420
E-Number (Switzerland)
405665005
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SA/M2.6.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
032d2485-0f28-4e60-b08f-ed8e6da853f2 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SA/M2.6.1
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
Object Classification Code
A
