2CDG110003R0011
Part Number: 2CDG110003R0011
Product Information
Extended Description

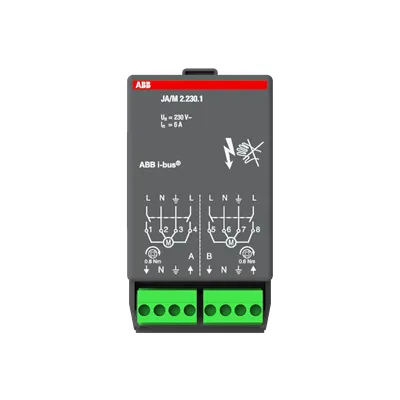

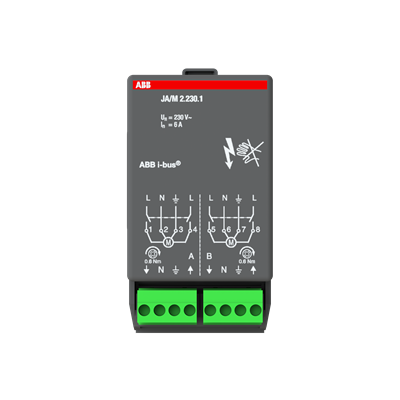

2CDG110003R0011 ABB: Module for plugging into the Room Controller Basis Device. They control two independent blind or shutter drives with 115/230 V AC. Special functions: Move to position and sun protection automatic control.
Instructions and Manuals
Installation and Operating Instructions (.PDF) JA/M2.230.1
Installing and Commissioning Manual
Product Manual (.PDF) [EN] JA/M2.2xxxx
Wiring Diagram
9AKK108469A6647
Mounting Type
Built-in
Degree of Protection
IP54
Data Sheet, Technical Information
Product Information (.PDF) [EN] RC/Ax.1
Number of Outputs
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Current Type
AC
Voltage Range
230 V AC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
1380 A
Power Loss
0 W
Color
anthracite
Product Net Width
49 mm
Product Net Height
42 mm
Product Net Depth / Length
93 mm
Product Net Weight
0.141 kg
Dimension Diagram
9AKK108464A0841
E-Number (Finland)
2815134
E-Number (Norway)
4544252
E-Number (Sweden)
1751424
E-Number (Switzerland)
405435005
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) JA/M2.230.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
3ad98577-8882-4329-9b79-c4906f8be400 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) JA/M2.230.1
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
UNSPSC
39121801
Object Classification Code
A
