2CDG110006R0011
Part Number: 2CDG110006R0011
Product Information
Extended Description

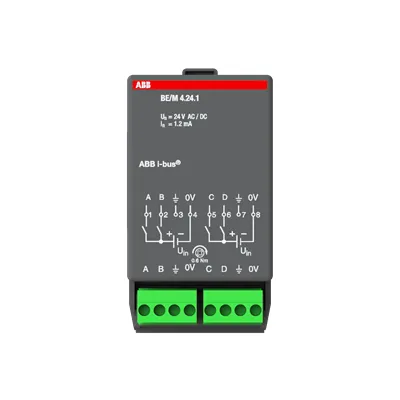

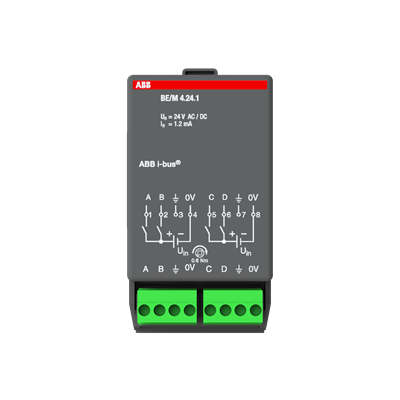

2CDG110006R0011 ABB: Module for plugging into the Room Controller Basis Device. It has 4 inputs for the connection of 12/24 V contacts (AC or DC). The voltage has to be provided externally.
Instructions and Manuals
Installation and Operating Instructions (.PDF) BE/M4.24.1
Installing and Commissioning Manual
Product Manual BE/M4.24.1
Wiring Diagram
9AKK108469A6661
Mounting Type
Built-in
Degree of Protection
IP54
Data Sheet, Technical Information
Product Information (.PDF) [EN] RC/Ax.1
Number of Digital Inputs
4
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
12 ... 24 V AC/DC
Auxiliary Voltage AC/DC
24 V DC
Input Voltage (Uin)
12 ... 24 V
Input Voltage Type
AC/DC
Power Loss
0 W
Color
anthracite
Product Net Width
49 mm
Product Net Height
42 mm
Product Net Depth / Length
93 mm
Product Net Weight
0.108 kg
Dimension Diagram
9AKK108464A0840
E-Number (Finland)
2815112
E-Number (Norway)
4544242
E-Number (Sweden)
1751412
E-Number (Switzerland)
405605105
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) BE/M4.24.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
2CDK514006D0601 | CE & RoHS Declaration of Conformity (.PDF) BE/M4.24.1
ETIM 9
EC000688 - Binary input for bus system
eClass
V11.0 : 27143121
Object Classification Code
A
