2CDG110007R0011
Part Number: 2CDG110007R0011
Product Information
Extended Description

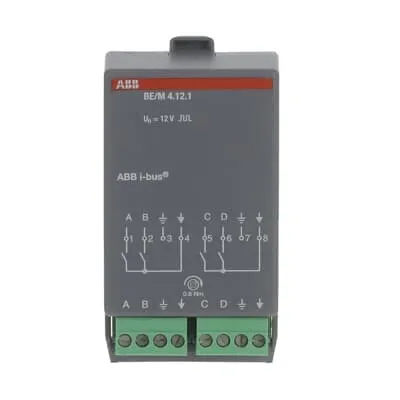

2CDG110007R0011 ABB: Module for plugging into the Room Controller Basis Device.The device has 4 inputs for the connection of floating contacts.
Instructions and Manuals
Installation and Operating Instructions (.PDF) BE/M4.12.1
Installing and Commissioning Manual
Product Manual BE/M4.24.1
Wiring Diagram
9AKK108469A6663
Mounting Type
Built-in
Degree of Protection
IP54
Data Sheet, Technical Information
Product Information (.PDF) [EN] RC/Ax.1
Number of Digital Inputs
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Input Voltage (Uin)
12 V
Input Voltage Type
Pulsed
Power Loss
0 W
Color
anthracite
Product Net Width
49 mm
Product Net Height
42 mm
Product Net Depth / Length
93 mm
Product Net Weight
0.113 kg
Dimension Diagram
9AKK108464A0840
E-Number (Finland)
2815110
E-Number (Norway)
4544243
E-Number (Sweden)
1751414
E-Number (Switzerland)
405605205
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) BE/M4.12.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
282851ee-eb02-423f-a7fe-c4d0089099bb Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
2CDK514007D0601 | CE & RoHS Declaration of Conformity (.PDF) BE/M4.12.1
ETIM 9
EC000688 - Binary input for bus system
eClass
V11.0 : 27143121
Object Classification Code
A
