2CDG110012R0011
Part Number: 2CDG110012R0011
Product Information
Extended Description

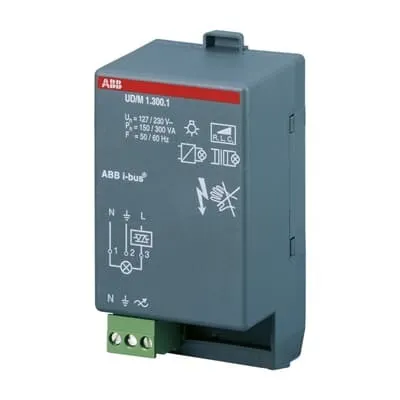

2CDG110012R0011 ABB: Module for plugging into the Room Controller Basis Device. It dims incandescent lamps, 230 V or low halogen lamps with up to 300 W/VA. Automatic load detection. Compensated against ripple-control and voltage fluctuations. Only 2 W minimum load.
Instructions and Manuals
Installation and Operating Instructions UD/M1.300.1
Mounting Type
Built-in
Mounting on DIN Rail
No
Degree of Protection
IP20
Data Sheet, Technical Information
Product Information (.PDF) [EN] RC/Ax.1
Number of Outputs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Rated Operational Voltage
230 V AC
Rated Frequency (f)
50 Hz
Load Type
Universal and LED Retrofit | LEDi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage
Power Loss
0 W
Color
anthracite
Width in Number of Modular Spacings
0.0
Product Net Width
49 mm
Product Net Height
42 mm
Product Net Depth / Length
93 mm
Product Net Weight
0.154 kg
E-Number (Finland)
2815189
E-Number (Sweden)
1751434
E-Number (Switzerland)
405445015
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) UD/M1.300.1
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) UD/M1.300.1
ETIM 9
EC001094 - Dimming actuator for bus system
eClass
V11.0 : 27143123
Object Classification Code
A
