2CDG110025R0011
Part Number: 2CDG110025R0011
Product Information
Extended Description

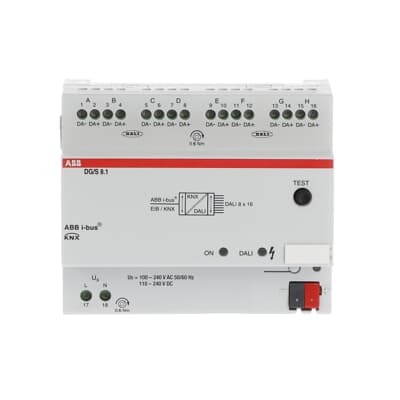

2CDG110025R0011 ABB: Single-Master DALI Controller DALI (EN62386) trademarked. For controlling up to 128 standard DALI devices (DT0) acc. DALI or DALI-2. There are 8 separate, independent DALI outputs/channels available. Up to 16 DALI devices can be connected per channel. The DALI power supply is integrated in the gateway. The functions of switching, dimming, set values and fault indication for lamps and electronic ballasts are available for each output. It is possible to set the lamp burn-in time and 16 light scenes. Commissioning is simplified as no addressing or commissioning of the DALI devices is necessary.
Instructions and Manuals
Installation and Operating Instructions (.PDF) DG/S 8.1
Installing and Commissioning Manual
2CDC507054D0201
Wiring Diagram
2CDC072035F0006
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] DG/S 8.1 | Product Information (.PDF) [EN] DG/S 8.1 | Product Information (.PDF) [EN] DG/S x.x, DGN/S, DLR/S
Communication Interface
DALI
Number of Outputs
8
Number of LEDs
1
Compatible Bus Systems
KNX (TP) | DALI
Product Range
KNX
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
Yes
Number of Batteries
0
Auxiliary Voltage AC/DC
110 ... 230 V AC
Input Voltage (Uin)
230 V AC
Power Loss
6 W
Color
light grey
Width in Number of Modular Spacings
6.0
Product Net Width
108 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.266 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 6MW
E-Number (Finland)
2815120
E-Number (Sweden)
1751084
E-Number (Switzerland)
405661005
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) DG/S 8.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) DG/S 8.1
KNX Certificate
KNX Certificate (.PDF) [EN] DG/S 8.1
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
Object Classification Code
A
