2CDG110026R0011

Part Number: 2CDG110026R0011
2CDG110026R0011
Manufacturer
ABB
Part number
2CDG110026R0011
Category

Product Information

Extended Description

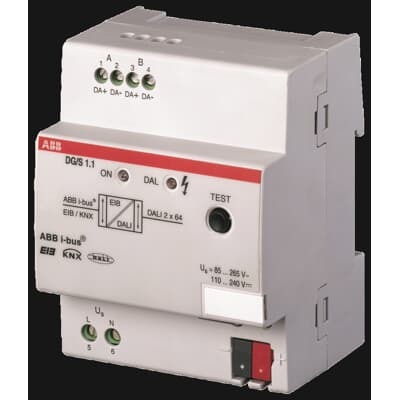

2CDG110026R0011 ABB: DALI Gateway, 1-fold, MDRC For controlling DALI devices (electronic ballasts, transformers etc.) via the ABB i-bus®. Up to 128 DALI devices are individually addressable. 64 DALI slaves can be individually and directly switched, dimmed and brightness level set via KNX. Further functions e.g. lamp faults or lamp ´burn in´ are possible with an individual code addressed control for each slave. Additional 64 slaves (second channel) are controlled in broadcast mode. For an individually change of the DALI address a separate Software-Tool is available.
Instructions and Manuals
Installation and Operating Instructions (.PDF) DG/S 1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] DG/S 1.1 | Product Information (.PDF) [EN] DG/S x.x, DGN/S, DLR/S
Communication Interface
DALI
Number of Outputs
1
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
Yes
Number of Batteries
0
Voltage Range
110 ... 230 V AC
Auxiliary Voltage AC/DC
110 ... 230 V AC
Input Voltage (Uin)
230 V AC
Power Loss
4 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.184 kg
Replacement Product ID (NEW)
2CDG110198R0011
E-Number (Sweden)
1751086
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) DG/S 1.1 | CE & RoHS Declaration of Conformity (.PDF) DG/S 1.1
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
Object Classification Code
A
