2CDG110030R0011
Part Number: 2CDG110030R0011
Product Information
Extended Description

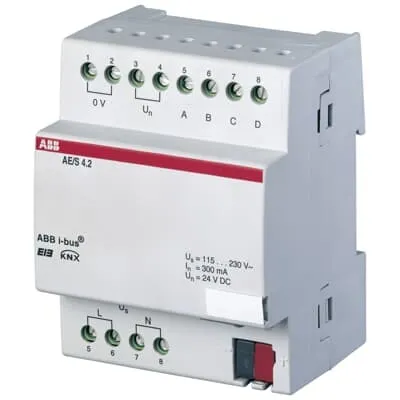

2CDG110030R0011 ABB: The analogue input is used to detect and process 4 independent input signals. E.g. 0-1 V, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA, 0-1000 Ohm, PT 100 in 2-wire technology and floating contacts. Integrated power supply to generate the 24 V DC voltage for external sensors. The device can be operated with a suppy voltage of 115 to 230 V, 50/60 Hz. Maximum 300 mA supplied on the complete voltage range. Application software adjusted for detection and processing of analogue variables.
Instructions and Manuals
Installation and Operating Instructions (.PDF) AE/S4.2
Installing and Commissioning Manual
Product Manual AE/S4.2
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Information (.PDF) [EN] AE/xx.x | Technical Data (.PDF) [EN] AE/S4.2
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Analog Inputs
4
Voltage Range
110 ... 230 V AC
Auxiliary Voltage AC/DC
230 V AC
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
64.5 mm
Product Net Depth / Length
90 mm
Product Net Weight
0.2 kg
RoHS Information
Status on EU RoHS directive
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) AE/S4.2
KNX Certificate
KNX Certificate (.PDF) [EN] AE/S4.2
ETIM 9
EC000794 - Analogue input for bus system
eClass
V11.0 : 27143107
Object Classification Code
A
