2CDG110032R0011
Part Number: 2CDG110032R0011
Product Information
Extended Description

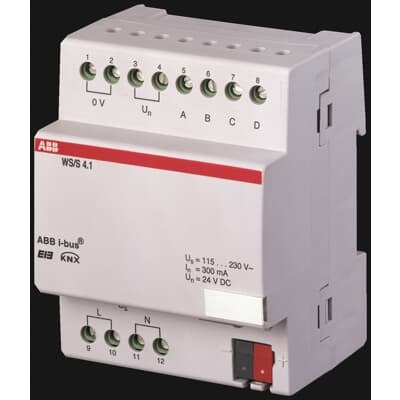

2CDG110032R0011 ABB: The weather station WS/S 4.1 is used to detect and process 4 independent input signals acc. DIN IEC 60381 (0-1 V, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA, 0-1000 Ohm, PT 100 in 2-wire technology and floating contacts). Integrated power supply to generate the 24 V DC voltage for external sensors. The device can be operated with a suppy voltage of 115 to 230 V, 50/60 Hz. Maximum 300 mA supplied on the complete voltage range. Application software adjusted for detection and processing of weather data. All common weather sensors for wind speed, wind direction, rain, amount of rain, brightness, light intensity, twilight, air pressure, humidity or temperature can be connected to the device.
Instructions and Manuals
Installation and Operating Instructions (.PDF) WS/S4.1
Installing and Commissioning Manual
Product Manual WS/S4.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Information (.PDF) [EN] WZ/S, WES/A, WS/S | Technical Data (.PDF) [EN] WS/S4.1
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Analog Inputs
4
Voltage Range
110 ... 230 V AC
Auxiliary Voltage AC/DC
230 V AC
Power Loss
3 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.2 kg
RoHS Information
Status on EU RoHS directive
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) WS/S4.1
ETIM 9
EC000794 - Analogue input for bus system
eClass
V11.0 : 27143107
Object Classification Code
A
