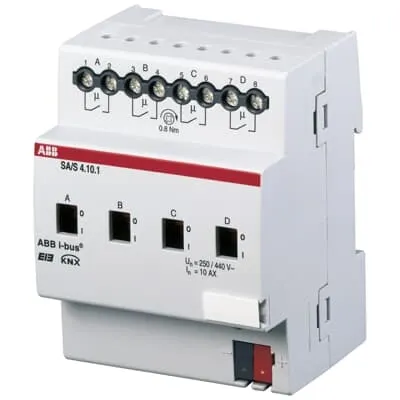

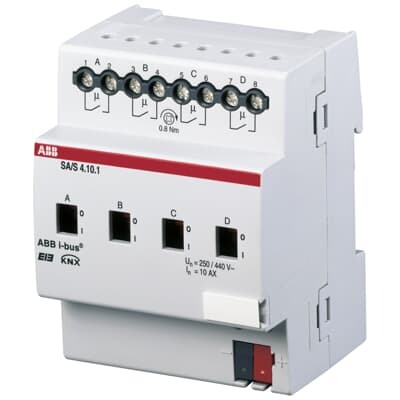

2CDG110040R0011
Part Number: 2CDG110040R0011
Product Information
Extended Description
2CDG110040R0011 ABB: Uses potential free contacts to switch 4 independent electrical loads via the ABB i-bus®. Manual operation and display of the switching state of the contacts. The 10AX-AC1 device is especially suited for loads with high surge currents e.g. flourescent lighting (AX) acc. EN 60669.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SA/Sx.10.1
Installing and Commissioning Manual
Product Manual SA/S8.10.1
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SA/S x.10.1
Sub-Function
4-fold
Sub-Function 2
10 A
Contact Position Indication
ON / OFF
Number of Outputs
4
Number of LEDs
1
Maximum Number of Switching Outputs
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Suitable for C-Load
No
Voltage Range
110 ... 230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Rated Current (In)
10 A
Maximum Switching Current
10 A
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.254 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
RoHS Information
Status on EU RoHS directive
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) SA/S 4.10.1
KNX Certificate
KNX Certificate (.PDF) [EN] SA/S 4.10.1
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
