2CDG110042R0011
Part Number: 2CDG110042R0011
Product Information
Extended Description

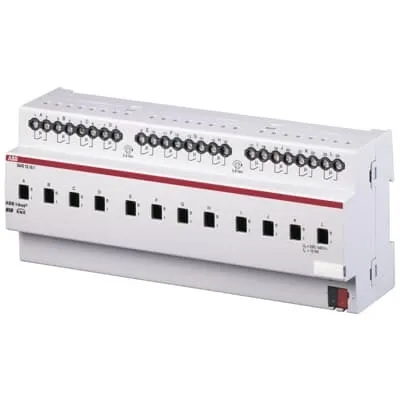

2CDG110042R0011 ABB: Uses potential free contacts to switch 12 independent electrical loads via the ABB i-bus®. Manual operation and display of the switching state of the contacts. The 10AX device is especially suited for loads with high surge currents e.g. flourescent lighting (AX) acc. EN 60669.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SA/Sx.10.1
Installing and Commissioning Manual
Product Manual SA/S8.10.1
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SA/S x.10.1
Sub-Function
12-fold
Sub-Function 2
10 A
Number of Outputs
12
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Voltage Range
110 ... 230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Maximum Switching Current
10 A
Color
light grey
Width in Number of Modular Spacings
12.0
Product Net Width
216 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.672 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 12MW
RoHS Information
Status on EU RoHS directive
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) SA/S 12.10.1
KNX Certificate
KNX Certificate (.PDF) [EN] SA/S 12.10.1
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
