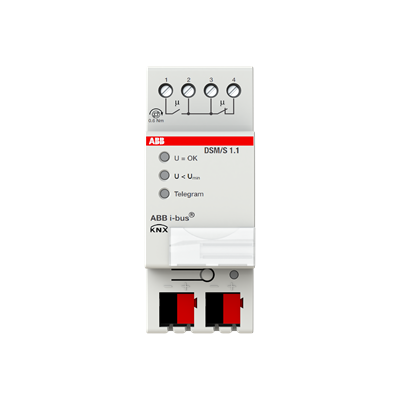

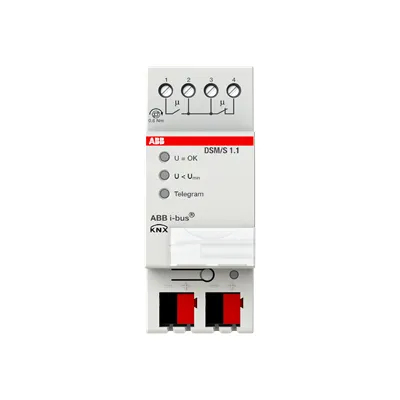

2CDG110060R0011
Part Number: 2CDG110060R0011
Product Information
Extended Description
2CDG110060R0011 ABB: The Diagnosis and Protection Module enables quick diagnostics of the bus state and indicates telegram traffic via an LED. A bus fault (U
Instructions and Manuals
Installation and Operating Instructions (.PDF) DSM/S1.1
Wiring Diagram
Connection diagram (.SVG) [XX] DSM/S 1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] DSM/S1.1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Product Type
Diagnosis and Protection Module
Manual Operation
No
Number of Batteries
0
Power Loss
0.15 W
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.1 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
E-Number (Finland)
2815122
E-Number (Norway)
4544378
E-Number (Sweden)
1750005
E-Number (Switzerland)
405970405
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) DSM/S1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
d27e6d7b-6f01-4cbb-ba3e-059bae9a6de0 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) DSM/S1.1
KNX Certificate
KNX Certificate (.PDF) [EN] DSM/S1.1
ETIM 9
EC001583 - Accessories/spare parts for bus system
eClass
V11.0 : 27143192
UNSPSC
32151802
Object Classification Code
A
